ELETTRA-18: Local ID correction (local/global correction: transport matrix)

# In this example local transport matrix is used to correct ID effects on linear optics
# Only coupling is effectivly reduced, while RMS beta beating (while is reduced) remaind relatively large

# Import

import torch
from torch import Tensor

from pathlib import Path

import matplotlib
from matplotlib import pyplot as plt
from matplotlib.patches import Rectangle
matplotlib.rcParams['text.usetex'] = True

from model.library.element import Element
from model.library.line import Line
from model.library.quadrupole import Quadrupole
from model.library.matrix import Matrix

from model.command.external import load_lattice
from model.command.build import build
from model.command.tune import tune
from model.command.orbit import dispersion
from model.command.twiss import twiss
from model.command.advance import advance
from model.command.coupling import coupling

from model.command.wrapper import Wrapper
from model.command.wrapper import forward
from model.command.wrapper import inverse
from model.command.wrapper import normalize

from model.command.mapping import matrix as transport

# Set data type and device

Element.dtype = dtype = torch.float64
Element.device = device = torch.device('cpu')

# Load lattice (ELEGANT table)
# Note, lattice is allowed to have repeated elements

path = Path('elettra.lte')
data = load_lattice(path)

# Build and setup lattice

ring:Line = build('RING', 'ELEGANT', data)

# Flatten sublines

ring.flatten()

# Remove all marker elements but the ones starting with MLL (long straight section centers)

ring.remove_group(pattern=r'^(?!MLL_).*', kinds=['Marker'])

# Replace all sextupoles with quadrupoles

def factory(element:Element) -> None:
    table = element.serialize
    table.pop('ms', None)
    return Quadrupole(**table)

ring.replace_group(pattern=r'', factory=factory, kinds=['Sextupole'])

# Set linear dipoles

def apply(element:Element) -> None:
    element.linear = True

ring.apply(apply, kinds=['Dipole'])

# Merge drifts

ring.merge()

# Change lattice start

ring.start = "BPM_S01_01"

# Split BPMs

ring.split((None, ['BPM'], None, None))

# Roll lattice

ring.roll(1)

# Splice lattice

ring.splice()

# Describe

ring.describe

{'BPM': 168, 'Drift': 708, 'Dipole': 156, 'Quadrupole': 360, 'Marker': 12}

# Compute tunes (fractional part)

nux, nuy = tune(ring, [], matched=True, limit=1)

# Compute dispersion

orbit = torch.tensor(4*[0.0], dtype=dtype)
etaqx, etapx, etaqy, etapy = dispersion(ring, orbit, [], limit=1)

# Compute twiss parameters

ax, bx, ay, by = twiss(ring, [], matched=True, advance=True, full=False).T

# Compute phase advances

mux, muy = advance(ring, [], alignment=False, matched=True).T

# Compute coupling

c = coupling(ring, [])

# Quadrupole names for global tune correction

QF = [f'QF_S{i:02}_{j:02}' for j in [2, 3] for i in range(1, 12 + 1)]
QD = [f'QD_S{i:02}_{j:02}' for j in [2, 3] for i in range(1, 12 + 1)]

# Global tune responce matrix

def global_observable(knobs):
    kf, kd = knobs
    kn = torch.stack(len(QF)*[kf] + len(QD)*[kd])
    return tune(ring, [kn], ('kn', None, QF + QD, None), matched=True, limit=1)

knobs = torch.tensor([0.0, 0.0], dtype=dtype)
global_target = global_observable(knobs)
global_matrix = torch.func.jacfwd(global_observable)(knobs)

print(global_target)
print(global_matrix)

tensor([0.2994, 0.1608], dtype=torch.float64)
tensor([[ 5.8543,  2.0964],
        [-2.9918, -1.2602]], dtype=torch.float64)

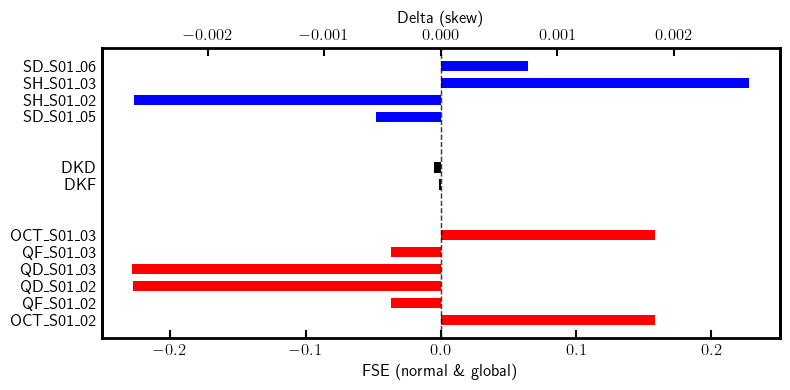

# Several local knobs can be used to correct ID effects

# Normal quadrupole correctors

nkn = ['OCT_S01_02', 'QF_S01_02', 'QD_S01_02', 'QD_S01_03', 'QF_S01_03', 'OCT_S01_03']

# Skew quadrupole correctors

nks = ['SD_S01_05', 'SH_S01_02', 'SH_S01_03', 'SD_S01_06']

# Set section between BPMs

line = ring.clone()
line.flatten()

line = Line('LOCAL', sequence=line['BPM_S01_05':'BPM_S01_10'])

# Test all local knobs are in the section

print([name in line.names for name in nkn])
print([name in line.names for name in nks])

[True, True, True, True, True, True]
[True, True, True, True]

# Define matrix observable

def observable_matrix(kn, ks):
    zero = torch.tensor(4*[0.0], dtype=dtype)
    ring.flatten()
    transformation, _ = transport(ring, 'BPM_S01_05', 'BPM_S01_10', ('kn', None, nkn, None), ('ks', None, nks, None), matched=False)
    data = transformation(zero, kn, ks)
    ring.splice()
    return data

def observable_matrix_dp(kn, ks):
    zero = torch.tensor(4*[0.0], dtype=dtype)
    ring.flatten()
    transformation, _ = transport(ring, 'BPM_S01_05', 'BPM_S01_10', ('dp', None, None, None), ('kn', None, nkn, None), ('ks', None, nks, None), matched=False)
    dp = torch.tensor(1*[0.0], dtype=dtype)
    data = torch.func.jacrev(transformation, 1)(zero, dp, kn, ks)
    ring.splice()
    return data.squeeze()

# Compare transport matrices

state = torch.tensor(4*[0.0], dtype=dtype)
print(torch.func.jacrev(line)(state))
print()

knobs = torch.tensor((6 + 4)*[0.0], dtype=dtype)
kn, ks = torch.split(knobs, [6, 4])
print(observable_matrix(kn, ks))
print()

tensor([[ 1.0103,  0.0840,  0.0000,  0.0000],
        [ 0.2465,  1.0103,  0.0000,  0.0000],
        [ 0.0000,  0.0000, -1.2595,  3.3426],
        [ 0.0000,  0.0000,  0.1754, -1.2595]], dtype=torch.float64)

tensor([[ 1.0103,  0.0840,  0.0000,  0.0000],
        [ 0.2465,  1.0103,  0.0000,  0.0000],
        [ 0.0000,  0.0000, -1.2595,  3.3426],
        [ 0.0000,  0.0000,  0.1754, -1.2595]], dtype=torch.float64)

# Construct full target observable vector and corresponding responce matrix

def observable(knobs):
    kn, ks = torch.split(knobs, [6, 4])
    data = observable_matrix(kn, ks).flatten()
    data_dp = observable_matrix(kn, ks).flatten()
    return torch.cat([data, data_dp])

knobs = torch.tensor((6 + 4)*[0.0], dtype=dtype)

print((target := observable(knobs)).shape)
print((matrix := torch.func.jacfwd(observable)(knobs)).shape)
print(torch.linalg.matrix_rank(matrix))

torch.Size([32])
torch.Size([32, 10])
tensor(9)

# Define ID model
# Note, only the flattened triangular part of the A and B matrices is passed

A = torch.tensor([[-0.03484222052711237, 1.0272120741819959E-7, -4.698931299341201E-9, 0.0015923185492594811],
                  [1.0272120579834892E-7, -0.046082787920135176, 0.0017792061173117564, 3.3551298301095784E-8],
                  [-4.6989312853101E-9, 0.0017792061173117072, 0.056853750760983084, -1.5929605363332683E-7],
                  [0.0015923185492594336, 3.3551298348653296E-8, -1.5929605261642905E-7, 0.08311631737263032]], dtype=dtype)

B = torch.tensor([[0.03649353186115209, 0.0015448347221877217, 0.00002719892025520868, -0.0033681183134964482],
                  [0.0015448347221877217, 0.13683886657005795, -0.0033198692682377406, 0.00006140578258682469],
                  [0.00002719892025520868, -0.0033198692682377406, -0.05260095308967722, 0.005019907688182885],
                  [-0.0033681183134964482, 0.00006140578258682469, 0.005019907688182885, -0.2531573249456863]], dtype=dtype)

ID = Matrix('ID',
            length=0.0,
            A=A[torch.triu(torch.ones_like(A, dtype=torch.bool))].tolist(),
            B=B[torch.triu(torch.ones_like(B, dtype=torch.bool))].tolist())

# Insert ID into the existing lattice
# This will replace the target marker

error = ring.clone()
error.flatten()
error.insert(ID, 'MLL_S01', position=0.0)
error.splice()

# Describe

error.describe

{'BPM': 168,
 'Drift': 708,
 'Dipole': 156,
 'Quadrupole': 360,
 'Matrix': 1,
 'Marker': 11}

# Compute tunes (fractional part)

nux_id, nuy_id = tune(error, [], matched=True, limit=1)

# Compute dispersion

orbit = torch.tensor(4*[0.0], dtype=dtype)
etaqx_id, etapx_id, etaqy_id, etapy_id = dispersion(error, orbit, [], limit=1)

# Compute twiss parameters

ax_id, bx_id, ay_id, by_id = twiss(error, [], matched=True, advance=True, full=False).T

# Compute phase advances

mux_id, muy_id = advance(error, [], alignment=False, matched=True).T

# Compute coupling

c_id = coupling(error, [])

# Tune shifts

print((nux - nux_id))
print((nuy - nuy_id))

tensor(0.0260, dtype=torch.float64)
tensor(-0.0114, dtype=torch.float64)

# Coupling (minimal tune distance)

print(c)
print(c_id)

tensor(0., dtype=torch.float64)
tensor(0.0004, dtype=torch.float64)

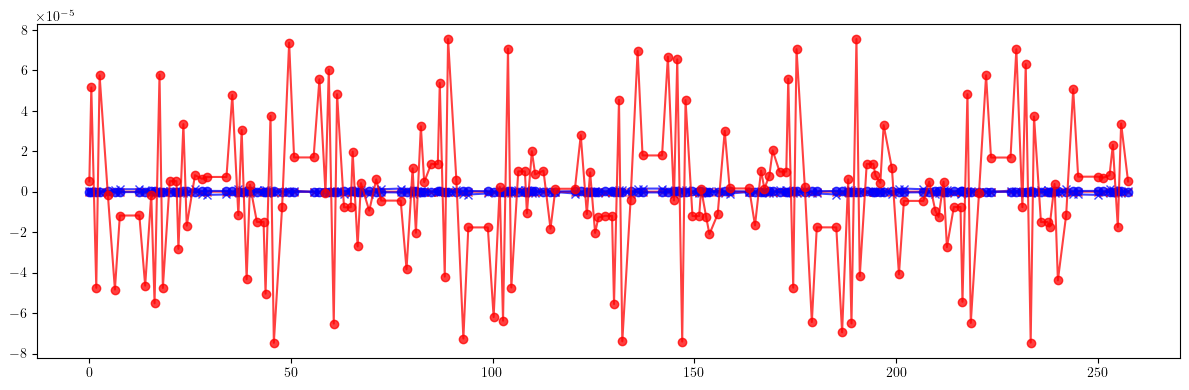

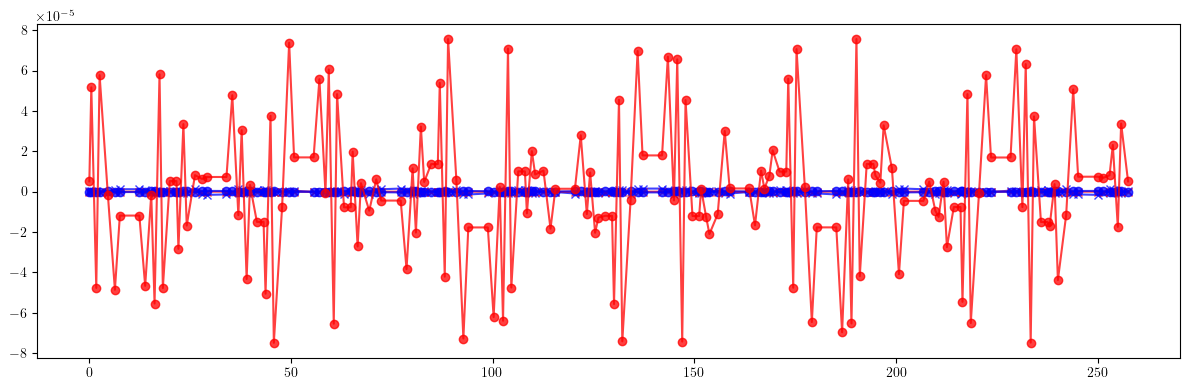

# Dispersion

plt.figure(figsize=(12, 4))
plt.errorbar(ring.locations().cpu().numpy(), (etaqx - etaqx_id).cpu().numpy(), fmt='-', marker='x', color='blue', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), (etaqy - etaqy_id).cpu().numpy(), fmt='-', marker='x', color='red', alpha=0.75)
plt.tight_layout()
plt.show()

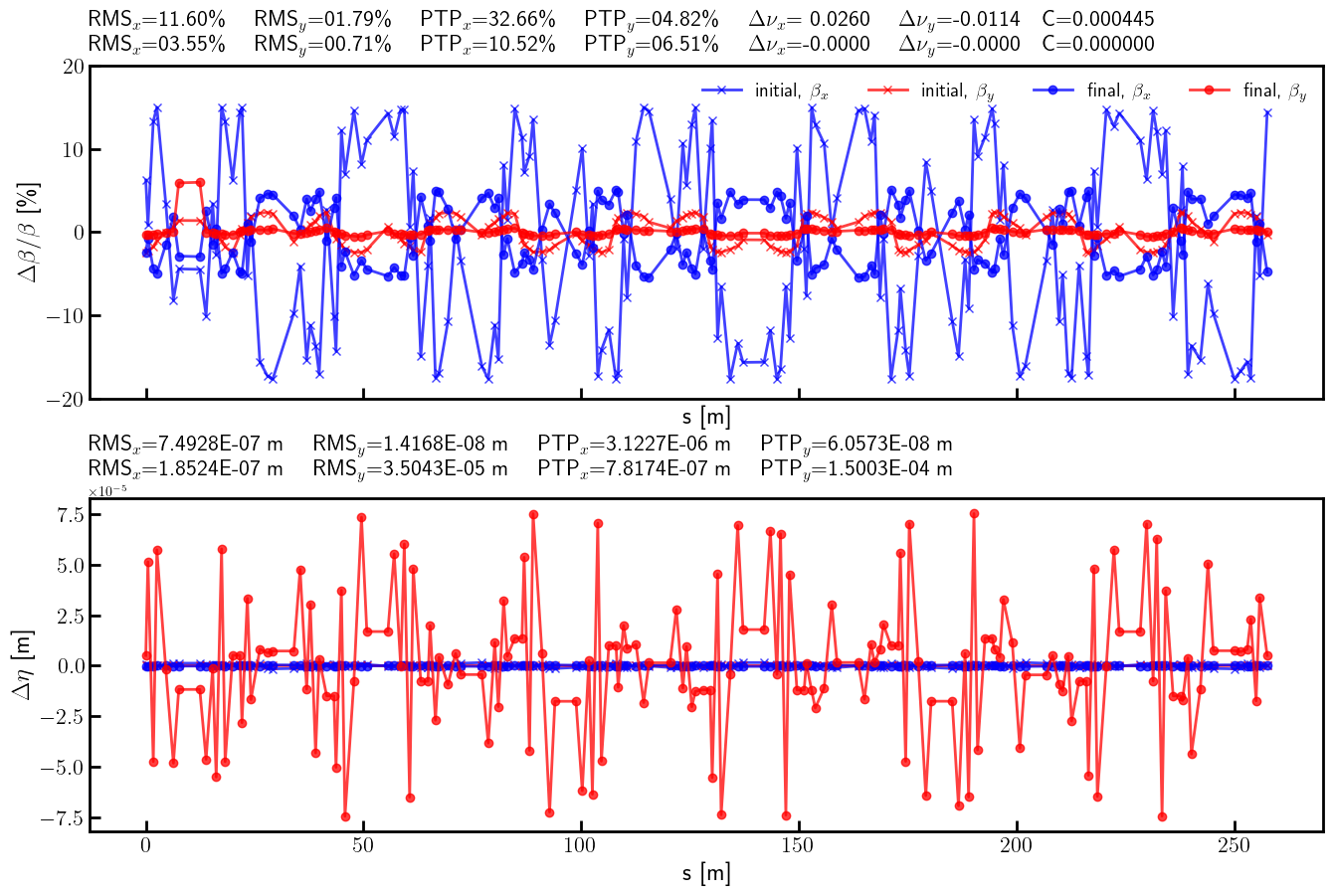

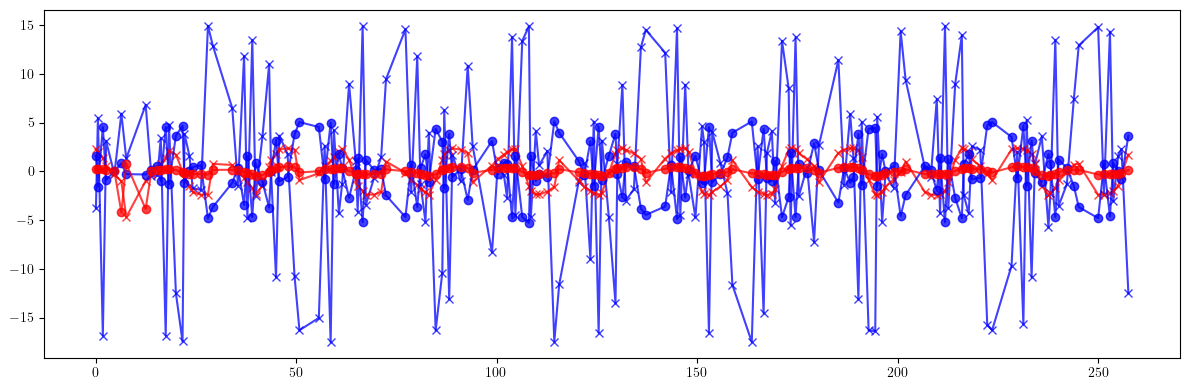

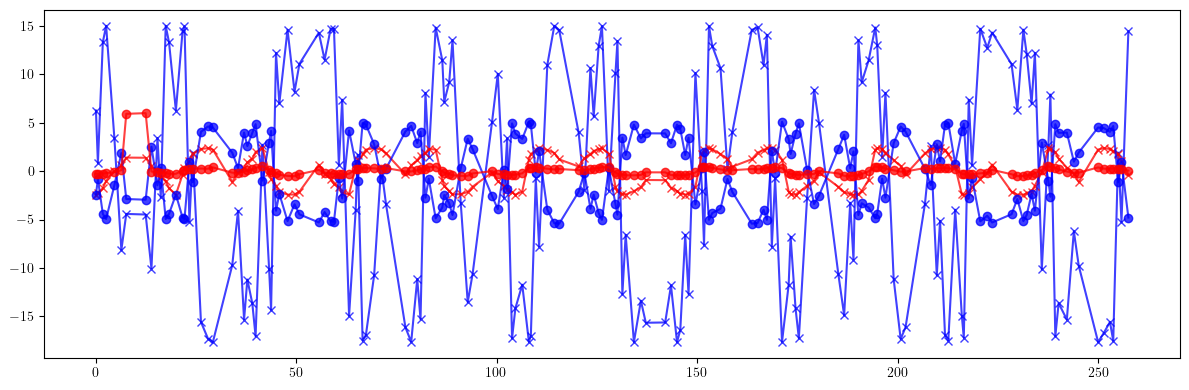

# Beta-beating

plt.figure(figsize=(12, 4))
plt.errorbar(ring.locations().cpu().numpy(), 100*((bx - bx_id)/bx).cpu().numpy(), fmt='-', marker='x', color='blue', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), 100*((by - by_id)/by).cpu().numpy(), fmt='-', marker='x', color='red', alpha=0.75)
plt.tight_layout()
plt.show()

print(100*(((bx - bx_id)/bx)**2).mean().sqrt())
print(100*(((by - by_id)/by)**2).mean().sqrt())

tensor(11.5994, dtype=torch.float64)
tensor(1.7916, dtype=torch.float64)

# Phase advance

plt.figure(figsize=(12, 4))
plt.errorbar(ring.locations().cpu().numpy(), 100*((mux - mux_id)/mux).cpu().numpy(), fmt='-', marker='x', color='blue', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), 100*((muy - muy_id)/muy).cpu().numpy(), fmt='-', marker='x', color='red', alpha=0.75)
plt.tight_layout()
plt.show()

print(100*(((mux - mux_id)/mux)**2).mean().sqrt())
print(100*(((muy - muy_id)/muy)**2).mean().sqrt())

tensor(8.7941, dtype=torch.float64)
tensor(1.7778, dtype=torch.float64)

# Define parametric observable vector (emulate tune measurement)

def global_observable(knobs):
    kf, kd = knobs
    kn = torch.stack(len(QF)*[kf] + len(QD)*[kd])
    return tune(error, [kn], ('kn', None, QF + QD, None), matched=True, limit=1)

def observable_matrix(kn, ks):
    orbit = torch.tensor(4*[0.0], dtype=dtype)
    error.flatten()
    transformation, _ = transport(error, 'BPM_S01_05', 'BPM_S01_10', ('kn', None, nkn, None), ('ks', None, nks, None), matched=False, root=False)
    data = transformation(orbit, kn, ks)
    error.splice()
    return data

def observable_matrix_dp(kn, ks):
    zero = torch.tensor(4*[0.0], dtype=dtype)
    error.flatten()
    transformation, _ = transport(error, 'BPM_S01_05', 'BPM_S01_10', ('dp', None, None, None), ('kn', None, nkn, None), ('ks', None, nks, None), matched=False)
    dp = torch.tensor(1*[0.0], dtype=dtype)
    data = torch.func.jacrev(transformation, 1)(zero, dp, kn, ks)
    error.splice()
    return data.squeeze()


def observable(knobs):
    kn, ks = torch.split(knobs, [6, 4])
    data = observable_matrix(kn, ks).flatten()
    data_dp = observable_matrix(kn, ks).flatten()
    return torch.cat([data, data_dp])

# Compare transport matrices

state = torch.tensor(4*[0.0], dtype=dtype)
print(torch.func.jacrev(line)(state))
print()

knobs = torch.tensor((6 + 4)*[0.0], dtype=dtype)
kn, ks = torch.split(knobs, [6, 4])
print(observable_matrix(kn, ks))
print()

tensor([[ 1.0103,  0.0840,  0.0000,  0.0000],
        [ 0.2465,  1.0103,  0.0000,  0.0000],
        [ 0.0000,  0.0000, -1.2595,  3.3426],
        [ 0.0000,  0.0000,  0.1754, -1.2595]], dtype=torch.float64)

tensor([[ 1.0087e+00,  5.7278e-02,  3.2323e-04, -4.1777e-03],
        [ 3.0644e-01,  1.0087e+00, -7.0234e-04,  3.1327e-04],
        [-3.1331e-04,  4.1777e-03, -1.2314e+00,  2.8220e+00],
        [ 7.0234e-04, -3.2321e-04,  1.8294e-01, -1.2314e+00]],
       dtype=torch.float64)

# Check the residual vector norm

global_knobs = torch.tensor(2*[0.0], dtype=dtype)
knobs = torch.tensor((6 + 4)*[0.0], dtype=dtype)

print(((global_observable(global_knobs) - global_target)**2).sum())
print(((observable(knobs) - target)**2).sum())

tensor(0.0008, dtype=torch.float64)
tensor(0.5538, dtype=torch.float64)

# Optimization loop (local)

# Responce matrix (jacobian)

M = matrix.clone()

# Weighting covariance (sensitivity) matrix

epsilon = 1.0E-9
C = M @ M.T
C = C + epsilon*torch.eye(len(C), dtype=dtype)

# Cholesky decomposition

L = torch.linalg.cholesky(C)

# Whiten response

M = torch.linalg.solve_triangular(L, M, upper=False)

# Additional weights
# Can be used to extra weight selected observables, e.g. tunes

weights = torch.ones(len(M), dtype=dtype)
weights = weights.sqrt()

# Whiten response with additional weights

M = M*weights.unsqueeze(1)

# Iterative correction

lr = 0.75

# Initial value

knobs = torch.tensor((6 + 4)*[0.0], dtype=dtype)

# Regularizaton

factor = 0.01

# Normal matrix

N = M.T @ M

# Regularized system

R = N + factor**2*torch.eye(len(N), dtype=dtype)

# Correction loop

for _ in range(8):
    value = observable(knobs)
    residual = target - value
    residual = torch.linalg.solve_triangular(L, residual.unsqueeze(-1), upper=False).squeeze(-1)
    residual = residual*weights
    delta = torch.linalg.lstsq(R, M.T @ residual, driver="gels").solution
    knobs += lr*delta
    print(((value - target)**2).sum())
print()

tensor(0.5538, dtype=torch.float64)
tensor(0.0541, dtype=torch.float64)
tensor(0.0060, dtype=torch.float64)
tensor(0.0012, dtype=torch.float64)
tensor(0.0007, dtype=torch.float64)
tensor(0.0007, dtype=torch.float64)
tensor(0.0007, dtype=torch.float64)
tensor(0.0007, dtype=torch.float64)

# Compare transport matrices

state = torch.tensor(4*[0.0], dtype=dtype)
print(torch.func.jacrev(line)(state))
print()

kn, ks = torch.split(0.0*knobs, [6, 4])
print(observable_matrix(kn, ks))
print()

kn, ks = torch.split(1.0*knobs, [6, 4])
print(observable_matrix(kn, ks))
print()

tensor([[ 1.0103,  0.0840,  0.0000,  0.0000],
        [ 0.2465,  1.0103,  0.0000,  0.0000],
        [ 0.0000,  0.0000, -1.2595,  3.3426],
        [ 0.0000,  0.0000,  0.1754, -1.2595]], dtype=torch.float64)

tensor([[ 1.0087e+00,  5.7278e-02,  3.2323e-04, -4.1777e-03],
        [ 3.0644e-01,  1.0087e+00, -7.0234e-04,  3.1327e-04],
        [-3.1331e-04,  4.1777e-03, -1.2314e+00,  2.8220e+00],
        [ 7.0234e-04, -3.2321e-04,  1.8294e-01, -1.2314e+00]],
       dtype=torch.float64)

tensor([[ 1.0091e+00,  7.9764e-02,  1.1510e-08, -1.2080e-07],
        [ 2.2929e-01,  1.0091e+00, -7.1166e-08,  1.0090e-07],
        [-8.5901e-08,  1.0560e-07, -1.2571e+00,  3.3405e+00],
        [ 7.1096e-08, -8.3824e-10,  1.7373e-01, -1.2571e+00]],
       dtype=torch.float64)

# Apply final corrections

kn, ks = torch.split(knobs, [6, 4])

error.flatten()

for name, knob in zip(nkn, kn):
    error[name].kn = (error[name].kn + knob).item()

for name, knob in zip(nks, ks):
    error[name].ks = (error[name].ks + knob).item()

error.splice()

# Compute tunes (fractional part)

nux_result, nuy_result = tune(error, [], matched=True, limit=1)

# Compute dispersion

orbit = torch.tensor(4*[0.0], dtype=dtype)
etaqx_result, etapx_result, etaqy_result, etapy_result = dispersion(error, orbit, [], limit=1)

# Compute twiss parameters

ax_result, bx_result, ay_result, by_result = twiss(error, [], matched=True, advance=True, full=False).T

# Compute phase advances

mux_result, muy_result = advance(error, [], alignment=False, matched=True).T

# Compute coupling

c_result = coupling(error, [])

# Tune shifts

print((nux - nux_id).abs())
print((nuy - nuy_id).abs())
print()

print((nux - nux_result).abs())
print((nuy - nuy_result).abs())
print()

tensor(0.0260, dtype=torch.float64)
tensor(0.0114, dtype=torch.float64)

tensor(0.0074, dtype=torch.float64)
tensor(0.0006, dtype=torch.float64)

# Coupling (minimal tune distance)

print(c)
print(c_id)
print(c_result)

tensor(0., dtype=torch.float64)
tensor(0.0004, dtype=torch.float64)
tensor(5.2284e-08, dtype=torch.float64)

# Dispersion

plt.figure(figsize=(12, 4))
plt.errorbar(ring.locations().cpu().numpy(), (etaqx - etaqx_id).cpu().numpy(), fmt='-', marker='x', color='blue', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), (etaqy - etaqy_id).cpu().numpy(), fmt='-', marker='x', color='red', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), (etaqx - etaqx_result).cpu().numpy(), fmt='-', marker='o', color='blue', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), (etaqy - etaqy_result).cpu().numpy(), fmt='-', marker='o', color='red', alpha=0.75)

plt.tight_layout()
plt.show()

# Beta-beating

plt.figure(figsize=(12, 4))
plt.errorbar(ring.locations().cpu().numpy(), 100*((bx - bx_id)/bx).cpu().numpy(), fmt='-', marker='x', color='blue', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), 100*((by - by_id)/by).cpu().numpy(), fmt='-', marker='x', color='red', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), 100*((bx - bx_result)/bx).cpu().numpy(), fmt='-', marker='o', color='blue', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), 100*((by - by_result)/by).cpu().numpy(), fmt='-', marker='o', color='red', alpha=0.75)
plt.tight_layout()
plt.show()

print(100*(((bx - bx_id)/bx)**2).mean().sqrt())
print(100*(((by - by_id)/by)**2).mean().sqrt())
print()

print(100*(((bx - bx_result)/bx)**2).mean().sqrt())
print(100*(((by - by_result)/by)**2).mean().sqrt())
print()

tensor(11.5994, dtype=torch.float64)
tensor(1.7916, dtype=torch.float64)

tensor(3.5522, dtype=torch.float64)
tensor(0.7223, dtype=torch.float64)

# Phase advance

plt.figure(figsize=(12, 4))
plt.errorbar(ring.locations().cpu().numpy(), 100*((mux - mux_id)/mux).cpu().numpy(), fmt='-', marker='x', color='blue', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), 100*((muy - muy_id)/muy).cpu().numpy(), fmt='-', marker='x', color='red', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), 100*((mux - mux_result)/mux).cpu().numpy(), fmt='-', marker='o', color='blue', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), 100*((muy - muy_result)/muy).cpu().numpy(), fmt='-', marker='o', color='red', alpha=0.75)
plt.tight_layout()
plt.show()

print(100*(((mux - mux_id)/mux)**2).mean().sqrt())
print(100*(((muy - muy_id)/muy)**2).mean().sqrt())
print()

print(100*(((mux - mux_result)/mux)**2).mean().sqrt())
print(100*(((muy - muy_result)/muy)**2).mean().sqrt())
print()

tensor(8.7941, dtype=torch.float64)
tensor(1.7778, dtype=torch.float64)

tensor(2.6977, dtype=torch.float64)
tensor(0.5477, dtype=torch.float64)

# Optimization loop (global)

# Responce matrix (jacobian)

M = global_matrix.clone()

# Weighting covariance (sensitivity) matrix

epsilon = 1.0E-9
C = M @ M.T
C = C + epsilon*torch.eye(len(C), dtype=dtype)

# Cholesky decomposition

L = torch.linalg.cholesky(C)

# Whiten response

M = torch.linalg.solve_triangular(L, M, upper=False)

# Additional weights
# Can be used to extra weight selected observables, e.g. tunes

weights = torch.ones(len(M), dtype=dtype)
weights = weights.sqrt()

# Whiten response with additional weights

M = M*weights.unsqueeze(1)

# Iterative correction

lr = 0.75

# Initial value

global_knobs = torch.tensor(2*[0.0], dtype=dtype)

# Correction loop

for _ in range(4):
    value = global_observable(global_knobs)
    residual = global_target - value
    residual = torch.linalg.solve_triangular(L, residual.unsqueeze(-1), upper=False).squeeze(-1)
    residual = residual*weights
    delta = torch.linalg.lstsq(M, residual, driver="gels").solution
    global_knobs += lr*delta
    print(((value - global_target)**2).sum())
print()

tensor(5.5336e-05, dtype=torch.float64)
tensor(3.8781e-06, dtype=torch.float64)
tensor(2.7991e-07, dtype=torch.float64)
tensor(2.0730e-08, dtype=torch.float64)

# Apply final corrections

kd, kf = global_knobs

error.flatten()

for name in QF:
    error[name].kn = (error[name].kn + kd).item()

for name in QD:
    error[name].kn = (error[name].kn + kf).item()

error.splice()

# Compute tunes (fractional part)

nux_result, nuy_result = tune(error, [], matched=True, limit=1)

# Compute dispersion

orbit = torch.tensor(4*[0.0], dtype=dtype)
etaqx_result, etapx_result, etaqy_result, etapy_result = dispersion(error, orbit, [], limit=1)

# Compute twiss parameters

ax_result, bx_result, ay_result, by_result = twiss(error, [], matched=True, advance=True, full=False).T

# Compute phase advances

mux_result, muy_result = advance(error, [], alignment=False, matched=True).T

# Compute coupling

c_result = coupling(error, [])

# Tune shifts

print((nux - nux_id).abs())
print((nuy - nuy_id).abs())
print()

print((nux - nux_result).abs())
print((nuy - nuy_result).abs())
print()

tensor(0.0260, dtype=torch.float64)
tensor(0.0114, dtype=torch.float64)

tensor(3.9377e-05, dtype=torch.float64)
tensor(4.7384e-06, dtype=torch.float64)

# Coupling (minimal tune distance)

print(c)
print(c_id)
print(c_result)

tensor(0., dtype=torch.float64)
tensor(0.0004, dtype=torch.float64)
tensor(5.8041e-08, dtype=torch.float64)

# Dispersion

plt.figure(figsize=(12, 4))
plt.errorbar(ring.locations().cpu().numpy(), (etaqx - etaqx_id).cpu().numpy(), fmt='-', marker='x', color='blue', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), (etaqy - etaqy_id).cpu().numpy(), fmt='-', marker='x', color='red', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), (etaqx - etaqx_result).cpu().numpy(), fmt='-', marker='o', color='blue', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), (etaqy - etaqy_result).cpu().numpy(), fmt='-', marker='o', color='red', alpha=0.75)

plt.tight_layout()
plt.show()

# Beta-beating

plt.figure(figsize=(12, 4))
plt.errorbar(ring.locations().cpu().numpy(), 100*((bx - bx_id)/bx).cpu().numpy(), fmt='-', marker='x', color='blue', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), 100*((by - by_id)/by).cpu().numpy(), fmt='-', marker='x', color='red', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), 100*((bx - bx_result)/bx).cpu().numpy(), fmt='-', marker='o', color='blue', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), 100*((by - by_result)/by).cpu().numpy(), fmt='-', marker='o', color='red', alpha=0.75)
plt.tight_layout()
plt.show()

print(100*(((bx - bx_id)/bx)**2).mean().sqrt())
print(100*(((by - by_id)/by)**2).mean().sqrt())
print()

print(100*(((bx - bx_result)/bx)**2).mean().sqrt())
print(100*(((by - by_result)/by)**2).mean().sqrt())
print()

tensor(11.5994, dtype=torch.float64)
tensor(1.7916, dtype=torch.float64)

tensor(3.5506, dtype=torch.float64)
tensor(0.7139, dtype=torch.float64)

# Phase advance

plt.figure(figsize=(12, 4))
plt.errorbar(ring.locations().cpu().numpy(), 100*((mux - mux_id)/mux).cpu().numpy(), fmt='-', marker='x', color='blue', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), 100*((muy - muy_id)/muy).cpu().numpy(), fmt='-', marker='x', color='red', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), 100*((mux - mux_result)/mux).cpu().numpy(), fmt='-', marker='o', color='blue', alpha=0.75)
plt.errorbar(ring.locations().cpu().numpy(), 100*((muy - muy_result)/muy).cpu().numpy(), fmt='-', marker='o', color='red', alpha=0.75)
plt.tight_layout()
plt.show()

print(100*(((mux - mux_id)/mux)**2).mean().sqrt())
print(100*(((muy - muy_id)/muy)**2).mean().sqrt())
print()

print(100*(((mux - mux_result)/mux)**2).mean().sqrt())
print(100*(((muy - muy_result)/muy)**2).mean().sqrt())
print()

tensor(8.7941, dtype=torch.float64)
tensor(1.7778, dtype=torch.float64)

tensor(2.6927, dtype=torch.float64)
tensor(0.5302, dtype=torch.float64)
