ELETTRA-46: EU100 (symmetric: twiss, orm and advance)
twiss (local & global)
[1]:
# Import
import torch
from torch import Tensor
from pathlib import Path
import matplotlib
from matplotlib import pyplot as plt
from matplotlib.patches import Rectangle
matplotlib.rcParams['text.usetex'] = True
from model.library.element import Element
from model.library.line import Line
from model.library.quadrupole import Quadrupole
from model.library.matrix import Matrix
from model.command.external import load_lattice
from model.command.build import build
from model.command.tune import tune
from model.command.tune import chromaticity
from model.command.orbit import dispersion
from model.command.twiss import twiss
from model.command.advance import advance
from model.command.coupling import coupling
from model.command.wrapper import Wrapper
from model.command.wrapper import forward
from model.command.wrapper import inverse
from model.command.wrapper import normalize
[2]:
# Set data type and device
Element.dtype = dtype = torch.float64
Element.device = device = torch.device('cpu')
[3]:
# Load lattice (ELEGANT table)
# Note, lattice is allowed to have repeated elements
path = Path('elettra.lte')
data = load_lattice(path)
[4]:
# Build and setup lattice
ring:Line = build('RING', 'ELEGANT', data)
# Flatten sublines
ring.flatten()
# Remove all marker elements but the ones starting with MLL (long straight section centers)
ring.remove_group(pattern=r'^(?!MLL_).*', kinds=['Marker'])
# Replace all sextupoles with quadrupoles
def factory(element:Element) -> None:
table = element.serialize
table.pop('ms', None)
return Quadrupole(**table)
ring.replace_group(pattern=r'', factory=factory, kinds=['Sextupole'])
# Set linear dipoles
def apply(element:Element) -> None:
element.linear = True
ring.apply(apply, kinds=['Dipole'])
# Merge drifts
ring.merge()
# Change lattice start
ring.start = "BPM_S01_01"
# Split BPMs
ring.split((None, ['BPM'], None, None))
# Roll lattice
ring.roll(1)
# Splice lattice
ring.splice()
# Describe
ring.describe
[4]:
{'BPM': 168, 'Drift': 708, 'Dipole': 156, 'Quadrupole': 360, 'Marker': 12}
[5]:
# Compute tunes (fractional part)
nux, nuy = tune(ring, [], matched=True, limit=1)
[6]:
# Compute dispersion
orbit = torch.tensor(4*[0.0], dtype=dtype)
etaqx, etapx, etaqy, etapy = dispersion(ring, orbit, [], limit=1)
[7]:
# Compute twiss parameters
ax, bx, ay, by = twiss(ring, [], matched=True, advance=True, full=False).T
[8]:
# Compute phase advances
mux, muy = advance(ring, [], alignment=False, matched=True).T
[9]:
# Compute coupling
c = coupling(ring, [])
[10]:
# Compute chromaticity
psi = chromaticity(ring, [])
[11]:
# Quadrupole names for global tune correction
QF = [f'QF_S{i:02}_{j:02}' for j in [2, 3] for i in range(1, 12 + 1)]
QD = [f'QD_S{i:02}_{j:02}' for j in [2, 3] for i in range(1, 12 + 1)]
[12]:
# Global tune responce matrix
def global_observable(knobs):
kf, kd = knobs
kn = torch.stack(len(QF)*[kf] + len(QD)*[kd])
return tune(ring, [kn], ('kn', None, QF + QD, None), matched=True, limit=1)
knobs = torch.tensor([0.0, 0.0], dtype=dtype)
global_target = global_observable(knobs)
global_matrix = torch.func.jacfwd(global_observable)(knobs)
print(global_target)
print(global_matrix)
tensor([0.2994, 0.1608], dtype=torch.float64)
tensor([[ 5.8543, 2.0964],
[-2.9918, -1.2602]], dtype=torch.float64)
[13]:
# Several local knobs can be used to correct ID effects
# Normal quadrupole correctors
nkn = ['OCT_S01_02', 'QF_S01_02', 'QD_S01_02', 'QD_S01_03', 'QF_S01_03', 'OCT_S01_03']
# Skew quadrupole correctors
nks = ['SD_S01_05', 'SH_S01_02', 'SH_S01_03', 'SD_S01_06']
[14]:
# Define knobs to magnets mixing matrices
Sn = torch.tensor([[1.0, 0.0, 0.0], [0.0, 1.0, 0.0], [0.0, 0.0, 1.0], [0.0, 0.0, 1.0], [0.0, 1.0, 0.0], [1.0, 0.0, 0.0]], dtype=dtype)
print(Sn)
print()
Ss = torch.tensor([[+1.0, 0.0], [0.0, +1.0], [0.0, -1.0], [-1.0, 0.0]], dtype=dtype)
print(Ss)
print()
tensor([[1., 0., 0.],
[0., 1., 0.],
[0., 0., 1.],
[0., 0., 1.],
[0., 1., 0.],
[1., 0., 0.]], dtype=torch.float64)
tensor([[ 1., 0.],
[ 0., 1.],
[ 0., -1.],
[-1., 0.]], dtype=torch.float64)
[15]:
# Define twiss observable (full coupled twiss)
def observable_twiss(kn, ks):
return twiss(ring, [kn, ks], ('kn', None, nkn, None), ('ks', None, nks, None), matched=True, advance=True, full=False, convert=False)
[16]:
# Define dispersion observable
def observable_dispersion(kn, ks):
orbit = torch.tensor(4*[0.0], dtype=dtype)
etax, _, etay, _ = dispersion(ring,
orbit,
[kn, ks],
('kn', None, nkn, None),
('ks', None, nks, None))
return torch.stack([etax, etay]).T
[17]:
# Construct full target observable vector and corresponding responce matrix
def observable(knobs):
kn, ks = torch.split(knobs, [3, 2])
kn = Sn @ kn
ks = Ss @ ks
betas = observable_twiss(kn, ks)
etas = observable_dispersion(kn, ks)
return torch.cat([betas.flatten(), etas.flatten()])
knobs = torch.tensor((3 + 2)*[0.0], dtype=dtype)
print((target := observable(knobs)).shape)
print((matrix := torch.func.jacfwd(observable)(knobs)).shape)
torch.Size([5712])
torch.Size([5712, 5])
[18]:
# Define ID model
# Note, only the flattened triangular part of the A and B matrices is passed
A = torch.tensor([[-0.03484222052711237, 1.0272120741819959E-7, -4.698931299341201E-9, 0.0015923185492594811],
[1.0272120579834892E-7, -0.046082787920135176, 0.0017792061173117564, 3.3551298301095784E-8],
[-4.6989312853101E-9, 0.0017792061173117072, 0.056853750760983084, -1.5929605363332683E-7],
[0.0015923185492594336, 3.3551298348653296E-8, -1.5929605261642905E-7, 0.08311631737263032]], dtype=dtype)
B = torch.tensor([[0.03649353186115209, 0.0015448347221877217, 0.00002719892025520868, -0.0033681183134964482],
[0.0015448347221877217, 0.13683886657005795, -0.0033198692682377406, 0.00006140578258682469],
[0.00002719892025520868, -0.0033198692682377406, -0.05260095308967722, 0.005019907688182885],
[-0.0033681183134964482, 0.00006140578258682469, 0.005019907688182885, -0.2531573249456863]], dtype=dtype)
ID = Matrix('ID',
length=0.0,
A=A[torch.triu(torch.ones_like(A, dtype=torch.bool))].tolist(),
B=B[torch.triu(torch.ones_like(B, dtype=torch.bool))].tolist())
[19]:
# Insert ID into the existing lattice
# This will replace the target marker
error = ring.clone()
error.flatten()
error.insert(ID, error.next('MLL_S01').name, position=0.0)
error.splice()
# Describe
error.describe
[19]:
{'BPM': 168,
'Drift': 709,
'Dipole': 156,
'Quadrupole': 360,
'Marker': 12,
'Matrix': 1}
[20]:
# Compute tunes (fractional part)
nux_id, nuy_id = tune(error, [], matched=True, limit=1)
[21]:
# Compute dispersion
orbit = torch.tensor(4*[0.0], dtype=dtype)
etaqx_id, etapx_id, etaqy_id, etapy_id = dispersion(error, orbit, [], limit=1)
[22]:
# Compute twiss parameters
ax_id, bx_id, ay_id, by_id = twiss(error, [], matched=True, advance=True, full=False).T
[23]:
# Compute phase advances
mux_id, muy_id = advance(error, [], alignment=False, matched=True).T
[24]:
# Compute coupling
c_id = coupling(error, [])
[25]:
# Compute hromaticity
psi_id = chromaticity(error, [])
[26]:
# Tune shifts
print((nux - nux_id))
print((nuy - nuy_id))
tensor(0.0260, dtype=torch.float64)
tensor(-0.0114, dtype=torch.float64)
[27]:
# Coupling (minimal tune distance)
print(c)
print(c_id)
tensor(0., dtype=torch.float64)
tensor(0.0004, dtype=torch.float64)
[28]:
# Chromaticity
print(psi)
print(psi_id)
tensor([-71.2093, -66.6787], dtype=torch.float64)
tensor([-72.2597, -66.6681], dtype=torch.float64)
[29]:
# Define parametric observable vector
def global_observable(knobs):
kf, kd = knobs
kn = torch.stack(len(QF)*[kf] + len(QD)*[kd])
return tune(error, [kn], ('kn', None, QF + QD, None), matched=True, limit=1)
def observable_twiss(kn, ks):
return twiss(error, [kn, ks], ('kn', None, nkn, None), ('ks', None, nks, None), matched=True, advance=True, full=False, convert=False)
def observable_dispersion(kn, ks):
orbit = torch.tensor(4*[0.0], dtype=dtype)
etax, _, etay, _ = dispersion(error,
orbit,
[kn, ks],
('kn', None, nkn, None),
('ks', None, nks, None))
return torch.stack([etax, etay]).T
def observable(knobs):
kn, ks = torch.split(knobs, [3, 2])
kn = Sn @ kn
ks = Ss @ ks
betas = observable_twiss(kn, ks)
etas = observable_dispersion(kn, ks)
return torch.cat([betas.flatten(), etas.flatten()])
[30]:
# Check the residual vector norm
global_knobs = torch.tensor(2*[0.0], dtype=dtype)
knobs = torch.tensor((3 + 2)*[0.0], dtype=dtype)
print(((global_observable(global_knobs) - global_target)**2).sum())
print(((observable(knobs) - target)**2).sum())
tensor(0.0008, dtype=torch.float64)
tensor(212.9162, dtype=torch.float64)
[31]:
# Optimization loop (local)
# Responce matrix (jacobian)
M = matrix.clone()
# Weighting covariance (sensitivity) matrix
epsilon = 1.0E-9
C = M @ M.T
C = C + epsilon*torch.eye(len(C), dtype=dtype)
# Cholesky decomposition
L = torch.linalg.cholesky(C)
# Whiten response
M = torch.linalg.solve_triangular(L, M, upper=False)
# Additional weights
# Can be used to extra weight selected observables, e.g. tunes
weights = torch.ones(len(M), dtype=dtype)
weights = weights.sqrt()
# Whiten response with additional weights
M = M*weights.unsqueeze(1)
# Iterative correction
lr = 0.75
# Initial value
knobs = torch.tensor((3 + 2)*[0.0], dtype=dtype)
# Correction loop
for _ in range(8):
value = observable(knobs)
residual = target - value
residual = torch.linalg.solve_triangular(L, residual.unsqueeze(-1), upper=False).squeeze(-1)
residual = residual*weights
delta = torch.linalg.lstsq(M, residual, driver="gels").solution
knobs += lr*delta
print(((value - target)**2).sum())
print()
tensor(212.9162, dtype=torch.float64)
tensor(12.4882, dtype=torch.float64)
tensor(1.1070, dtype=torch.float64)
tensor(0.3135, dtype=torch.float64)
tensor(0.2637, dtype=torch.float64)
tensor(0.2607, dtype=torch.float64)
tensor(0.2605, dtype=torch.float64)
tensor(0.2605, dtype=torch.float64)
[32]:

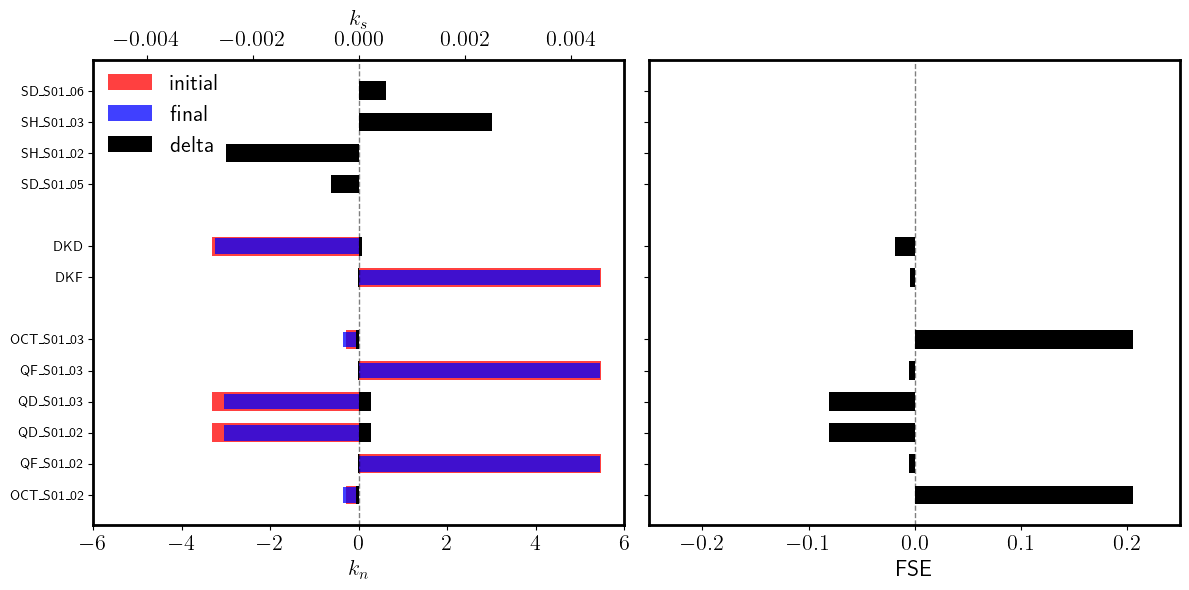

# Knob values
kn, ks = torch.split(knobs, [3, 2])
kn = Sn @ kn
ks = Ss @ ks
print(kn.numpy())
print(ks.numpy())
[-0.0603765 -0.00614448 0.20563185 0.20563185 -0.00614448 -0.0603765 ]
[-0.00051897 -0.00251072 0.00251072 0.00051897]
[33]:
# Apply final corrections
error.flatten()
print()
print('kn:')
for name, knob in zip(nkn, kn):
print(f'{name:<10}: {knob.numpy():>20}: {error[name].kn.numpy():>20} -> {(error[name].kn + knob).numpy():>20}, FSE: {((error[name].kn + knob)/error[name].kn - 1).numpy():>20}')
error[name].kn = (error[name].kn + knob).item()
print()
print('ks:')
for name, knob in zip(nks, ks):
print(f'{name:<10}: {knob.numpy():>20}: {error[name].ks.numpy():>20} -> {(error[name].ks + knob).numpy():>20}')
error[name].ks = (error[name].ks + knob).item()
error.splice()
kn:
OCT_S01_02: -0.060376501089756965: -0.29359999999999903 -> -0.353976501089756, FSE: 0.20564203368445888
QF_S01_02 : -0.006144478301794437: 5.479408293511701 -> 5.473263815209906, FSE: -0.0011213762458750498
QD_S01_02 : 0.20563185272696213: -3.319999999999998 -> -3.114368147273036, FSE: -0.061937305038241686
QD_S01_03 : 0.20563185272696213: -3.319999999999998 -> -3.114368147273036, FSE: -0.061937305038241686
QF_S01_03 : -0.006144478301794437: 5.479408293511701 -> 5.473263815209906, FSE: -0.0011213762458750498
OCT_S01_03: -0.060376501089756965: -0.29359999999999903 -> -0.353976501089756, FSE: 0.20564203368445888
ks:
SD_S01_05 : -0.0005189660946489763: 0.0 -> -0.0005189660946489763
SH_S01_02 : -0.002510722646811896: 0.0 -> -0.002510722646811896
SH_S01_03 : 0.002510722646811896: 0.0 -> 0.002510722646811896
SD_S01_06 : 0.0005189660946489763: 0.0 -> 0.0005189660946489763
[34]:
# Check
print(((global_observable(0.0*global_knobs) - global_target)**2).sum())
print(((observable(0.0*knobs) - target)**2).sum())
tensor(0.0001, dtype=torch.float64)
tensor(0.2605, dtype=torch.float64)
[35]:
# Optimization loop (global)
# Responce matrix (jacobian)
M = global_matrix.clone()
# Weighting covariance (sensitivity) matrix
epsilon = 1.0E-9
C = M @ M.T
C = C + epsilon*torch.eye(len(C), dtype=dtype)
# Cholesky decomposition
L = torch.linalg.cholesky(C)
# Whiten response
M = torch.linalg.solve_triangular(L, M, upper=False)
# Additional weights
# Can be used to extra weight selected observables, e.g. tunes
weights = torch.ones(len(M), dtype=dtype)
weights = weights.sqrt()
# Whiten response with additional weights
M = M*weights.unsqueeze(1)
# Iterative correction
lr = 0.75
# Initial value
global_knobs = torch.tensor(2*[0.0], dtype=dtype)
# Correction loop
for _ in range(1 + 1):
value = global_observable(global_knobs)
residual = global_target - value
residual = torch.linalg.solve_triangular(L, residual.unsqueeze(-1), upper=False).squeeze(-1)
residual = residual*weights
delta = torch.linalg.lstsq(M, residual, driver="gels").solution
global_knobs += lr*delta
print(((value - global_target)**2).sum())
print()
tensor(0.0001, dtype=torch.float64)
tensor(9.0533e-06, dtype=torch.float64)
[36]:
# Knob values
kf, kd = global_knobs
print(kd.numpy())
print(kf.numpy())
0.061526790825143986
-0.02255439679848007
[37]:
# Apply final corrections
error.flatten()
print()
print('qd:')
for name in QD:
print(f'{name:<10}: {kd.numpy():>20}: {error[name].kn.numpy():>20} -> {(error[name].kn + kd).numpy():>20}, FSE: {((error[name].kn + kd)/error[name].kn - 1).numpy():>20}')
error[name].kn = (error[name].kn + kd).item()
print()
print('qf:')
for name in QF:
print(f'{name:<10}: {kf.numpy():>20}: {error[name].kn.numpy():>20} -> {(error[name].kn + kf).numpy():>20}, FSE: {((error[name].kn + kf)/error[name].kn - 1).numpy():>20}')
error[name].kn = (error[name].kn + kf).item()
error.splice()
qd:
QD_S01_02 : 0.061526790825143986: -3.114368147273036 -> -3.052841356447892, FSE: -0.019755786058567648
QD_S02_02 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S03_02 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S04_02 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S05_02 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S06_02 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S07_02 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S08_02 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S09_02 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S10_02 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S11_02 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S12_02 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S01_03 : 0.061526790825143986: -3.114368147273036 -> -3.052841356447892, FSE: -0.019755786058567648
QD_S02_03 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S03_03 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S04_03 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S05_03 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S06_03 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S07_03 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S08_03 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S09_03 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S10_03 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S11_03 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
QD_S12_03 : 0.061526790825143986: -3.319999999999998 -> -3.2584732091748543, FSE: -0.018532165911187892
qf:
QF_S01_02 : -0.02255439679848007: 5.473263815209906 -> 5.450709418411426, FSE: -0.004120831291888782
QF_S02_02 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S03_02 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S04_02 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S05_02 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S06_02 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S07_02 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S08_02 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S09_02 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S10_02 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S11_02 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S12_02 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S01_03 : -0.02255439679848007: 5.473263815209906 -> 5.450709418411426, FSE: -0.004120831291888782
QF_S02_03 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S03_03 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S04_03 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S05_03 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S06_03 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S07_03 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S08_03 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S09_03 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S10_03 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S11_03 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
QF_S12_03 : -0.02255439679848007: 5.479408293511701 -> 5.456853896713221, FSE: -0.004116210289564881
[38]:
# Compute tunes (fractional part)
nux_result, nuy_result = tune(error, [], matched=True, limit=1)
[39]:
# Compute dispersion
orbit = torch.tensor(4*[0.0], dtype=dtype)
etaqx_result, etapx_result, etaqy_result, etapy_result = dispersion(error, orbit, [], limit=1)
[40]:
# Compute twiss parameters
ax_result, bx_result, ay_result, by_result = twiss(error, [], matched=True, advance=True, full=False).T
[41]:
# Compute phase advances
mux_result, muy_result = advance(error, [], alignment=False, matched=True).T
[42]:
# Compute coupling
c_result = coupling(error, [])
[43]:
# Compute chromaticity
psi_result = chromaticity(error, [])
[44]:
# Tune shifts
print((nux - nux_id).abs())
print((nuy - nuy_id).abs())
print()
print((nux - nux_result).abs())
print((nuy - nuy_result).abs())
print()
tensor(0.0260, dtype=torch.float64)
tensor(0.0114, dtype=torch.float64)
tensor(0.0004, dtype=torch.float64)
tensor(0.0008, dtype=torch.float64)
[45]:
# Coupling (minimal tune distance)
print(c)
print(c_id)
print(c_result)
tensor(0., dtype=torch.float64)
tensor(0.0004, dtype=torch.float64)
tensor(6.5744e-06, dtype=torch.float64)
[46]:
# Chromaticity
(psi_x, psi_y) = psi
(psi_id_x, psi_id_y) = psi_id
(psi_result_x, psi_result_y) =psi_result
print(psi_x, psi_y)
print(psi_id_x, psi_id_y)
print(psi_result_x, psi_result_y)
tensor(-71.2093, dtype=torch.float64) tensor(-66.6787, dtype=torch.float64)
tensor(-72.2597, dtype=torch.float64) tensor(-66.6681, dtype=torch.float64)
tensor(-71.1487, dtype=torch.float64) tensor(-66.7459, dtype=torch.float64)
[47]:

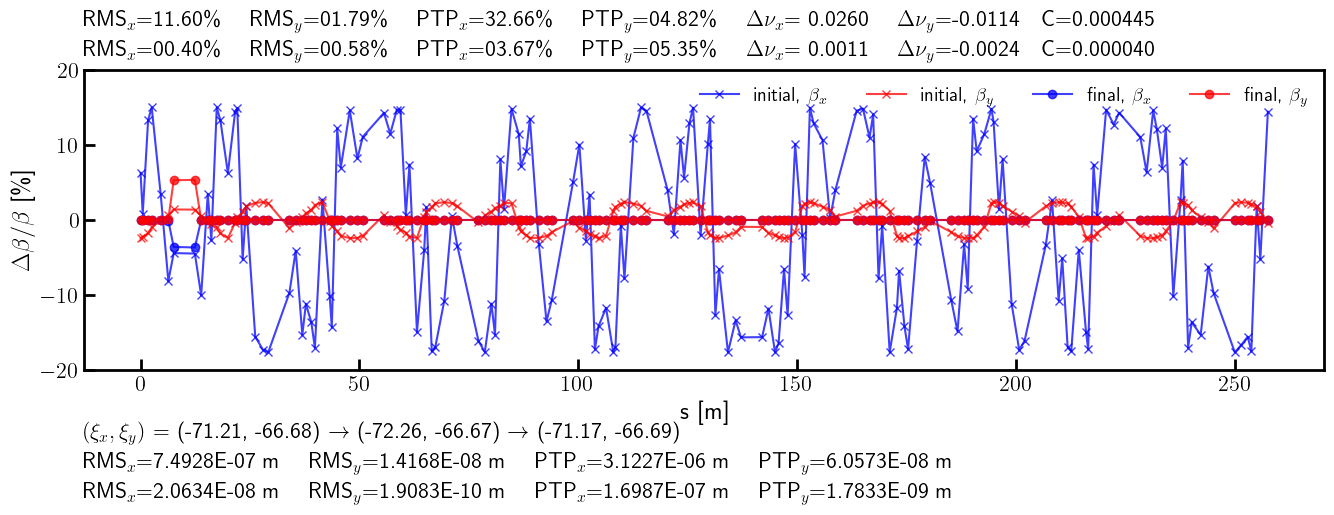

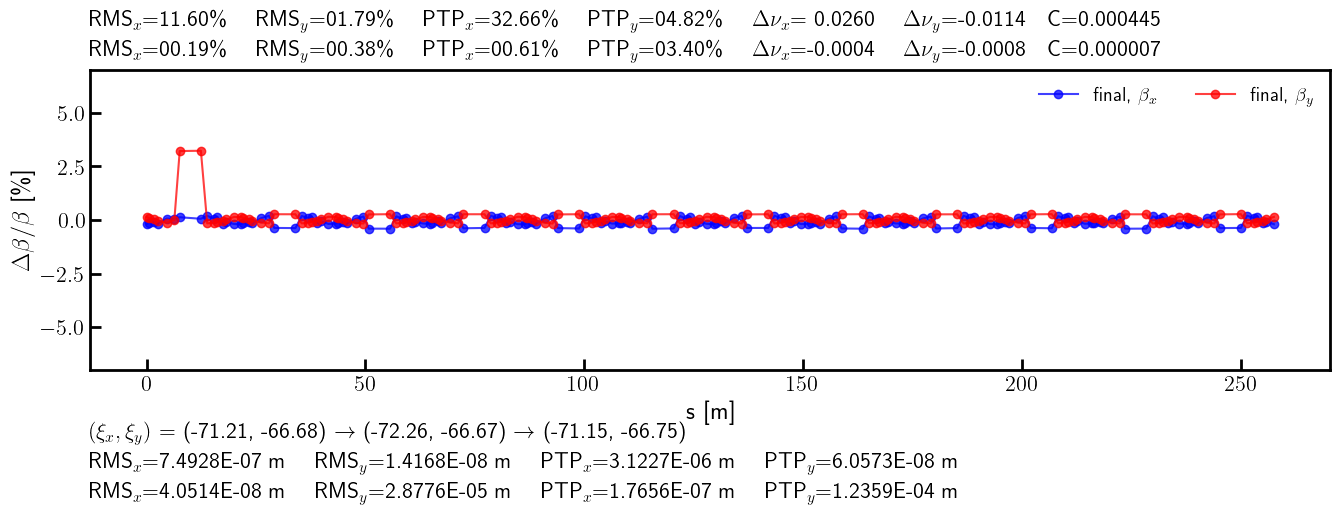

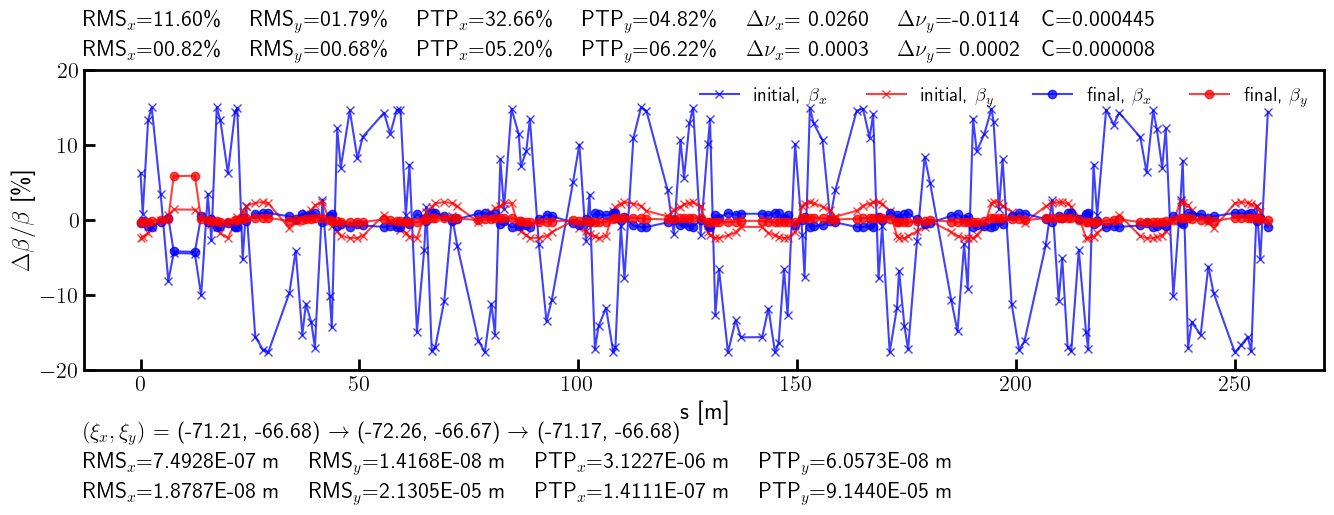

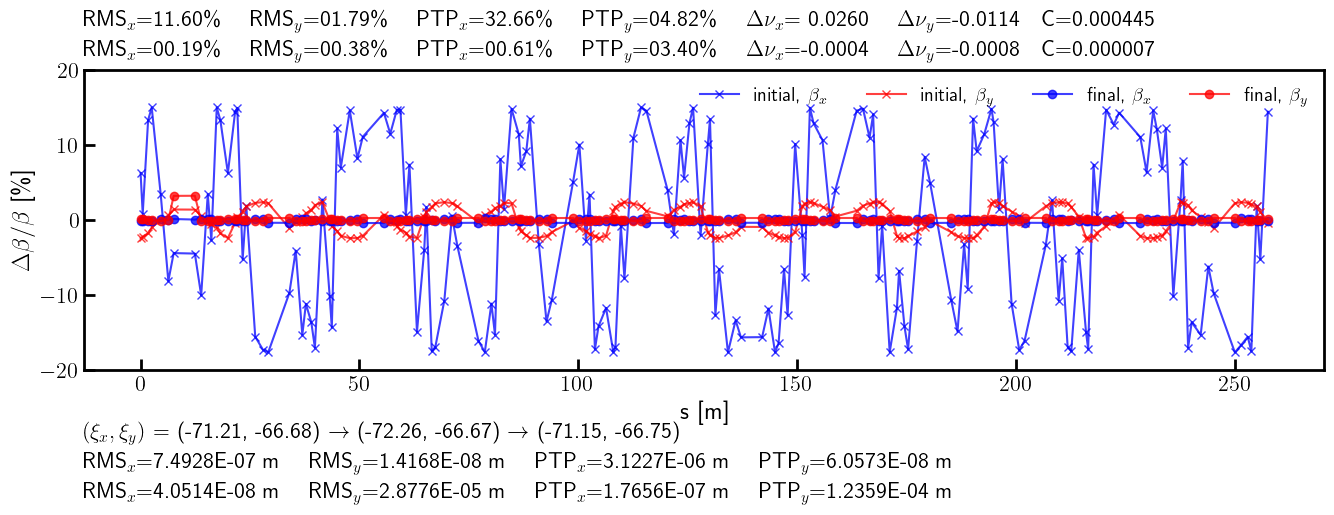

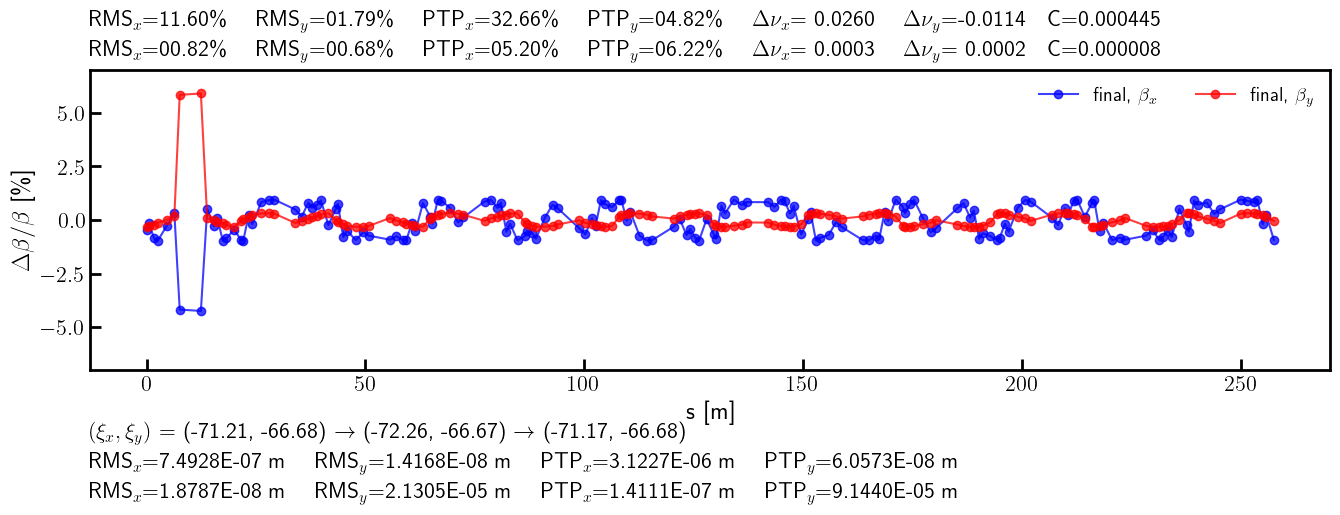

# Beta-beating
bx_ref_bb = 100.0*(bx - bx_id) / bx
by_ref_bb = 100.0*(by - by_id) / by
bx_res_bb = 100.0*(bx - bx_result)/ bx
by_res_bb = 100.0*(by - by_result)/ by
def rms(x):
return (x**2).mean().sqrt()
rms_x_ref = rms(bx_ref_bb).item()
ptp_x_ref = (bx_ref_bb.max() - bx_ref_bb.min()).item()
rms_y_ref = rms(by_ref_bb).item()
ptp_y_ref = (by_ref_bb.max() - by_ref_bb.min()).item()
rms_x_res = rms(bx_res_bb).item()
ptp_x_res = (bx_res_bb.max() - bx_res_bb.min()).item()
rms_y_res = rms(by_res_bb).item()
ptp_y_res = (by_res_bb.max() - by_res_bb.min()).item()
s = ring.locations().cpu().numpy()
bx_ref_np = bx_ref_bb.cpu().numpy()
by_ref_np = by_ref_bb.cpu().numpy()
bx_res_np = bx_res_bb.cpu().numpy()
by_res_np = by_res_bb.cpu().numpy()
etax_ref = etaqx - etaqx_id
etay_ref = etaqy - etaqy_id
etax_res = etaqx - etaqx_result
etay_res = etaqy - etaqy_result
rms_etax_ref = rms(etax_ref).item()
ptp_etax_ref = (etax_ref.max() - etax_ref.min()).item()
rms_etay_ref = rms(etay_ref).item()
ptp_etay_ref = (etay_ref.max() - etay_ref.min()).item()
rms_etax_res = rms(etax_res).item()
ptp_etax_res = (etax_res.max() - etax_res.min()).item()
rms_etay_res = rms(etay_res).item()
ptp_etay_res = (etay_res.max() - etay_res.min()).item()
etax_ref_np = etax_ref.cpu().numpy()
etay_ref_np = etay_ref.cpu().numpy()
etax_res_np = etax_res.cpu().numpy()
etay_res_np = etay_res.cpu().numpy()
fig, ax = plt.subplots(
1, 1, figsize=(16, 6),
sharex=True,
gridspec_kw={'hspace': 0.3}
)
fig.subplots_adjust(top=0.85, bottom=0.35)
ax.errorbar(s, bx_ref_np, fmt='-', marker='x', color='blue', alpha=0.75, lw=1.5, label=r'initial, $\beta_x$')
ax.errorbar(s, by_ref_np, fmt='-', marker='x', color='red', alpha=0.75, lw=1.5, label=r'initial, $\beta_y$')
ax.errorbar(s, bx_res_np, fmt='-', marker='o', color='blue', alpha=0.75, lw=1.5, label=r'final, $\beta_x$')
ax.errorbar(s, by_res_np, fmt='-', marker='o', color='red', alpha=0.75, lw=1.5, label=r'final, $\beta_y$')
ax.set_xlabel('s [m]', fontsize=18)
ax.set_ylabel(r'$\Delta \beta / \beta$ [\%]', fontsize=18)
ax.tick_params(width=2, labelsize=16)
ax.tick_params(axis='x', length=8, direction='in')
ax.tick_params(axis='y', length=8, direction='in')
title = (
rf'RMS$_x$={rms_x_ref:05.2f}\% \quad RMS$_y$={rms_y_ref:05.2f}\% \quad '
rf'PTP$_x$={ptp_x_ref:05.2f}\% \quad PTP$_y$={ptp_y_ref:05.2f}\% \quad '
rf'$\Delta \nu_x$={(lambda x: '-' if x < 0 else '~')(nux - nux_id)}{(nux - nux_id).abs().item():.4f} \quad $\Delta \nu_y$={(lambda x: '-' if x < 0 else '~')(nuy - nuy_id)}{(nuy - nuy_id).abs().item():.4f}'
rf'\quad C={c_id.item():.6f}'
)
ax.text(0.0, 1.125, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_x_res:05.2f}\% \quad RMS$_y$={rms_y_res:05.2f}\% \quad '
rf'PTP$_x$={ptp_x_res:05.2f}\% \quad PTP$_y$={ptp_y_res:05.2f}\% \quad '
rf'$\Delta \nu_x$={(lambda x: '-' if x < 0 else '~')(nux - nux_result)}{(nux - nux_result).abs().item():.4f} \quad $\Delta \nu_y$={(lambda x: '-' if x < 0 else '~')(nuy - nuy_result)}{(nuy - nuy_result).abs().item():.4f}'
rf'\quad C={c_result.item():.6f}'
)
ax.text(0.0, 1.025, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'$(\xi_x, \xi_y)$ = ({psi_x.item():.2f}, {psi_y.item():.2f}) $\to$ ({psi_id_x.item():.2f}, {psi_id_y.item():.2f}) $\to$ ({psi_result_x.item():.2f}, {psi_result_y.item():.2f})'
)
ax.text(0.0, -0.25 - 0*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_etax_ref:.4E} m \quad RMS$_y$={rms_etay_ref:.4E} m \quad '
rf'PTP$_x$={ptp_etax_ref:.4E} m \quad PTP$_y$={ptp_etay_ref:.4E} m \quad '
)
ax.text(0.0, -0.25 - 1*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_etax_res:.4E} m \quad RMS$_y$={rms_etay_res:.4E} m \quad '
rf'PTP$_x$={ptp_etax_res:.4E} m \quad PTP$_y$={ptp_etay_res:.4E} m \quad '
)
ax.text(0.0, -0.25 - 2*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
ax.legend(loc='upper right', frameon=False, fontsize=14, ncol=4)
ax.set_ylim(-20, 20)
plt.setp(ax.spines.values(), linewidth=2.0)
plt.show()
[48]:
# Beta-beating
bx_ref_bb = 100.0*(bx - bx_id) / bx
by_ref_bb = 100.0*(by - by_id) / by
bx_res_bb = 100.0*(bx - bx_result)/ bx
by_res_bb = 100.0*(by - by_result)/ by
def rms(x):
return (x**2).mean().sqrt()
rms_x_ref = rms(bx_ref_bb).item()
ptp_x_ref = (bx_ref_bb.max() - bx_ref_bb.min()).item()
rms_y_ref = rms(by_ref_bb).item()
ptp_y_ref = (by_ref_bb.max() - by_ref_bb.min()).item()
rms_x_res = rms(bx_res_bb).item()
ptp_x_res = (bx_res_bb.max() - bx_res_bb.min()).item()
rms_y_res = rms(by_res_bb).item()
ptp_y_res = (by_res_bb.max() - by_res_bb.min()).item()
s = ring.locations().cpu().numpy()
bx_ref_np = bx_ref_bb.cpu().numpy()
by_ref_np = by_ref_bb.cpu().numpy()
bx_res_np = bx_res_bb.cpu().numpy()
by_res_np = by_res_bb.cpu().numpy()
etax_ref = etaqx - etaqx_id
etay_ref = etaqy - etaqy_id
etax_res = etaqx - etaqx_result
etay_res = etaqy - etaqy_result
rms_etax_ref = rms(etax_ref).item()
ptp_etax_ref = (etax_ref.max() - etax_ref.min()).item()
rms_etay_ref = rms(etay_ref).item()
ptp_etay_ref = (etay_ref.max() - etay_ref.min()).item()
rms_etax_res = rms(etax_res).item()
ptp_etax_res = (etax_res.max() - etax_res.min()).item()
rms_etay_res = rms(etay_res).item()
ptp_etay_res = (etay_res.max() - etay_res.min()).item()
etax_ref_np = etax_ref.cpu().numpy()
etay_ref_np = etay_ref.cpu().numpy()
etax_res_np = etax_res.cpu().numpy()
etay_res_np = etay_res.cpu().numpy()
fig, ax = plt.subplots(
1, 1, figsize=(16, 6),
sharex=True,
gridspec_kw={'hspace': 0.3}
)
fig.subplots_adjust(top=0.85, bottom=0.35)
# ax.errorbar(s, bx_ref_np, fmt='-', marker='x', color='blue', alpha=0.75, lw=1.5, label=r'initial, $\beta_x$')
# ax.errorbar(s, by_ref_np, fmt='-', marker='x', color='red', alpha=0.75, lw=1.5, label=r'initial, $\beta_y$')
ax.errorbar(s, bx_res_np, fmt='-', marker='o', color='blue', alpha=0.75, lw=1.5, label=r'final, $\beta_x$')
ax.errorbar(s, by_res_np, fmt='-', marker='o', color='red', alpha=0.75, lw=1.5, label=r'final, $\beta_y$')
ax.set_xlabel('s [m]', fontsize=18)
ax.set_ylabel(r'$\Delta \beta / \beta$ [\%]', fontsize=18)
ax.tick_params(width=2, labelsize=16)
ax.tick_params(axis='x', length=8, direction='in')
ax.tick_params(axis='y', length=8, direction='in')
title = (
rf'RMS$_x$={rms_x_ref:05.2f}\% \quad RMS$_y$={rms_y_ref:05.2f}\% \quad '
rf'PTP$_x$={ptp_x_ref:05.2f}\% \quad PTP$_y$={ptp_y_ref:05.2f}\% \quad '
rf'$\Delta \nu_x$={(lambda x: '-' if x < 0 else '~')(nux - nux_id)}{(nux - nux_id).abs().item():.4f} \quad $\Delta \nu_y$={(lambda x: '-' if x < 0 else '~')(nuy - nuy_id)}{(nuy - nuy_id).abs().item():.4f}'
rf'\quad C={c_id.item():.6f}'
)
ax.text(0.0, 1.125, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_x_res:05.2f}\% \quad RMS$_y$={rms_y_res:05.2f}\% \quad '
rf'PTP$_x$={ptp_x_res:05.2f}\% \quad PTP$_y$={ptp_y_res:05.2f}\% \quad '
rf'$\Delta \nu_x$={(lambda x: '-' if x < 0 else '~')(nux - nux_result)}{(nux - nux_result).abs().item():.4f} \quad $\Delta \nu_y$={(lambda x: '-' if x < 0 else '~')(nuy - nuy_result)}{(nuy - nuy_result).abs().item():.4f}'
rf'\quad C={c_result.item():.6f}'
)
ax.text(0.0, 1.025, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'$(\xi_x, \xi_y)$ = ({psi_x.item():.2f}, {psi_y.item():.2f}) $\to$ ({psi_id_x.item():.2f}, {psi_id_y.item():.2f}) $\to$ ({psi_result_x.item():.2f}, {psi_result_y.item():.2f})'
)
ax.text(0.0, -0.25 - 0*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_etax_ref:.4E} m \quad RMS$_y$={rms_etay_ref:.4E} m \quad '
rf'PTP$_x$={ptp_etax_ref:.4E} m \quad PTP$_y$={ptp_etay_ref:.4E} m \quad '
)
ax.text(0.0, -0.25 - 1*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_etax_res:.4E} m \quad RMS$_y$={rms_etay_res:.4E} m \quad '
rf'PTP$_x$={ptp_etax_res:.4E} m \quad PTP$_y$={ptp_etay_res:.4E} m \quad '
)
ax.text(0.0, -0.25 - 2*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
ax.legend(loc='upper right', frameon=False, fontsize=14, ncol=4)
ax.set_ylim(-7, 7)
plt.setp(ax.spines.values(), linewidth=2.0)
plt.show()
[49]:
# Initial and final values
QF = [f'QF_S{i:02}_{j:02}' for j in [2, 3] for i in range(1, 12 + 1)]
QD = [f'QD_S{i:02}_{j:02}' for j in [2, 3] for i in range(1, 12 + 1)]
nkn = ['OCT_S01_02', 'QF_S01_02', 'QD_S01_02', 'QD_S01_03', 'QF_S01_03', 'OCT_S01_03']
nks = ['SD_S01_05', 'SH_S01_02', 'SH_S01_03', 'SD_S01_06']
ring.flatten()
kni = {name: ring[name].kn.item() for name in nkn}
ksi = {name: ring[name].ks.item() for name in nks}
kfi = {name: ring[name].kn.item() for name in QF}
kdi = {name: ring[name].kn.item() for name in QD}
ring.splice()
error.flatten()
knf = {name: error[name].kn.item() for name in nkn}
ksf = {name: error[name].ks.item() for name in nks}
kff = {name: error[name].kn.item() for name in QF}
kdf = {name: error[name].kn.item() for name in QD}
error.splice()
[50]:
# Global
gkfi = [kfi[name] for name in kfi if name not in nkn]
gkdi = [kdi[name] for name in kdi if name not in nkn]
gkfi, *_ = gkfi
gkdi, *_ = gkdi
gkff = [kff[name] for name in kff if name not in nkn]
gkdf = [kdf[name] for name in kdf if name not in nkn]
gkff, *_ = gkff
gkdf, *_ = gkdf
dkf = [(kff[name] - kfi[name]) for name in kfi if name not in nkn]
dkd = [(kdf[name] - kdi[name]) for name in kdi if name not in nkn]
dkf_abs, *_ = dkf
dkd_abs, *_ = dkd
gk_abs = {'DKF': dkf_abs, 'DKD': dkd_abs}
dkf = [(kff[name]/kfi[name] - 1) for name in kfi if name not in nkn]
dkd = [(kdf[name]/kdi[name] - 1) for name in kdi if name not in nkn]
dkf_fse, *_ = dkf
dkd_fse, *_ = dkd
gk_fse = {'DKF': dkf_fse, 'DKD': dkd_fse}
print(gk_abs)
print(gk_fse)
{'DKF': -0.022554396798479814, 'DKD': 0.061526790825143785}
{'DKF': -0.004116210289564881, 'DKD': -0.018532165911187892}
[51]:
# Local
dkn_fse = {name: knf[name]/kni[name] - 1 for name in kni}
dkn_abs = {name: knf[name] - kni[name]for name in kni}
dks_fse = {name: 0 for name in ksi}
dks_abs = {name: ksf[name] - ksi[name] for name in ksi}
[52]:

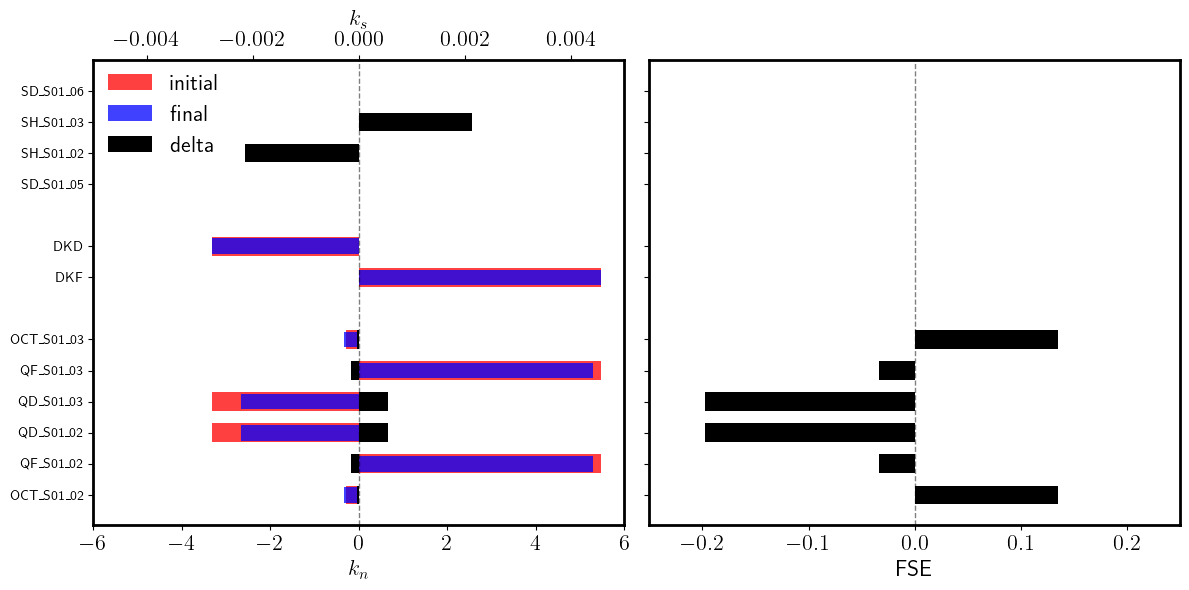

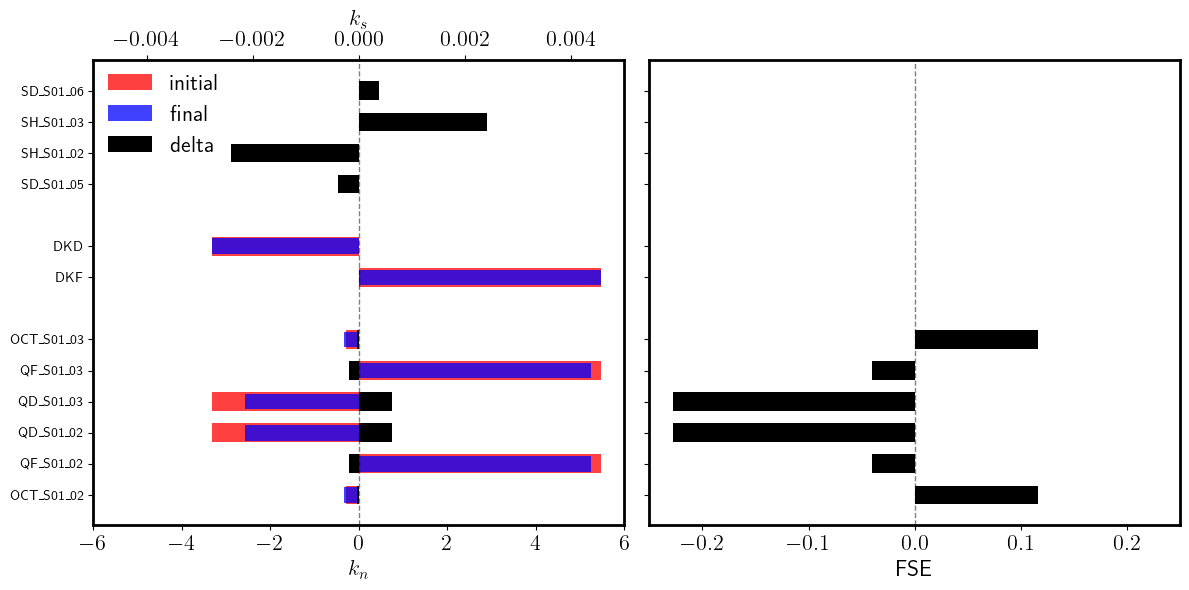

import numpy as np
import matplotlib.pyplot as plt
gap = 1
n_kn = len(dkn_abs)
n_dk = len(gk_abs)
n_ks = len(dks_abs)
y_kn = np.arange(n_kn)
y_dk = np.arange(n_dk) + n_kn + gap
y_ks = np.arange(n_ks) + n_kn + n_dk + 2*gap
yticks = np.concatenate([y_kn, y_dk, y_ks])
yticklabels = [*kni.keys()] + [*gk_abs.keys()] + [*ksi.keys()]
fig, (ax_abs, ax_fse) = plt.subplots(1, 2, figsize=(12, 6), sharey=True)
ax_abs.barh(y_dk, [gkfi, gkdi], height=0.6, color='red', alpha=0.75, label='initial')
ax_abs.barh(y_dk, [gkff, gkdf], height=0.5, color='blue', alpha=0.75, label='final')
ax_abs.barh(y_dk, [gk_abs['DKF'], gk_abs['DKD']], height=0.6, color='black', alpha=1, label='delta')
ax_abs.barh(y_kn, kni.values(), height=0.6, color='red', alpha=0.75)
ax_abs.barh(y_kn, knf.values(), height=0.5, color='blue', alpha=0.75)
ax_abs.barh(y_kn, list(dkn_abs.values()), height=0.6, color='black', alpha=1)
ax_abs.legend(loc=(0.01, 0.775), frameon=False, fontsize=16, ncol=1)
ax_abs.set_xlim(-6, 6)
ax_abs.set_xlabel(r'$k_n$', fontsize=16)
ax_abs.tick_params(axis='x', labelsize=16)
ax_abs = ax_abs.twiny()
ax_abs.barh(y_ks, ksi.values(), height=0.6, color='red', alpha=0.75)
ax_abs.barh(y_ks, ksf.values(), height=0.5, color='blue', alpha=0.75)
ax_abs.barh(y_ks, list(dks_abs.values()), height=0.6, color='black', alpha=1)
ax_abs.set_xlim(-0.005, 0.005)
ax_abs.set_yticks(yticks)
ax_abs.set_yticklabels(yticklabels, fontsize=16)
ax_abs.axvline(0.0, color='black', linewidth=1.0, linestyle='--', alpha=0.5)
ax_abs.set_xlabel(r'$k_s$', fontsize=16)
ax_abs.tick_params(axis='x', labelsize=16)
ax_abs.tick_params(axis='y', labelsize=16)
ax_fse.barh(y_dk, gk_fse.values(), height=0.6, color='black', alpha=1)
ax_fse.barh(y_kn, dkn_fse.values(), height=0.6, color='black', alpha=1)
ax_fse.set_xlim(-25/100, 25/100)
ax_fse.axvline(0.0, color='black', linewidth=1.0, linestyle='--', alpha=0.5)
ax_fse.set_xlabel(r'FSE', fontsize=16)
ax_fse.tick_params(axis='x', labelsize=16)
ax_fse.tick_params(axis='y', labelsize=16)
plt.setp(ax_abs.spines.values(), linewidth=2.0)
plt.setp(ax_fse.spines.values(), linewidth=2.0)
plt.tight_layout()
plt.show()
orm (local)
[1]:
# Import
import torch
from torch import Tensor
from pathlib import Path
import matplotlib
from matplotlib import pyplot as plt
from matplotlib.patches import Rectangle
matplotlib.rcParams['text.usetex'] = True
from model.library.element import Element
from model.library.line import Line
from model.library.corrector import Corrector
from model.library.quadrupole import Quadrupole
from model.library.matrix import Matrix
from model.command.external import load_lattice
from model.command.build import build
from model.command.tune import tune
from model.command.tune import chromaticity
from model.command.orbit import dispersion
from model.command.orbit import ORM
from model.command.twiss import twiss
from model.command.advance import advance
from model.command.coupling import coupling
from model.command.wrapper import Wrapper
from model.command.wrapper import forward
from model.command.wrapper import inverse
from model.command.wrapper import normalize
[2]:
# Set data type and device
Element.dtype = dtype = torch.float64
Element.device = device = torch.device('cpu')
[3]:
# Load lattice (ELEGANT table)
# Note, lattice is allowed to have repeated elements
path = Path('elettra.lte')
data = load_lattice(path)
[4]:
# Build and setup lattice
ring:Line = build('RING', 'ELEGANT', data)
# Flatten sublines
ring.flatten()
# Remove all marker elements but the ones starting with MLL (long straight section centers)
ring.remove_group(pattern=r'^(?!MLL_).*', kinds=['Marker'])
# Replace all sextupoles with quadrupoles
def factory(element:Element) -> None:
table = element.serialize
table.pop('ms', None)
return Quadrupole(**table)
ring.replace_group(pattern=r'', factory=factory, kinds=['Sextupole'])
# Set linear dipoles
def apply(element:Element) -> None:
element.linear = True
ring.apply(apply, kinds=['Dipole'])
# Insert correctors
for name, *_ in ring.layout():
if name.startswith('CH'):
corrector = Corrector(f'{name}_CXY', factor=1)
ring.split((1 + 1, None, [name], None), paste=[corrector])
# Merge drifts
ring.merge()
# Change lattice start start
ring.start = "BPM_S01_01"
# Split BPMs
ring.split((None, ['BPM'], None, None))
# Roll lattice
ring.roll(1)
# Splice
ring.splice()
# Describe
ring.describe
[4]:
{'BPM': 168,
'Drift': 732,
'Dipole': 156,
'Quadrupole': 360,
'Corrector': 24,
'Marker': 12}
[5]:
# Compute tunes (fractional part)
nux, nuy = tune(ring, [], matched=True, limit=1)
[6]:
# Compute dispersion
orbit = torch.tensor(4*[0.0], dtype=dtype)
etaqx, etapx, etaqy, etapy = dispersion(ring, orbit, [], limit=1)
[7]:
# Compute twiss parameters
ax, bx, ay, by = twiss(ring, [], matched=True, advance=True, full=False).T
[8]:
# Compute phase advances
mux, muy = advance(ring, [], alignment=False, matched=True).T
[9]:
# Compute coupling
c = coupling(ring, [])
[10]:
# Compute chromaticity
psi = chromaticity(ring, [])
[11]:
# Quadrupole names for global tune correction
QF = [f'QF_S{i:02}_{j:02}' for j in [2, 3] for i in range(1, 12 + 1)]
QD = [f'QD_S{i:02}_{j:02}' for j in [2, 3] for i in range(1, 12 + 1)]
[12]:
# Several local knobs can be used to correct ID effects
# Normal quadrupole correctors
nkn = ['OCT_S01_02', 'QF_S01_02', 'QD_S01_02', 'QD_S01_03', 'QF_S01_03', 'OCT_S01_03']
# Skew quadrupole correctors
nks = ['SD_S01_05', 'SH_S01_02', 'SH_S01_03', 'SD_S01_06']
[13]:
# Define knobs to magnets mixing matrices
Sn = torch.tensor([[1.0, 0.0, 0.0], [0.0, 1.0, 0.0], [0.0, 0.0, 1.0], [0.0, 0.0, 1.0], [0.0, 1.0, 0.0], [1.0, 0.0, 0.0]], dtype=dtype)
print(Sn)
print()
Ss = torch.tensor([[+1.0, 0.0], [0.0, +1.0], [0.0, -1.0], [-1.0, 0.0]], dtype=dtype)
print(Ss)
print()
tensor([[1., 0., 0.],
[0., 1., 0.],
[0., 0., 1.],
[0., 0., 1.],
[0., 1., 0.],
[1., 0., 0.]], dtype=torch.float64)
tensor([[ 1., 0.],
[ 0., 1.],
[ 0., -1.],
[-1., 0.]], dtype=torch.float64)
[14]:
# Define observables for 'mixed' knobs
def knobs_split(knobs):
kn, ks = torch.split(knobs, [3, 2])
kn = Sn @ kn
ks = Ss @ ks
return kn, ks
def knobs_build(knobs):
kn, ks = knobs_split(knobs)
return (nkn, kn), (nks, ks)
def observable_orm(nn, kn, ns, ks):
orm = ORM(ring, orbit, [kn, ks], ('kn', None, nn, None), ('ks', None, ns, None), limit=1)
return orm
def observable(knobs):
(nn, kn), (ns, ks) = knobs_build(knobs)
orm = observable_orm(nn, kn, ns, ks)
return orm.flatten()
[15]:
# Compute target vector and corresponding responce matrix
knobs = torch.tensor((3 + 2)*[0.0], dtype=dtype)
target = observable(knobs)
matrix = torch.func.jacfwd(observable)(knobs)
print(knobs.shape)
print(target.shape)
print(matrix.shape)
print(torch.linalg.matrix_rank(matrix))
torch.Size([5])
torch.Size([16128])
torch.Size([16128, 5])
tensor(5)
[16]:
# Define ID model
# Note, only the flattened triangular part of the A and B matrices is passed
A = torch.tensor([[-0.03484222052711237, 1.0272120741819959E-7, -4.698931299341201E-9, 0.0015923185492594811],
[1.0272120579834892E-7, -0.046082787920135176, 0.0017792061173117564, 3.3551298301095784E-8],
[-4.6989312853101E-9, 0.0017792061173117072, 0.056853750760983084, -1.5929605363332683E-7],
[0.0015923185492594336, 3.3551298348653296E-8, -1.5929605261642905E-7, 0.08311631737263032]], dtype=dtype)
B = torch.tensor([[0.03649353186115209, 0.0015448347221877217, 0.00002719892025520868, -0.0033681183134964482],
[0.0015448347221877217, 0.13683886657005795, -0.0033198692682377406, 0.00006140578258682469],
[0.00002719892025520868, -0.0033198692682377406, -0.05260095308967722, 0.005019907688182885],
[-0.0033681183134964482, 0.00006140578258682469, 0.005019907688182885, -0.2531573249456863]], dtype=dtype)
ID = Matrix('ID',
length=0.0,
A=A[torch.triu(torch.ones_like(A, dtype=torch.bool))].tolist(),
B=B[torch.triu(torch.ones_like(B, dtype=torch.bool))].tolist())
[17]:
# Insert ID into the existing lattice
# This will replace the target marker
error = ring.clone()
error.flatten()
error.insert(ID, error.next('MLL_S01').name, position=0.0)
error.splice()
# Describe
error.describe
[17]:
{'BPM': 168,
'Drift': 733,
'Dipole': 156,
'Quadrupole': 360,
'Corrector': 24,
'Marker': 12,
'Matrix': 1}
[18]:
# Compute tunes (fractional part)
nux_id, nuy_id = tune(error, [], matched=True, limit=1)
[19]:
# Compute dispersion
orbit = torch.tensor(4*[0.0], dtype=dtype)
etaqx_id, etapx_id, etaqy_id, etapy_id = dispersion(error, orbit, [], limit=1)
[20]:
# Compute twiss parameters
ax_id, bx_id, ay_id, by_id = twiss(error, [], matched=True, advance=True, full=False).T
[21]:
# Compute phase advances
mux_id, muy_id = advance(error, [], alignment=False, matched=True).T
[22]:
# Compute coupling
c_id = coupling(error, [])
[23]:
# Compute chromaticity
psi_id = chromaticity(error, [])
[24]:
# Tune shifts
print((nux - nux_id))
print((nuy - nuy_id))
tensor(0.0260, dtype=torch.float64)
tensor(-0.0114, dtype=torch.float64)
[25]:
# Coupling (minimal tune distance)
print(c)
print(c_id)
tensor(0., dtype=torch.float64)
tensor(0.0004, dtype=torch.float64)
[26]:
# Chromaticity
print(psi)
print(psi_id)
tensor([-71.2093, -66.6787], dtype=torch.float64)
tensor([-72.2597, -66.6681], dtype=torch.float64)
[27]:
# Define parametric observable vector (emulate tune measurement)
def observable_orm(nn, kn, ns, ks):
orm = ORM(error, orbit, [kn, ks], ('kn', None, nn, None), ('ks', None, ns, None), limit=1)
return orm
def observable(knobs):
(nn, kn), (ns, ks) = knobs_build(knobs)
orm = observable_orm(nn, kn, ns, ks)
return orm.flatten()
[28]:
# Check the residual vector norm
knobs = torch.tensor((3 + 2)*[0.0], dtype=dtype)
print(((observable(knobs) - target)**2).sum())
tensor(1498.9104, dtype=torch.float64)
[29]:
# Optimization loop (model free)
# Responce matrix (jacobian)
M = matrix.clone()
# Weighting covariance (sensitivity) matrix
epsilon = 1.0E-9
C = M @ M.T
C = C + epsilon*torch.eye(len(C), dtype=dtype)
# Cholesky decomposition
L = torch.linalg.cholesky(C)
# Whiten response
M = torch.linalg.solve_triangular(L, M, upper=False)
# Additional weights
# Can be used to extra weight selected observables, e.g. tunes
weights = torch.ones(len(M), dtype=dtype)
weights = weights.sqrt()
# Whiten response with additional weights
M = M*weights.unsqueeze(1)
# Iterative correction
lr = 0.75
# Initial value
knobs = torch.tensor((3 + 2)*[0.0], dtype=dtype)
# Correction loop
for _ in range(16):
value = observable(knobs)
residual = target - value
residual = torch.linalg.solve_triangular(L, residual.unsqueeze(-1), upper=False).squeeze(-1)
residual = residual*weights
delta = torch.linalg.lstsq(M, residual, driver="gels").solution
knobs += lr*delta
print(((value - target)**2).sum())
print()
tensor(1498.9104, dtype=torch.float64)
tensor(94.2315, dtype=torch.float64)
tensor(27.2219, dtype=torch.float64)
tensor(14.5212, dtype=torch.float64)
tensor(11.7324, dtype=torch.float64)
tensor(11.2607, dtype=torch.float64)
tensor(11.2023, dtype=torch.float64)
tensor(11.1988, dtype=torch.float64)
tensor(11.1998, dtype=torch.float64)
tensor(11.2004, dtype=torch.float64)
tensor(11.2006, dtype=torch.float64)
tensor(11.2007, dtype=torch.float64)
tensor(11.2007, dtype=torch.float64)
tensor(11.2007, dtype=torch.float64)
tensor(11.2007, dtype=torch.float64)
tensor(11.2007, dtype=torch.float64)
[30]:
# Knob values
(nn, kn), (ns, ks) = knobs_build(knobs)
print(kn.numpy())
print(ks.numpy())
[-0.03402113 -0.21871428 0.75520734 0.75520734 -0.21871428 -0.03402113]
[-0.00038598 -0.0024136 0.0024136 0.00038598]
[31]:
# Apply final corrections
error.flatten()
print()
print('kn:')
for name, knob in zip(nn, kn):
print(f'{name:<10}: {knob.numpy():>20}: {error[name].kn.numpy():>20} -> {(error[name].kn + knob).numpy():>20}, FSE: {((error[name].kn + knob)/error[name].kn - 1).numpy():>20}')
error[name].kn = (error[name].kn + knob).item()
print()
print('ks:')
for name, knob in zip(ns, ks):
print(f'{name:<10}: {knob.numpy():>20}: {error[name].ks.numpy():>20} -> {(error[name].ks + knob).numpy():>20}')
error[name].ks = (error[name].ks + knob).item()
error.splice()
kn:
OCT_S01_02: -0.03402112810450709: -0.29359999999999903 -> -0.3276211281045061, FSE: 0.11587577692270834
QF_S01_02 : -0.2187142761729715: 5.479408293511701 -> 5.260694017338729, FSE: -0.039915674185469374
QD_S01_02 : 0.755207336457441: -3.319999999999998 -> -2.564792663542557, FSE: -0.2274720892944101
QD_S01_03 : 0.755207336457441: -3.319999999999998 -> -2.564792663542557, FSE: -0.2274720892944101
QF_S01_03 : -0.2187142761729715: 5.479408293511701 -> 5.260694017338729, FSE: -0.039915674185469374
OCT_S01_03: -0.03402112810450709: -0.29359999999999903 -> -0.3276211281045061, FSE: 0.11587577692270834
ks:
SD_S01_05 : -0.0003859825140469747: 0.0 -> -0.0003859825140469747
SH_S01_02 : -0.002413604312380506: 0.0 -> -0.002413604312380506
SH_S01_03 : 0.002413604312380506: 0.0 -> 0.002413604312380506
SD_S01_06 : 0.0003859825140469747: 0.0 -> 0.0003859825140469747
[32]:
# Compute tunes (fractional part)
nux_result, nuy_result = tune(error, [], matched=True, limit=1)
[33]:
# Compute dispersion
orbit = torch.tensor(4*[0.0], dtype=dtype)
etaqx_result, etapx_result, etaqy_result, etapy_result = dispersion(error, orbit, [], limit=1)
[34]:
# Compute twiss parameters
ax_result, bx_result, ay_result, by_result = twiss(error, [], matched=True, advance=True, full=False).T
[35]:
# Compute phase advances
mux_result, muy_result = advance(error, [], alignment=False, matched=True).T
[36]:
# Compute coupling
c_result = coupling(error, [])
[37]:
# Compute chromaticity
psi_result = chromaticity(error, [])
[38]:
# Tune shifts
print((nux - nux_id).abs())
print((nuy - nuy_id).abs())
print()
print((nux - nux_result).abs())
print((nuy - nuy_result).abs())
print()
tensor(0.0260, dtype=torch.float64)
tensor(0.0114, dtype=torch.float64)
tensor(0.0003, dtype=torch.float64)
tensor(0.0002, dtype=torch.float64)
[39]:
# Coupling (minimal tune distance)
print(c)
print(c_id)
print(c_result)
tensor(0., dtype=torch.float64)
tensor(0.0004, dtype=torch.float64)
tensor(7.5546e-06, dtype=torch.float64)
[40]:
# Chromaticity
(psi_x, psi_y) = psi
(psi_id_x, psi_id_y) = psi_id
(psi_result_x, psi_result_y) =psi_result
print(psi_x, psi_y)
print(psi_id_x, psi_id_y)
print(psi_result_x, psi_result_y)
tensor(-71.2093, dtype=torch.float64) tensor(-66.6787, dtype=torch.float64)
tensor(-72.2597, dtype=torch.float64) tensor(-66.6681, dtype=torch.float64)
tensor(-71.1664, dtype=torch.float64) tensor(-66.6784, dtype=torch.float64)
[41]:
# Beta-beating
bx_ref_bb = 100.0*(bx - bx_id) / bx
by_ref_bb = 100.0*(by - by_id) / by
bx_res_bb = 100.0*(bx - bx_result)/ bx
by_res_bb = 100.0*(by - by_result)/ by
def rms(x):
return (x**2).mean().sqrt()
rms_x_ref = rms(bx_ref_bb).item()
ptp_x_ref = (bx_ref_bb.max() - bx_ref_bb.min()).item()
rms_y_ref = rms(by_ref_bb).item()
ptp_y_ref = (by_ref_bb.max() - by_ref_bb.min()).item()
rms_x_res = rms(bx_res_bb).item()
ptp_x_res = (bx_res_bb.max() - bx_res_bb.min()).item()
rms_y_res = rms(by_res_bb).item()
ptp_y_res = (by_res_bb.max() - by_res_bb.min()).item()
s = ring.locations().cpu().numpy()
bx_ref_np = bx_ref_bb.cpu().numpy()
by_ref_np = by_ref_bb.cpu().numpy()
bx_res_np = bx_res_bb.cpu().numpy()
by_res_np = by_res_bb.cpu().numpy()
etax_ref = etaqx - etaqx_id
etay_ref = etaqy - etaqy_id
etax_res = etaqx - etaqx_result
etay_res = etaqy - etaqy_result
rms_etax_ref = rms(etax_ref).item()
ptp_etax_ref = (etax_ref.max() - etax_ref.min()).item()
rms_etay_ref = rms(etay_ref).item()
ptp_etay_ref = (etay_ref.max() - etay_ref.min()).item()
rms_etax_res = rms(etax_res).item()
ptp_etax_res = (etax_res.max() - etax_res.min()).item()
rms_etay_res = rms(etay_res).item()
ptp_etay_res = (etay_res.max() - etay_res.min()).item()
etax_ref_np = etax_ref.cpu().numpy()
etay_ref_np = etay_ref.cpu().numpy()
etax_res_np = etax_res.cpu().numpy()
etay_res_np = etay_res.cpu().numpy()
fig, ax = plt.subplots(
1, 1, figsize=(16, 6),
sharex=True,
gridspec_kw={'hspace': 0.3}
)
fig.subplots_adjust(top=0.85, bottom=0.35)
ax.errorbar(s, bx_ref_np, fmt='-', marker='x', color='blue', alpha=0.75, lw=1.5, label=r'initial, $\beta_x$')
ax.errorbar(s, by_ref_np, fmt='-', marker='x', color='red', alpha=0.75, lw=1.5, label=r'initial, $\beta_y$')
ax.errorbar(s, bx_res_np, fmt='-', marker='o', color='blue', alpha=0.75, lw=1.5, label=r'final, $\beta_x$')
ax.errorbar(s, by_res_np, fmt='-', marker='o', color='red', alpha=0.75, lw=1.5, label=r'final, $\beta_y$')
ax.set_xlabel('s [m]', fontsize=18)
ax.set_ylabel(r'$\Delta \beta / \beta$ [\%]', fontsize=18)
ax.tick_params(width=2, labelsize=16)
ax.tick_params(axis='x', length=8, direction='in')
ax.tick_params(axis='y', length=8, direction='in')
title = (
rf'RMS$_x$={rms_x_ref:05.2f}\% \quad RMS$_y$={rms_y_ref:05.2f}\% \quad '
rf'PTP$_x$={ptp_x_ref:05.2f}\% \quad PTP$_y$={ptp_y_ref:05.2f}\% \quad '
rf'$\Delta \nu_x$={(lambda x: '-' if x < 0 else '~')(nux - nux_id)}{(nux - nux_id).abs().item():.4f} \quad $\Delta \nu_y$={(lambda x: '-' if x < 0 else '~')(nuy - nuy_id)}{(nuy - nuy_id).abs().item():.4f}'
rf'\quad C={c_id.item():.6f}'
)
ax.text(0.0, 1.125, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_x_res:05.2f}\% \quad RMS$_y$={rms_y_res:05.2f}\% \quad '
rf'PTP$_x$={ptp_x_res:05.2f}\% \quad PTP$_y$={ptp_y_res:05.2f}\% \quad '
rf'$\Delta \nu_x$={(lambda x: '-' if x < 0 else '~')(nux - nux_result)}{(nux - nux_result).abs().item():.4f} \quad $\Delta \nu_y$={(lambda x: '-' if x < 0 else '~')(nuy - nuy_result)}{(nuy - nuy_result).abs().item():.4f}'
rf'\quad C={c_result.item():.6f}'
)
ax.text(0.0, 1.025, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'$(\xi_x, \xi_y)$ = ({psi_x.item():.2f}, {psi_y.item():.2f}) $\to$ ({psi_id_x.item():.2f}, {psi_id_y.item():.2f}) $\to$ ({psi_result_x.item():.2f}, {psi_result_y.item():.2f})'
)
ax.text(0.0, -0.25 - 0*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_etax_ref:.4E} m \quad RMS$_y$={rms_etay_ref:.4E} m \quad '
rf'PTP$_x$={ptp_etax_ref:.4E} m \quad PTP$_y$={ptp_etay_ref:.4E} m \quad '
)
ax.text(0.0, -0.25 - 1*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_etax_res:.4E} m \quad RMS$_y$={rms_etay_res:.4E} m \quad '
rf'PTP$_x$={ptp_etax_res:.4E} m \quad PTP$_y$={ptp_etay_res:.4E} m \quad '
)
ax.text(0.0, -0.25 - 2*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
ax.legend(loc='upper right', frameon=False, fontsize=14, ncol=4)
ax.set_ylim(-20, 20)
plt.setp(ax.spines.values(), linewidth=2.0)
plt.show()
[47]:
# Beta-beating
bx_ref_bb = 100.0*(bx - bx_id) / bx
by_ref_bb = 100.0*(by - by_id) / by
bx_res_bb = 100.0*(bx - bx_result)/ bx
by_res_bb = 100.0*(by - by_result)/ by
def rms(x):
return (x**2).mean().sqrt()
rms_x_ref = rms(bx_ref_bb).item()
ptp_x_ref = (bx_ref_bb.max() - bx_ref_bb.min()).item()
rms_y_ref = rms(by_ref_bb).item()
ptp_y_ref = (by_ref_bb.max() - by_ref_bb.min()).item()
rms_x_res = rms(bx_res_bb).item()
ptp_x_res = (bx_res_bb.max() - bx_res_bb.min()).item()
rms_y_res = rms(by_res_bb).item()
ptp_y_res = (by_res_bb.max() - by_res_bb.min()).item()
s = ring.locations().cpu().numpy()
bx_ref_np = bx_ref_bb.cpu().numpy()
by_ref_np = by_ref_bb.cpu().numpy()
bx_res_np = bx_res_bb.cpu().numpy()
by_res_np = by_res_bb.cpu().numpy()
etax_ref = etaqx - etaqx_id
etay_ref = etaqy - etaqy_id
etax_res = etaqx - etaqx_result
etay_res = etaqy - etaqy_result
rms_etax_ref = rms(etax_ref).item()
ptp_etax_ref = (etax_ref.max() - etax_ref.min()).item()
rms_etay_ref = rms(etay_ref).item()
ptp_etay_ref = (etay_ref.max() - etay_ref.min()).item()
rms_etax_res = rms(etax_res).item()
ptp_etax_res = (etax_res.max() - etax_res.min()).item()
rms_etay_res = rms(etay_res).item()
ptp_etay_res = (etay_res.max() - etay_res.min()).item()
etax_ref_np = etax_ref.cpu().numpy()
etay_ref_np = etay_ref.cpu().numpy()
etax_res_np = etax_res.cpu().numpy()
etay_res_np = etay_res.cpu().numpy()
fig, ax = plt.subplots(
1, 1, figsize=(16, 6),
sharex=True,
gridspec_kw={'hspace': 0.3}
)
fig.subplots_adjust(top=0.85, bottom=0.35)
# ax.errorbar(s, bx_ref_np, fmt='-', marker='x', color='blue', alpha=0.75, lw=1.5, label=r'initial, $\beta_x$')
# ax.errorbar(s, by_ref_np, fmt='-', marker='x', color='red', alpha=0.75, lw=1.5, label=r'initial, $\beta_y$')
ax.errorbar(s, bx_res_np, fmt='-', marker='o', color='blue', alpha=0.75, lw=1.5, label=r'final, $\beta_x$')
ax.errorbar(s, by_res_np, fmt='-', marker='o', color='red', alpha=0.75, lw=1.5, label=r'final, $\beta_y$')
ax.set_xlabel('s [m]', fontsize=18)
ax.set_ylabel(r'$\Delta \beta / \beta$ [\%]', fontsize=18)
ax.tick_params(width=2, labelsize=16)
ax.tick_params(axis='x', length=8, direction='in')
ax.tick_params(axis='y', length=8, direction='in')
title = (
rf'RMS$_x$={rms_x_ref:05.2f}\% \quad RMS$_y$={rms_y_ref:05.2f}\% \quad '
rf'PTP$_x$={ptp_x_ref:05.2f}\% \quad PTP$_y$={ptp_y_ref:05.2f}\% \quad '
rf'$\Delta \nu_x$={(lambda x: '-' if x < 0 else '~')(nux - nux_id)}{(nux - nux_id).abs().item():.4f} \quad $\Delta \nu_y$={(lambda x: '-' if x < 0 else '~')(nuy - nuy_id)}{(nuy - nuy_id).abs().item():.4f}'
rf'\quad C={c_id.item():.6f}'
)
ax.text(0.0, 1.125, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_x_res:05.2f}\% \quad RMS$_y$={rms_y_res:05.2f}\% \quad '
rf'PTP$_x$={ptp_x_res:05.2f}\% \quad PTP$_y$={ptp_y_res:05.2f}\% \quad '
rf'$\Delta \nu_x$={(lambda x: '-' if x < 0 else '~')(nux - nux_result)}{(nux - nux_result).abs().item():.4f} \quad $\Delta \nu_y$={(lambda x: '-' if x < 0 else '~')(nuy - nuy_result)}{(nuy - nuy_result).abs().item():.4f}'
rf'\quad C={c_result.item():.6f}'
)
ax.text(0.0, 1.025, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'$(\xi_x, \xi_y)$ = ({psi_x.item():.2f}, {psi_y.item():.2f}) $\to$ ({psi_id_x.item():.2f}, {psi_id_y.item():.2f}) $\to$ ({psi_result_x.item():.2f}, {psi_result_y.item():.2f})'
)
ax.text(0.0, -0.25 - 0*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_etax_ref:.4E} m \quad RMS$_y$={rms_etay_ref:.4E} m \quad '
rf'PTP$_x$={ptp_etax_ref:.4E} m \quad PTP$_y$={ptp_etay_ref:.4E} m \quad '
)
ax.text(0.0, -0.25 - 1*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_etax_res:.4E} m \quad RMS$_y$={rms_etay_res:.4E} m \quad '
rf'PTP$_x$={ptp_etax_res:.4E} m \quad PTP$_y$={ptp_etay_res:.4E} m \quad '
)
ax.text(0.0, -0.25 - 2*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
ax.legend(loc='upper right', frameon=False, fontsize=14, ncol=4)
ax.set_ylim(-7, 7)
plt.setp(ax.spines.values(), linewidth=2.0)
plt.show()
[43]:
# Initial and final values
QF = [f'QF_S{i:02}_{j:02}' for j in [2, 3] for i in range(1, 12 + 1)]
QD = [f'QD_S{i:02}_{j:02}' for j in [2, 3] for i in range(1, 12 + 1)]
nkn = ['OCT_S01_02', 'QF_S01_02', 'QD_S01_02', 'QD_S01_03', 'QF_S01_03', 'OCT_S01_03']
nks = ['SD_S01_05', 'SH_S01_02', 'SH_S01_03', 'SD_S01_06']
ring.flatten()
kni = {name: ring[name].kn.item() for name in nkn}
ksi = {name: ring[name].ks.item() for name in nks}
kfi = {name: ring[name].kn.item() for name in QF}
kdi = {name: ring[name].kn.item() for name in QD}
ring.splice()
error.flatten()
knf = {name: error[name].kn.item() for name in nkn}
ksf = {name: error[name].ks.item() for name in nks}
kff = {name: error[name].kn.item() for name in QF}
kdf = {name: error[name].kn.item() for name in QD}
error.splice()
[44]:
# Global
gkfi = [kfi[name] for name in kfi if name not in nkn]
gkdi = [kdi[name] for name in kdi if name not in nkn]
gkfi, *_ = gkfi
gkdi, *_ = gkdi
gkff = [kff[name] for name in kff if name not in nkn]
gkdf = [kdf[name] for name in kdf if name not in nkn]
gkff, *_ = gkff
gkdf, *_ = gkdf
dkf = [(kff[name] - kfi[name]) for name in kfi if name not in nkn]
dkd = [(kdf[name] - kdi[name]) for name in kdi if name not in nkn]
dkf_abs, *_ = dkf
dkd_abs, *_ = dkd
gk_abs = {'DKF': dkf_abs, 'DKD': dkd_abs}
dkf = [(kff[name]/kfi[name] - 1) for name in kfi if name not in nkn]
dkd = [(kdf[name]/kdi[name] - 1) for name in kdi if name not in nkn]
dkf_fse, *_ = dkf
dkd_fse, *_ = dkd
gk_fse = {'DKF': dkf_fse, 'DKD': dkd_fse}
print(gk_abs)
print(gk_fse)
{'DKF': 0.0, 'DKD': 0.0}
{'DKF': 0.0, 'DKD': 0.0}
[45]:
# Local
dkn_fse = {name: knf[name]/kni[name] - 1 for name in kni}
dkn_abs = {name: knf[name] - kni[name]for name in kni}
dks_fse = {name: 0 for name in ksi}
dks_abs = {name: ksf[name] - ksi[name] for name in ksi}
[46]:
import numpy as np
import matplotlib.pyplot as plt
gap = 1
n_kn = len(dkn_abs)
n_dk = len(gk_abs)
n_ks = len(dks_abs)
y_kn = np.arange(n_kn)
y_dk = np.arange(n_dk) + n_kn + gap
y_ks = np.arange(n_ks) + n_kn + n_dk + 2*gap
yticks = np.concatenate([y_kn, y_dk, y_ks])
yticklabels = [*kni.keys()] + [*gk_abs.keys()] + [*ksi.keys()]
fig, (ax_abs, ax_fse) = plt.subplots(1, 2, figsize=(12, 6), sharey=True)
ax_abs.barh(y_dk, [gkfi, gkdi], height=0.6, color='red', alpha=0.75, label='initial')
ax_abs.barh(y_dk, [gkff, gkdf], height=0.5, color='blue', alpha=0.75, label='final')
ax_abs.barh(y_dk, [gk_abs['DKF'], gk_abs['DKD']], height=0.6, color='black', alpha=1, label='delta')
ax_abs.barh(y_kn, kni.values(), height=0.6, color='red', alpha=0.75)
ax_abs.barh(y_kn, knf.values(), height=0.5, color='blue', alpha=0.75)
ax_abs.barh(y_kn, list(dkn_abs.values()), height=0.6, color='black', alpha=1)
ax_abs.legend(loc=(0.01, 0.775), frameon=False, fontsize=16, ncol=1)
ax_abs.set_xlim(-6, 6)
ax_abs.set_xlabel(r'$k_n$', fontsize=16)
ax_abs.tick_params(axis='x', labelsize=16)
ax_abs = ax_abs.twiny()
ax_abs.barh(y_ks, ksi.values(), height=0.6, color='red', alpha=0.75)
ax_abs.barh(y_ks, ksf.values(), height=0.5, color='blue', alpha=0.75)
ax_abs.barh(y_ks, list(dks_abs.values()), height=0.6, color='black', alpha=1)
ax_abs.set_xlim(-0.005, 0.005)
ax_abs.set_yticks(yticks)
ax_abs.set_yticklabels(yticklabels, fontsize=16)
ax_abs.axvline(0.0, color='black', linewidth=1.0, linestyle='--', alpha=0.5)
ax_abs.set_xlabel(r'$k_s$', fontsize=16)
ax_abs.tick_params(axis='x', labelsize=16)
ax_abs.tick_params(axis='y', labelsize=16)
ax_fse.barh(y_dk, gk_fse.values(), height=0.6, color='black', alpha=1)
ax_fse.barh(y_kn, dkn_fse.values(), height=0.6, color='black', alpha=1)
ax_fse.set_xlim(-25/100, 25/100)
ax_fse.axvline(0.0, color='black', linewidth=1.0, linestyle='--', alpha=0.5)
ax_fse.set_xlabel(r'FSE', fontsize=16)
ax_fse.tick_params(axis='x', labelsize=16)
ax_fse.tick_params(axis='y', labelsize=16)
plt.setp(ax_abs.spines.values(), linewidth=2.0)
plt.setp(ax_fse.spines.values(), linewidth=2.0)
plt.tight_layout()
plt.show()
advance (local)
[1]:
# Import
import torch
from torch import Tensor
from pathlib import Path
import matplotlib
from matplotlib import pyplot as plt
from matplotlib.patches import Rectangle
matplotlib.rcParams['text.usetex'] = True
from model.library.element import Element
from model.library.line import Line
from model.library.quadrupole import Quadrupole
from model.library.matrix import Matrix
from model.command.external import load_lattice
from model.command.build import build
from model.command.tune import tune
from model.command.tune import chromaticity
from model.command.orbit import dispersion
from model.command.twiss import twiss
from model.command.advance import advance
from model.command.coupling import coupling
from model.command.wrapper import Wrapper
from model.command.wrapper import forward
from model.command.wrapper import inverse
from model.command.wrapper import normalize
[2]:
# Set data type and device
Element.dtype = dtype = torch.float64
Element.device = device = torch.device('cpu')
[3]:
# Load lattice (ELEGANT table)
# Note, lattice is allowed to have repeated elements
path = Path('elettra.lte')
data = load_lattice(path)
[4]:
# Build and setup lattice
ring:Line = build('RING', 'ELEGANT', data)
# Flatten sublines
ring.flatten()
# Remove all marker elements but the ones starting with MLL (long straight section centers)
ring.remove_group(pattern=r'^(?!MLL_).*', kinds=['Marker'])
# Replace all sextupoles with quadrupoles
def factory(element:Element) -> None:
table = element.serialize
table.pop('ms', None)
return Quadrupole(**table)
ring.replace_group(pattern=r'', factory=factory, kinds=['Sextupole'])
# Set linear dipoles
def apply(element:Element) -> None:
element.linear = True
ring.apply(apply, kinds=['Dipole'])
# Merge drifts
ring.merge()
# Change lattice start
ring.start = "BPM_S01_01"
# Split BPMs
ring.split((None, ['BPM'], None, None))
# Roll lattice
ring.roll(1)
# Splice lattice
ring.splice()
# Describe
ring.describe
[4]:
{'BPM': 168, 'Drift': 708, 'Dipole': 156, 'Quadrupole': 360, 'Marker': 12}
[5]:
# Compute tunes (fractional part)
nux, nuy = tune(ring, [], matched=True, limit=1)
[6]:
# Compute dispersion
orbit = torch.tensor(4*[0.0], dtype=dtype)
etaqx, etapx, etaqy, etapy = dispersion(ring, orbit, [], limit=1)
[7]:
# Compute twiss parameters
ax, bx, ay, by = twiss(ring, [], matched=True, advance=True, full=False).T
[8]:
# Compute phase advances
mux, muy = advance(ring, [], alignment=False, matched=True).T
[9]:
# Compute coupling
c = coupling(ring, [])
[10]:
# Compute chromaticity
psi = chromaticity(ring, [])
[11]:
# Quadrupole names for global tune correction
QF = [f'QF_S{i:02}_{j:02}' for j in [2, 3] for i in range(1, 12 + 1)]
QD = [f'QD_S{i:02}_{j:02}' for j in [2, 3] for i in range(1, 12 + 1)]
[12]:
# Global tune responce matrix
def global_observable(knobs):
kf, kd = knobs
kn = torch.stack(len(QF)*[kf] + len(QD)*[kd])
return tune(ring, [kn], ('kn', None, QF + QD, None), matched=True, limit=1)
knobs = torch.tensor([0.0, 0.0], dtype=dtype)
global_target = global_observable(knobs)
global_matrix = torch.func.jacfwd(global_observable)(knobs)
print(global_target)
print(global_matrix)
tensor([0.2994, 0.1608], dtype=torch.float64)
tensor([[ 5.8543, 2.0964],
[-2.9918, -1.2602]], dtype=torch.float64)
[13]:
# Several local knobs can be used to correct ID effects
# Normal quadrupole correctors
nkn = ['OCT_S01_02', 'QF_S01_02', 'QD_S01_02', 'QD_S01_03', 'QF_S01_03', 'OCT_S01_03']
# Skew quadrupole correctors
nks = ['SD_S01_05', 'SH_S01_02', 'SH_S01_03', 'SD_S01_06']
[14]:
# Define knobs to magnets mixing matrices
Sn = torch.tensor([[1.0, 0.0, 0.0], [0.0, 1.0, 0.0], [0.0, 0.0, 1.0], [0.0, 0.0, 1.0], [0.0, 1.0, 0.0], [1.0, 0.0, 0.0]], dtype=dtype)
print(Sn)
print()
Ss = torch.tensor([[+1.0, 0.0], [0.0, +1.0], [0.0, -1.0], [-1.0, 0.0]], dtype=dtype)
print(Ss)
print()
tensor([[1., 0., 0.],
[0., 1., 0.],
[0., 0., 1.],
[0., 0., 1.],
[0., 1., 0.],
[1., 0., 0.]], dtype=torch.float64)
tensor([[ 1., 0.],
[ 0., 1.],
[ 0., -1.],
[-1., 0.]], dtype=torch.float64)
[15]:
# Define advance observable
def observable_advance(kn, ks):
return advance(ring,
[kn, ks],
('kn', None, nkn, None),
('ks', None, nks, None),
matched=True)
[16]:
# Define dispersion observable
def observable_dispersion(kn, ks):
orbit = torch.tensor(4*[0.0], dtype=dtype)
etax, _, etay, _ = dispersion(ring,
orbit,
[kn, ks],
('kn', None, nkn, None),
('ks', None, nks, None))
return torch.stack([etax, etay]).T
[17]:
# Construct full target observable vector and corresponding responce matrix
def observable(knobs):
kn, ks = torch.split(knobs, [3, 2])
kn = Sn @ kn
ks = Ss @ ks
betas = observable_advance(kn, ks)
etas = observable_dispersion(kn, ks)
return torch.cat([betas.flatten(), etas.flatten()])
knobs = torch.tensor((3 + 2)*[0.0], dtype=dtype)
print((target := observable(knobs)).shape)
print((matrix := torch.func.jacfwd(observable)(knobs)).shape)
torch.Size([672])
torch.Size([672, 5])
[18]:
# Define ID model
# Note, only the flattened triangular part of the A and B matrices is passed
A = torch.tensor([[-0.03484222052711237, 1.0272120741819959E-7, -4.698931299341201E-9, 0.0015923185492594811],
[1.0272120579834892E-7, -0.046082787920135176, 0.0017792061173117564, 3.3551298301095784E-8],
[-4.6989312853101E-9, 0.0017792061173117072, 0.056853750760983084, -1.5929605363332683E-7],
[0.0015923185492594336, 3.3551298348653296E-8, -1.5929605261642905E-7, 0.08311631737263032]], dtype=dtype)
B = torch.tensor([[0.03649353186115209, 0.0015448347221877217, 0.00002719892025520868, -0.0033681183134964482],
[0.0015448347221877217, 0.13683886657005795, -0.0033198692682377406, 0.00006140578258682469],
[0.00002719892025520868, -0.0033198692682377406, -0.05260095308967722, 0.005019907688182885],
[-0.0033681183134964482, 0.00006140578258682469, 0.005019907688182885, -0.2531573249456863]], dtype=dtype)
ID = Matrix('ID',
length=0.0,
A=A[torch.triu(torch.ones_like(A, dtype=torch.bool))].tolist(),
B=B[torch.triu(torch.ones_like(B, dtype=torch.bool))].tolist())
[19]:
# Insert ID into the existing lattice
# This will replace the target marker
error = ring.clone()
error.flatten()
error.insert(ID, error.next('MLL_S01').name, position=0.0)
error.splice()
# Describe
error.describe
[19]:
{'BPM': 168,
'Drift': 709,
'Dipole': 156,
'Quadrupole': 360,
'Marker': 12,
'Matrix': 1}
[20]:
# Compute tunes (fractional part)
nux_id, nuy_id = tune(error, [], matched=True, limit=1)
[21]:
# Compute dispersion
orbit = torch.tensor(4*[0.0], dtype=dtype)
etaqx_id, etapx_id, etaqy_id, etapy_id = dispersion(error, orbit, [], limit=1)
[22]:
# Compute twiss parameters
ax_id, bx_id, ay_id, by_id = twiss(error, [], matched=True, advance=True, full=False).T
[23]:
# Compute phase advances
mux_id, muy_id = advance(error, [], alignment=False, matched=True).T
[24]:
# Compute coupling
c_id = coupling(error, [])
[25]:
# Compute hromaticity
psi_id = chromaticity(error, [])
[26]:
# Tune shifts
print((nux - nux_id))
print((nuy - nuy_id))
tensor(0.0260, dtype=torch.float64)
tensor(-0.0114, dtype=torch.float64)
[27]:
# Coupling (minimal tune distance)
print(c)
print(c_id)
tensor(0., dtype=torch.float64)
tensor(0.0004, dtype=torch.float64)
[28]:
# Chromaticity
print(psi)
print(psi_id)
tensor([-71.2093, -66.6787], dtype=torch.float64)
tensor([-72.2597, -66.6681], dtype=torch.float64)
[29]:
# Define parametric observable vector
def global_observable(knobs):
kf, kd = knobs
kn = torch.stack(len(QF)*[kf] + len(QD)*[kd])
return tune(error, [kn], ('kn', None, QF + QD, None), matched=True, limit=1)
def observable_advance(kn, ks):
return advance(error,
[kn, ks],
('kn', None, nkn, None),
('ks', None, nks, None),
matched=True)
def observable_dispersion(kn, ks):
orbit = torch.tensor(4*[0.0], dtype=dtype)
etax, _, etay, _ = dispersion(error,
orbit,
[kn, ks],
('kn', None, nkn, None),
('ks', None, nks, None))
return torch.stack([etax, etay]).T
def observable(knobs):
kn, ks = torch.split(knobs, [3, 2])
kn = Sn @ kn
ks = Ss @ ks
betas = observable_advance(kn, ks)
etas = observable_dispersion(kn, ks)
return torch.cat([betas.flatten(), etas.flatten()])
[30]:
# Check the residual vector norm
global_knobs = torch.tensor(2*[0.0], dtype=dtype)
knobs = torch.tensor((3 + 2)*[0.0], dtype=dtype)
print(((global_observable(global_knobs) - global_target)**2).sum())
print(((observable(knobs) - target)**2).sum())
tensor(0.0008, dtype=torch.float64)
tensor(0.4812, dtype=torch.float64)
[31]:
# Optimization loop (local)
# Responce matrix (jacobian)
M = matrix.clone()
# Weighting covariance (sensitivity) matrix
epsilon = 1.0E-9
C = M @ M.T
C = C + epsilon*torch.eye(len(C), dtype=dtype)
# Cholesky decomposition
L = torch.linalg.cholesky(C)
# Whiten response
M = torch.linalg.solve_triangular(L, M, upper=False)
# Additional weights
# Can be used to extra weight selected observables, e.g. tunes
weights = torch.ones(len(M), dtype=dtype)
weights = weights.sqrt()
# Whiten response with additional weights
M = M*weights.unsqueeze(1)
# Iterative correction
lr = 0.75
# Initial value
knobs = torch.tensor((3 + 2)*[0.0], dtype=dtype)
# Correction loop
for _ in range(8):
value = observable(knobs)
residual = target - value
residual = torch.linalg.solve_triangular(L, residual.unsqueeze(-1), upper=False).squeeze(-1)
residual = residual*weights
delta = torch.linalg.lstsq(M, residual, driver="gels").solution
knobs += lr*delta
print(((value - target)**2).sum())
print()
tensor(0.4812, dtype=torch.float64)
tensor(0.0262, dtype=torch.float64)
tensor(0.0007, dtype=torch.float64)
tensor(0.0001, dtype=torch.float64)
tensor(0.0001, dtype=torch.float64)
tensor(0.0001, dtype=torch.float64)
tensor(0.0001, dtype=torch.float64)
tensor(0.0001, dtype=torch.float64)
[32]:
# Knob values
kn, ks = torch.split(knobs, [3, 2])
kn = Sn @ kn
ks = Ss @ ks
print(kn.numpy())
print(ks.numpy())
[-0.03953849 -0.18218742 0.65489026 0.65489026 -0.18218742 -0.03953849]
[-3.65464381e-09 -2.14039357e-03 2.14039357e-03 3.65464381e-09]
[33]:
# Apply final corrections
error.flatten()
print()
print('kn:')
for name, knob in zip(nkn, kn):
print(f'{name:<10}: {knob.numpy():>20}: {error[name].kn.numpy():>20} -> {(error[name].kn + knob).numpy():>20}, FSE: {((error[name].kn + knob)/error[name].kn - 1).numpy():>20}')
error[name].kn = (error[name].kn + knob).item()
print()
print('ks:')
for name, knob in zip(nks, ks):
print(f'{name:<10}: {knob.numpy():>20}: {error[name].ks.numpy():>20} -> {(error[name].ks + knob).numpy():>20}')
error[name].ks = (error[name].ks + knob).item()
error.splice()
kn:
OCT_S01_02: -0.03953849341840344: -0.29359999999999903 -> -0.33313849341840246, FSE: 0.1346678931144536
QF_S01_02 : -0.18218742155108172: 5.479408293511701 -> 5.297220871960619, FSE: -0.03324946997777378
QD_S01_02 : 0.6548902571935666: -3.319999999999998 -> -2.6651097428064316, FSE: -0.19725610156432738
QD_S01_03 : 0.6548902571935666: -3.319999999999998 -> -2.6651097428064316, FSE: -0.19725610156432738
QF_S01_03 : -0.18218742155108172: 5.479408293511701 -> 5.297220871960619, FSE: -0.03324946997777378
OCT_S01_03: -0.03953849341840344: -0.29359999999999903 -> -0.33313849341840246, FSE: 0.1346678931144536
ks:
SD_S01_05 : -3.65464380817924e-09: 0.0 -> -3.65464380817924e-09
SH_S01_02 : -0.002140393567505922: 0.0 -> -0.002140393567505922
SH_S01_03 : 0.002140393567505922: 0.0 -> 0.002140393567505922
SD_S01_06 : 3.65464380817924e-09: 0.0 -> 3.65464380817924e-09
[34]:
# Check
print(((global_observable(0.0*global_knobs) - global_target)**2).sum())
print(((observable(0.0*knobs) - target)**2).sum())
tensor(6.9220e-06, dtype=torch.float64)
tensor(0.0001, dtype=torch.float64)
[35]:
# Compute tunes (fractional part)
nux_result, nuy_result = tune(error, [], matched=True, limit=1)
[36]:
# Compute dispersion
orbit = torch.tensor(4*[0.0], dtype=dtype)
etaqx_result, etapx_result, etaqy_result, etapy_result = dispersion(error, orbit, [], limit=1)
[37]:
# Compute twiss parameters
ax_result, bx_result, ay_result, by_result = twiss(error, [], matched=True, advance=True, full=False).T
[38]:
# Compute phase advances
mux_result, muy_result = advance(error, [], alignment=False, matched=True).T
[39]:
# Compute coupling
c_result = coupling(error, [])
[40]:
# Compute chromaticity
psi_result = chromaticity(error, [])
[41]:
# Tune shifts
print((nux - nux_id).abs())
print((nuy - nuy_id).abs())
print()
print((nux - nux_result).abs())
print((nuy - nuy_result).abs())
print()
tensor(0.0260, dtype=torch.float64)
tensor(0.0114, dtype=torch.float64)
tensor(0.0011, dtype=torch.float64)
tensor(0.0024, dtype=torch.float64)
[42]:
# Coupling (minimal tune distance)
print(c)
print(c_id)
print(c_result)
tensor(0., dtype=torch.float64)
tensor(0.0004, dtype=torch.float64)
tensor(4.0273e-05, dtype=torch.float64)
[43]:
# Chromaticity
(psi_x, psi_y) = psi
(psi_id_x, psi_id_y) = psi_id
(psi_result_x, psi_result_y) =psi_result
print(psi_x, psi_y)
print(psi_id_x, psi_id_y)
print(psi_result_x, psi_result_y)
tensor(-71.2093, dtype=torch.float64) tensor(-66.6787, dtype=torch.float64)
tensor(-72.2597, dtype=torch.float64) tensor(-66.6681, dtype=torch.float64)
tensor(-71.1746, dtype=torch.float64) tensor(-66.6894, dtype=torch.float64)
[44]:
# Beta-beating
bx_ref_bb = 100.0*(bx - bx_id) / bx
by_ref_bb = 100.0*(by - by_id) / by
bx_res_bb = 100.0*(bx - bx_result)/ bx
by_res_bb = 100.0*(by - by_result)/ by
def rms(x):
return (x**2).mean().sqrt()
rms_x_ref = rms(bx_ref_bb).item()
ptp_x_ref = (bx_ref_bb.max() - bx_ref_bb.min()).item()
rms_y_ref = rms(by_ref_bb).item()
ptp_y_ref = (by_ref_bb.max() - by_ref_bb.min()).item()
rms_x_res = rms(bx_res_bb).item()
ptp_x_res = (bx_res_bb.max() - bx_res_bb.min()).item()
rms_y_res = rms(by_res_bb).item()
ptp_y_res = (by_res_bb.max() - by_res_bb.min()).item()
s = ring.locations().cpu().numpy()
bx_ref_np = bx_ref_bb.cpu().numpy()
by_ref_np = by_ref_bb.cpu().numpy()
bx_res_np = bx_res_bb.cpu().numpy()
by_res_np = by_res_bb.cpu().numpy()
etax_ref = etaqx - etaqx_id
etay_ref = etaqy - etaqy_id
etax_res = etaqx - etaqx_result
etay_res = etaqy - etaqy_result
rms_etax_ref = rms(etax_ref).item()
ptp_etax_ref = (etax_ref.max() - etax_ref.min()).item()
rms_etay_ref = rms(etay_ref).item()
ptp_etay_ref = (etay_ref.max() - etay_ref.min()).item()
rms_etax_res = rms(etax_res).item()
ptp_etax_res = (etax_res.max() - etax_res.min()).item()
rms_etay_res = rms(etay_res).item()
ptp_etay_res = (etay_res.max() - etay_res.min()).item()
etax_ref_np = etax_ref.cpu().numpy()
etay_ref_np = etay_ref.cpu().numpy()
etax_res_np = etax_res.cpu().numpy()
etay_res_np = etay_res.cpu().numpy()
fig, ax = plt.subplots(
1, 1, figsize=(16, 6),
sharex=True,
gridspec_kw={'hspace': 0.3}
)
fig.subplots_adjust(top=0.85, bottom=0.35)
ax.errorbar(s, bx_ref_np, fmt='-', marker='x', color='blue', alpha=0.75, lw=1.5, label=r'initial, $\beta_x$')
ax.errorbar(s, by_ref_np, fmt='-', marker='x', color='red', alpha=0.75, lw=1.5, label=r'initial, $\beta_y$')
ax.errorbar(s, bx_res_np, fmt='-', marker='o', color='blue', alpha=0.75, lw=1.5, label=r'final, $\beta_x$')
ax.errorbar(s, by_res_np, fmt='-', marker='o', color='red', alpha=0.75, lw=1.5, label=r'final, $\beta_y$')
ax.set_xlabel('s [m]', fontsize=18)
ax.set_ylabel(r'$\Delta \beta / \beta$ [\%]', fontsize=18)
ax.tick_params(width=2, labelsize=16)
ax.tick_params(axis='x', length=8, direction='in')
ax.tick_params(axis='y', length=8, direction='in')
title = (
rf'RMS$_x$={rms_x_ref:05.2f}\% \quad RMS$_y$={rms_y_ref:05.2f}\% \quad '
rf'PTP$_x$={ptp_x_ref:05.2f}\% \quad PTP$_y$={ptp_y_ref:05.2f}\% \quad '
rf'$\Delta \nu_x$={(lambda x: '-' if x < 0 else '~')(nux - nux_id)}{(nux - nux_id).abs().item():.4f} \quad $\Delta \nu_y$={(lambda x: '-' if x < 0 else '~')(nuy - nuy_id)}{(nuy - nuy_id).abs().item():.4f}'
rf'\quad C={c_id.item():.6f}'
)
ax.text(0.0, 1.125, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_x_res:05.2f}\% \quad RMS$_y$={rms_y_res:05.2f}\% \quad '
rf'PTP$_x$={ptp_x_res:05.2f}\% \quad PTP$_y$={ptp_y_res:05.2f}\% \quad '
rf'$\Delta \nu_x$={(lambda x: '-' if x < 0 else '~')(nux - nux_result)}{(nux - nux_result).abs().item():.4f} \quad $\Delta \nu_y$={(lambda x: '-' if x < 0 else '~')(nuy - nuy_result)}{(nuy - nuy_result).abs().item():.4f}'
rf'\quad C={c_result.item():.6f}'
)
ax.text(0.0, 1.025, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'$(\xi_x, \xi_y)$ = ({psi_x.item():.2f}, {psi_y.item():.2f}) $\to$ ({psi_id_x.item():.2f}, {psi_id_y.item():.2f}) $\to$ ({psi_result_x.item():.2f}, {psi_result_y.item():.2f})'
)
ax.text(0.0, -0.25 - 0*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_etax_ref:.4E} m \quad RMS$_y$={rms_etay_ref:.4E} m \quad '
rf'PTP$_x$={ptp_etax_ref:.4E} m \quad PTP$_y$={ptp_etay_ref:.4E} m \quad '
)
ax.text(0.0, -0.25 - 1*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_etax_res:.4E} m \quad RMS$_y$={rms_etay_res:.4E} m \quad '
rf'PTP$_x$={ptp_etax_res:.4E} m \quad PTP$_y$={ptp_etay_res:.4E} m \quad '
)
ax.text(0.0, -0.25 - 2*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
ax.legend(loc='upper right', frameon=False, fontsize=14, ncol=4)
ax.set_ylim(-20, 20)
plt.setp(ax.spines.values(), linewidth=2.0)
plt.show()
[45]:
# Initial and final values
QF = [f'QF_S{i:02}_{j:02}' for j in [2, 3] for i in range(1, 12 + 1)]
QD = [f'QD_S{i:02}_{j:02}' for j in [2, 3] for i in range(1, 12 + 1)]
nkn = ['OCT_S01_02', 'QF_S01_02', 'QD_S01_02', 'QD_S01_03', 'QF_S01_03', 'OCT_S01_03']
nks = ['SD_S01_05', 'SH_S01_02', 'SH_S01_03', 'SD_S01_06']
ring.flatten()
kni = {name: ring[name].kn.item() for name in nkn}
ksi = {name: ring[name].ks.item() for name in nks}
kfi = {name: ring[name].kn.item() for name in QF}
kdi = {name: ring[name].kn.item() for name in QD}
ring.splice()
error.flatten()
knf = {name: error[name].kn.item() for name in nkn}
ksf = {name: error[name].ks.item() for name in nks}
kff = {name: error[name].kn.item() for name in QF}
kdf = {name: error[name].kn.item() for name in QD}
error.splice()
[46]:
# Global
gkfi = [kfi[name] for name in kfi if name not in nkn]
gkdi = [kdi[name] for name in kdi if name not in nkn]
gkfi, *_ = gkfi
gkdi, *_ = gkdi
gkff = [kff[name] for name in kff if name not in nkn]
gkdf = [kdf[name] for name in kdf if name not in nkn]
gkff, *_ = gkff
gkdf, *_ = gkdf
dkf = [(kff[name] - kfi[name]) for name in kfi if name not in nkn]
dkd = [(kdf[name] - kdi[name]) for name in kdi if name not in nkn]
dkf_abs, *_ = dkf
dkd_abs, *_ = dkd
gk_abs = {'DKF': dkf_abs, 'DKD': dkd_abs}
dkf = [(kff[name]/kfi[name] - 1) for name in kfi if name not in nkn]
dkd = [(kdf[name]/kdi[name] - 1) for name in kdi if name not in nkn]
dkf_fse, *_ = dkf
dkd_fse, *_ = dkd
gk_fse = {'DKF': dkf_fse, 'DKD': dkd_fse}
print(gk_abs)
print(gk_fse)
{'DKF': 0.0, 'DKD': 0.0}
{'DKF': 0.0, 'DKD': 0.0}
[47]:
# Local
dkn_fse = {name: knf[name]/kni[name] - 1 for name in kni}
dkn_abs = {name: knf[name] - kni[name]for name in kni}
dks_fse = {name: 0 for name in ksi}
dks_abs = {name: ksf[name] - ksi[name] for name in ksi}
[48]:
import numpy as np
import matplotlib.pyplot as plt
gap = 1
n_kn = len(dkn_abs)
n_dk = len(gk_abs)
n_ks = len(dks_abs)
y_kn = np.arange(n_kn)
y_dk = np.arange(n_dk) + n_kn + gap
y_ks = np.arange(n_ks) + n_kn + n_dk + 2*gap
yticks = np.concatenate([y_kn, y_dk, y_ks])
yticklabels = [*kni.keys()] + [*gk_abs.keys()] + [*ksi.keys()]
fig, (ax_abs, ax_fse) = plt.subplots(1, 2, figsize=(12, 6), sharey=True)
ax_abs.barh(y_dk, [gkfi, gkdi], height=0.6, color='red', alpha=0.75, label='initial')
ax_abs.barh(y_dk, [gkff, gkdf], height=0.5, color='blue', alpha=0.75, label='final')
ax_abs.barh(y_dk, [gk_abs['DKF'], gk_abs['DKD']], height=0.6, color='black', alpha=1, label='delta')
ax_abs.barh(y_kn, kni.values(), height=0.6, color='red', alpha=0.75)
ax_abs.barh(y_kn, knf.values(), height=0.5, color='blue', alpha=0.75)
ax_abs.barh(y_kn, list(dkn_abs.values()), height=0.6, color='black', alpha=1)
ax_abs.legend(loc=(0.01, 0.775), frameon=False, fontsize=16, ncol=1)
ax_abs.set_xlim(-6, 6)
ax_abs.set_xlabel(r'$k_n$', fontsize=16)
ax_abs.tick_params(axis='x', labelsize=16)
ax_abs = ax_abs.twiny()
ax_abs.barh(y_ks, ksi.values(), height=0.6, color='red', alpha=0.75)
ax_abs.barh(y_ks, ksf.values(), height=0.5, color='blue', alpha=0.75)
ax_abs.barh(y_ks, list(dks_abs.values()), height=0.6, color='black', alpha=1)
ax_abs.set_xlim(-0.005, 0.005)
ax_abs.set_yticks(yticks)
ax_abs.set_yticklabels(yticklabels, fontsize=16)
ax_abs.axvline(0.0, color='black', linewidth=1.0, linestyle='--', alpha=0.5)
ax_abs.set_xlabel(r'$k_s$', fontsize=16)
ax_abs.tick_params(axis='x', labelsize=16)
ax_abs.tick_params(axis='y', labelsize=16)
ax_fse.barh(y_dk, gk_fse.values(), height=0.6, color='black', alpha=1)
ax_fse.barh(y_kn, dkn_fse.values(), height=0.6, color='black', alpha=1)
ax_fse.set_xlim(-25/100, 25/100)
ax_fse.axvline(0.0, color='black', linewidth=1.0, linestyle='--', alpha=0.5)
ax_fse.set_xlabel(r'FSE', fontsize=16)
ax_fse.tick_params(axis='x', labelsize=16)
ax_fse.tick_params(axis='y', labelsize=16)
plt.setp(ax_abs.spines.values(), linewidth=2.0)
plt.setp(ax_fse.spines.values(), linewidth=2.0)
plt.tight_layout()
plt.show()
