ELETTRA-49: ID effects and correction (full example)
[1]:
# In this example effects on the linear optics from different ID models are compared
# Corrections for the Radia's RK are computed using local/global (CT) and local (ORM) methods
Import
[2]:
# Import
import torch
from torch import Tensor
from pathlib import Path
from tqdm import tqdm
import matplotlib
from matplotlib import pyplot as plt
from matplotlib.patches import Rectangle
matplotlib.rcParams['text.usetex'] = True
from model.library.element import Element
from model.library.line import Line
from model.library.corrector import Corrector
from model.library.quadrupole import Quadrupole
from model.library.matrix import Matrix
from model.command.external import load_lattice
from model.command.build import build
from model.command.tune import tune
from model.command.tune import chromaticity
from model.command.orbit import dispersion
from model.command.orbit import ORM
from model.command.twiss import twiss
from model.command.advance import advance
from model.command.coupling import coupling
Data type & device
[3]:
# Set data type and device
Element.dtype = dtype = torch.float64
Element.device = device = torch.device('cpu')
Lattice
[4]:
# Load lattice (ELEGANT table)
# Note, lattice is allowed to have repeated elements
path = Path('elettra.lte')
data = load_lattice(path)
[5]:
# Build and setup lattice
ring:Line = build('RING', 'ELEGANT', data)
# Flatten sublines
ring.flatten()
# Remove all marker elements but the ones starting with MLL (long straight section centers)
ring.remove_group(pattern=r'^(?!MSS_)(?!MLL_).*', kinds=['Marker'])
# Replace all sextupoles with quadrupoles
def factory(element:Element) -> None:
table = element.serialize
table.pop('ms', None)
return Quadrupole(**table)
ring.replace_group(pattern=r'', factory=factory, kinds=['Sextupole'])
# Set linear dipoles
def apply(element:Element) -> None:
element.linear = True
ring.apply(apply, kinds=['Dipole'])
# Insert correctors
for name, *_ in ring.layout():
if name.startswith('CH'):
corrector = Corrector(f'{name}_CXY', factor=1)
ring.split((1 + 1, None, [name], None), paste=[corrector])
# Merge drifts
ring.merge()
# Change lattice start start
ring.start = "BPM_S01_01"
# Split BPMs
ring.split((None, ['BPM'], None, None))
# Roll lattice
ring.roll(1)
# Splice
ring.splice()
# Describe
ring.describe
[5]:
{'BPM': 168,
'Drift': 744,
'Dipole': 156,
'Quadrupole': 360,
'Corrector': 24,
'Marker': 24}
Optics (nominal)
[6]:
# Compute tunes (fractional part)
nux, nuy = tune(ring, [], matched=True, limit=1)
[7]:
# Compute dispersion
orbit = torch.tensor(4*[0.0], dtype=dtype, device=device)
etaqx, etapx, etaqy, etapy = dispersion(ring, orbit, [], limit=1)
[8]:
# Compute twiss parameters
ax, bx, ay, by = twiss(ring, [], matched=True, advance=True, full=False).T
[9]:
# Compute phase advances
mux, muy = advance(ring, [], alignment=False, matched=True).T
[10]:
# Compute coupling
c = coupling(ring, [])
[11]:
# Compute chromaticity
psi = chromaticity(ring, [])
Response matrices
[12]:
# Quadrupole names for global tune correction
nqf = [f'QF_S{i:02}_{j:02}' for j in [2, 3] for i in range(1, 12 + 1)]
nqd = [f'QD_S{i:02}_{j:02}' for j in [2, 3] for i in range(1, 12 + 1)]
[13]:
# Define tune observable
def global_observable(knobs):
kf, kd = knobs
kn = torch.stack(len(nqf)*[kf] + len(nqd)*[kd])
return tune(ring, [kn], ('kn', None, nqf + nqd, None), matched=True, limit=1)
[14]:
# Compute tune jacobian
knobs = torch.tensor([0.0, 0.0], dtype=dtype, device=device)
global_target = global_observable(knobs)
global_matrix = torch.func.jacrev(global_observable)(knobs)
print(global_target)
print(global_matrix)
tensor([0.2994, 0.1608], dtype=torch.float64)
tensor([[ 5.8543, 2.0964],
[-2.9918, -1.2602]], dtype=torch.float64)
[15]:
# Local knobs dictionary
table_nkn = {f'S{i:02}': [f'OCT_S{i:02}_02', f'QF_S{i:02}_02', f'QD_S{i:02}_02', f'QD_S{i:02}_03', f'QF_S{i:02}_03', f'OCT_S{i:02}_03'] for i in range(1, 12 + 1)}
table_nks = {f'S{i:02}': [f'SD_S{i:02}_05', f'SH_S{i:02}_02', f'SH_S{i:02}_03', f'SD_S{i:02}_06'] for i in range(1, 12 + 1)}
[16]:
# Define coupled twiss observable
def observable_twiss(kn, ks, nkn, nks):
return twiss(ring, [kn, ks], ('kn', None, nkn, None), ('ks', None, nks, None), matched=True, advance=True, full=False, convert=False)
[17]:
# Define dispersion observable
def observable_dispersion(kn, ks, nkn, nks):
orbit = torch.tensor(4*[0.0], dtype=dtype, device=device)
etax, _, etay, _ = dispersion(ring, orbit, [kn, ks], ('kn', None, nkn, None), ('ks', None, nks, None))
return torch.stack([etax, etay]).T
[18]:
# Define local & global observable
def observable(knobs, nkn, nks):
kn, ks = torch.split(knobs, [6, 4])
betas = observable_twiss(kn, ks, nkn, nks)
etas = observable_dispersion(kn, ks, nkn, nks)
return torch.cat([betas.flatten(), etas.flatten()])
[19]:
# Compute local & global jacobians
knobs = torch.tensor((6 + 4)*[0.0], dtype=dtype, device=device)
sections = [f'S{i:02}' for i in range(1, 12 + 1)]
ts_twiss = dict.fromkeys(sections)
ms_twiss = dict.fromkeys(sections)
for section in tqdm(sections):
ts_twiss[section] = observable(knobs, table_nkn[section], table_nks[section])
ms_twiss[section] = torch.func.jacfwd(observable)(knobs, table_nkn[section], table_nks[section])
100%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 12/12 [11:48<00:00, 59.08s/it]
[20]:
# Define ORM observable
def observable_orm(kn, ks, nkn, nks):
orm = ORM(ring, orbit, [kn, ks], ('kn', None, nkn, None), ('ks', None, nks, None), limit=1)
return orm
[21]:
# Define local observable
def observable(knobs, nkn, nks):
kn, ks = torch.split(knobs, [6, 4])
orm = observable_orm(kn, ks, nkn, nks)
return orm.flatten()
[22]:
# Compute local jacobians
knobs = torch.tensor((6 + 4)*[0.0], dtype=dtype, device=device)
sections = [f'S{i:02}' for i in range(1, 12 + 1)]
ts_orbit = dict.fromkeys(sections)
ms_orbit = dict.fromkeys(sections)
for section in tqdm(sections):
ts_orbit[section] = observable(knobs, table_nkn[section], table_nks[section])
ms_orbit[section] = torch.func.jacfwd(observable)(knobs, table_nkn[section], table_nks[section])
100%|████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████████| 12/12 [03:05<00:00, 15.45s/it]
[23]:
# Define correction containers
correction_twiss = dict.fromkeys(sections)
correction_orbit = dict.fromkeys(sections)
ID
[24]:
# EU100_L01 (GAP=19)
# Define ID transport matrices
# 1K -- Elleaume's potential (single kick for the whole ID)
# NK -- Elleaume's potential (one kick per ID period)
# RK -- Radia's RK
A1K = [[-0.0336671, 0., 0., 0.],
[0., 0., 0., 0.],
[0., 0., 0.0585246, 0.],
[0., 0., 0., 0.]]
ANK = [[-0.0344386, 0., 0., 0.],
[0., -0.0445673, 0., 0.],
[0., 0., 0.056303, 0.],
[0., 0., 0., 0.0804237]]
ARK = [[-0.0348424, 0., 0., 0.00159233],
[0., -0.0460831, 0.00177914, 0.],
[0., 0.00177914, 0.0568538, 0.],
[0.00159233, 0., 0., 0.0831168]]
A1K = torch.tensor(A1K, dtype=dtype)
ANK = torch.tensor(ANK, dtype=dtype)
ARK = torch.tensor(ARK, dtype=dtype)
CENTER = 0.0
ID_1K = Matrix('ID', length=0.0, A=A1K[torch.triu(torch.ones_like(A1K, dtype=torch.bool))].tolist())
ID_NK = Matrix('ID', length=0.0, A=ANK[torch.triu(torch.ones_like(ANK, dtype=torch.bool))].tolist())
ID_RK = Matrix('ID', length=0.0, A=ARK[torch.triu(torch.ones_like(ARK, dtype=torch.bool))].tolist())
[25]:
# Set ID section
section = 'S01'
target_twiss = ts_twiss[section]
matrix_twiss = ms_twiss[section]
target_orbit = ts_orbit[section]
matrix_orbit = ms_orbit[section]
nkn = table_nkn[section]
nks = table_nks[section]
[26]:
# Insert ID (1K model)
error = ring.clone()
error.flatten()
error.insert(ID_1K, error.next(f'MLL_{section}').name, position=CENTER*1.0E-3)
error.splice()
error.describe
[26]:
{'BPM': 168,
'Drift': 745,
'Dipole': 156,
'Quadrupole': 360,
'Corrector': 24,
'Marker': 24,
'Matrix': 1}
[27]:
# Compute tunes (fractional part)
nux_id_1k, nuy_id_1k = tune(error, [], matched=True, limit=1)
[28]:
# Compute dispersion
orbit = torch.tensor(4*[0.0], dtype=dtype)
etaqx_id_1k, etapx_id_1k, etaqy_id_1k, etapy_id_1k = dispersion(error, orbit, [], limit=1)
[29]:
# Compute twiss parameters
ax_id_1k, bx_id_1k, ay_id_1k, by_id_1k = twiss(error, [], matched=True, advance=True, full=False).T
[30]:
# Compute phase advances
mux_id_1k, muy_id_1k = advance(error, [], alignment=False, matched=True).T
[31]:
# Compute coupling
c_id_1k = coupling(error, [])
[32]:
# Compute chromaticity
psi_id_1k = chromaticity(error, [])
[33]:
# Insert ID (NK model)
error = ring.clone()
error.flatten()
error.insert(ID_NK, error.next(f'MLL_{section}').name, position=CENTER*1.0E-3)
error.splice()
error.describe
[33]:
{'BPM': 168,
'Drift': 745,
'Dipole': 156,
'Quadrupole': 360,
'Corrector': 24,
'Marker': 24,
'Matrix': 1}
[34]:
# Compute tunes (fractional part)
nux_id_nk, nuy_id_nk = tune(error, [], matched=True, limit=1)
[35]:
# Compute dispersion
orbit = torch.tensor(4*[0.0], dtype=dtype)
etaqx_id_nk, etapx_id_nk, etaqy_id_nk, etapy_id_nk = dispersion(error, orbit, [], limit=1)
[36]:
# Compute twiss parameters
ax_id_nk, bx_id_nk, ay_id_nk, by_id_nk = twiss(error, [], matched=True, advance=True, full=False).T
[37]:
# Compute phase advances
mux_id_nk, muy_id_nk = advance(error, [], alignment=False, matched=True).T
[38]:
# Compute coupling
c_id_nk = coupling(error, [])
[39]:
# Compute chromaticity
psi_id_nk = chromaticity(error, [])
[40]:
# Insert ID (RK model)
error = ring.clone()
error.flatten()
error.insert(ID_RK, error.next(f'MLL_{section}').name, position=CENTER*1.0E-3)
error.splice()
error.describe
[40]:
{'BPM': 168,
'Drift': 745,
'Dipole': 156,
'Quadrupole': 360,
'Corrector': 24,
'Marker': 24,
'Matrix': 1}
[41]:
# Compute tunes (fractional part)
nux_id, nuy_id = tune(error, [], matched=True, limit=1)
[42]:
# Compute dispersion
orbit = torch.tensor(4*[0.0], dtype=dtype)
etaqx_id, etapx_id, etaqy_id, etapy_id = dispersion(error, orbit, [], limit=1)
[43]:
# Compute twiss parameters
ax_id, bx_id, ay_id, by_id = twiss(error, [], matched=True, advance=True, full=False).T
[44]:
# Compute phase advances
mux_id, muy_id = advance(error, [], alignment=False, matched=True).T
[45]:
# Compute coupling
c_id = coupling(error, [])
[46]:
# Compute chromaticity
psi_id = chromaticity(error, [])
[47]:
# Tune shifts
print((nux - nux_id_1k))
print((nuy - nuy_id_1k))
print()
print((nux - nux_id_nk))
print((nuy - nuy_id_nk))
print()
print((nux - nux_id))
print((nuy - nuy_id))
print()
tensor(0.0247, dtype=torch.float64)
tensor(-0.0075, dtype=torch.float64)
tensor(0.0257, dtype=torch.float64)
tensor(-0.0112, dtype=torch.float64)
tensor(0.0260, dtype=torch.float64)
tensor(-0.0114, dtype=torch.float64)
[48]:
# Coupling (minimal tune distance)
print(c)
print(c_id_1k)
print(c_id_nk)
print(c_id)
tensor(0., dtype=torch.float64)
tensor(0., dtype=torch.float64)
tensor(0., dtype=torch.float64)
tensor(0.0004, dtype=torch.float64)
[49]:
# Chromaticity
print(psi)
print(psi_id_1k)
print(psi_id_nk)
print(psi_id)
tensor([-71.2093, -66.6787], dtype=torch.float64)
tensor([-72.2520, -66.6668], dtype=torch.float64)
tensor([-72.2653, -66.6485], dtype=torch.float64)
tensor([-72.2873, -66.6489], dtype=torch.float64)
[50]:

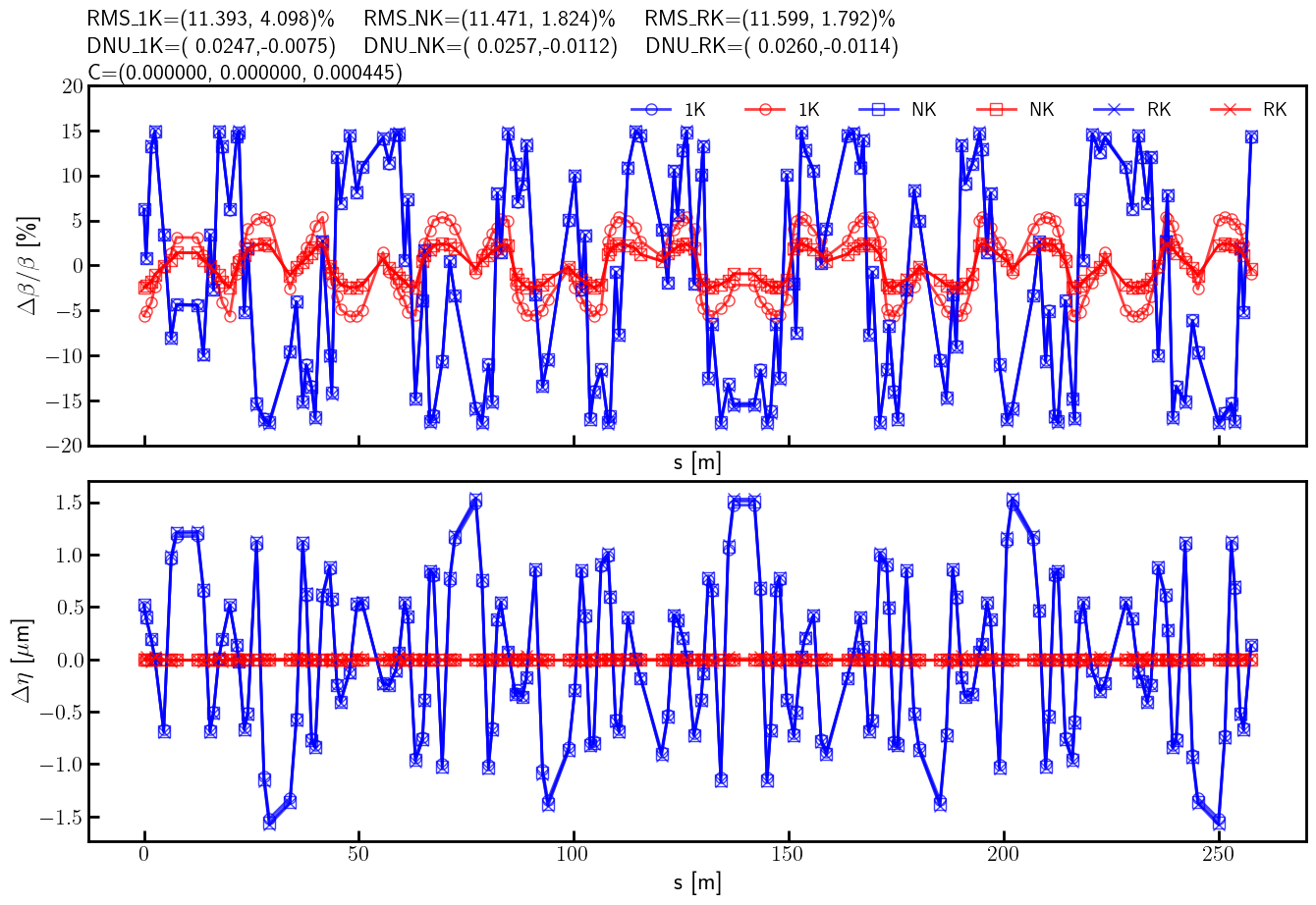

# Beta-beating and dispersion
def rms(x):
return (x**2).mean().sqrt()
bx_bb_1k = 100.0*(bx - bx_id_1k) / bx
by_bb_1k = 100.0*(by - by_id_1k) / by
bx_bb_nk = 100.0*(bx - bx_id_nk) / bx
by_bb_nk = 100.0*(by - by_id_nk) / by
bx_bb = 100.0*(bx - bx_id) / bx
by_bb = 100.0*(by - by_id) / by
rms_x_1k = rms(bx_bb_1k).item()
ptp_x_1k = (bx_bb_1k.max() - bx_bb_1k.min()).item()
rms_y_1k = rms(by_bb_1k).item()
ptp_y_1k = (by_bb_1k.max() - by_bb_1k.min()).item()
rms_x_nk = rms(bx_bb_nk).item()
ptp_x_nk = (bx_bb_nk.max() - bx_bb_nk.min()).item()
rms_y_nk = rms(by_bb_nk).item()
ptp_y_nk = (by_bb_nk.max() - by_bb_nk.min()).item()
rms_x = rms(bx_bb).item()
ptp_x = (bx_bb.max() - bx_bb.min()).item()
rms_y = rms(by_bb).item()
ptp_y = (by_bb.max() - by_bb.min()).item()
s = ring.locations().cpu().numpy()
bx_np_1k = bx_bb_1k.cpu().numpy()
by_np_1k = by_bb_1k.cpu().numpy()
bx_np_nk = bx_bb_nk.cpu().numpy()
by_np_nk = by_bb_nk.cpu().numpy()
bx_np = bx_bb.cpu().numpy()
by_np = by_bb.cpu().numpy()
etax_1k = etaqx - etaqx_id_1k
etay_1k = etaqy - etaqy_id_1k
etax_nk = etaqx - etaqx_id_nk
etay_nk = etaqy - etaqy_id_nk
etax = etaqx - etaqx_id
etay = etaqy - etaqy_id
rms_etax_1k = rms(etax_1k).item()
ptp_etax_1k = (etax_1k.max() - etax_1k.min()).item()
rms_etay_1k = rms(etay_1k).item()
ptp_etay_1k = (etay_1k.max() - etay_1k.min()).item()
rms_etax_nk = rms(etax_nk).item()
ptp_etax_nk = (etax_nk.max() - etax_nk.min()).item()
rms_etay_nk = rms(etay_nk).item()
ptp_etaf_nk = (etay_nk.max() - etay_nk.min()).item()
rms_etax = rms(etax).item()
ptp_etax = (etax.max() - etax.min()).item()
rms_etay = rms(etay).item()
ptp_etaf = (etay.max() - etay.min()).item()
etax_np_1k = etax_1k.cpu().numpy()
etay_np_1k = etay_1k.cpu().numpy()
etax_np_nk = etax_nk.cpu().numpy()
etay_np_nk = etay_nk.cpu().numpy()
etax_np = etax.cpu().numpy()
etay_np = etay.cpu().numpy()
fig, (ax, ay) = plt.subplots(2, 1, figsize=(16, 10), sharex=True, gridspec_kw={'hspace': 0.1})
ax.errorbar(s, bx_np_1k, fmt='-', marker='o', color='blue', alpha=0.75, lw=2.0, label=r'1K', markerfacecolor='none', ms=8)
ax.errorbar(s, by_np_1k, fmt='-', marker='o', color='red', alpha=0.75, lw=2.0, label=r'1K', markerfacecolor='none', ms=8)
ax.errorbar(s, bx_np_nk, fmt='-', marker='s', color='blue', alpha=0.75, lw=2.0, label=r'NK', markerfacecolor='none', ms=8)
ax.errorbar(s, by_np_nk, fmt='-', marker='s', color='red', alpha=0.75, lw=2.0, label=r'NK', markerfacecolor='none', ms=8)
ax.errorbar(s, bx_np, fmt='-', marker='x', color='blue', alpha=0.75, lw=2.0, label=r'RK', ms=8)
ax.errorbar(s, by_np, fmt='-', marker='x', color='red', alpha=0.75, lw=2.0, label=r'RK', ms=8)
ax.set_xlabel('s [m]', fontsize=18)
ax.set_ylabel(r'$\Delta \beta / \beta$ [\%]', fontsize=18)
ax.tick_params(width=2, labelsize=16)
ax.tick_params(axis='x', length=8, direction='in')
ax.tick_params(axis='y', length=8, direction='in')
title = (
rf'RMS_1K=({rms_x_1k:6.3f},{rms_y_1k:6.3f})\% \quad '
rf'RMS_NK=({rms_x_nk:6.3f},{rms_y_nk:6.3f})\% \quad '
rf'RMS_RK=({rms_x:6.3f},{rms_y:6.3f})\% \quad '
)
ax.text(0.0, 1.15, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'DNU_1K=({(lambda x: '-' if x < 0 else '~')(nux - nux_id_1k)}{(nux - nux_id_1k).abs().item():05.4f},{(lambda x: '-' if x < 0 else '~')(nuy - nuy_id_1k)}{(nuy - nuy_id_1k).abs().item():05.4f}) \quad '
rf'DNU_NK=({(lambda x: '-' if x < 0 else '~')(nux - nux_id_nk)}{(nux - nux_id_nk).abs().item():05.4f},{(lambda x: '-' if x < 0 else '~')(nuy - nuy_id_nk)}{(nuy - nuy_id_nk).abs().item():05.4f}) \quad '
rf'DNU_RK=({(lambda x: '-' if x < 0 else '~')(nux - nux_id)}{(nux - nux_id).abs().item():05.4f},{(lambda x: '-' if x < 0 else '~')(nuy - nuy_id)}{(nuy - nuy_id).abs().item():05.4f}) \quad '
)
ax.text(0.0, 1.075, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'\quad C=({c_id_1k.item():.6f}, {c_id_nk.item():.6f}, {c_id.item():.6f})'
)
ax.text(0.0, 1.00, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
ax.legend(loc='upper right', frameon=False, fontsize=14, ncol=6)
ax.set_ylim(-20, 20)
ay.errorbar(s, 10**6*etax_np_1k, fmt='-', marker='o', color='blue', alpha=0.75, lw=2.0, label=r'1K', markerfacecolor='none', ms=8)
ay.errorbar(s, 10**6*etay_np_1k, fmt='-', marker='o', color='red', alpha=0.75, lw=2.0, label=r'1K', markerfacecolor='none', ms=8)
ay.errorbar(s, 10**6*etax_np_nk, fmt='-', marker='s', color='blue', alpha=0.75, lw=2.0, label=r'NK', markerfacecolor='none', ms=8)
ay.errorbar(s, 10**6*etay_np_nk, fmt='-', marker='s', color='red', alpha=0.75, lw=2.0, label=r'NK', markerfacecolor='none', ms=8)
ay.errorbar(s, 10**6*etax_np, fmt='-', marker='x', color='blue', alpha=0.75, lw=2.0, label=r'RK', ms=8)
ay.errorbar(s, 10**6*etay_np, fmt='-', marker='x', color='red', alpha=0.75, lw=2.0, label=r'RK', ms=8)
ay.set_xlabel('s [m]', fontsize=18)
ay.set_ylabel(r'$\Delta \eta$ [$\mu$m]', fontsize=18)
ay.tick_params(width=2, labelsize=16)
ay.tick_params(axis='x', length=8, direction='in')
ay.tick_params(axis='y', length=8, direction='in')
plt.setp(ax.spines.values(), linewidth=2.0)
plt.setp(ay.spines.values(), linewidth=2.0)
plt.show()
Correction (local & global)
[51]:
# Set section and corresponding objective jacobian, target values and knob names
section = 'S01'
target = ts_twiss[section]
matrix = ms_twiss[section]
nkn = table_nkn[section]
nks = table_nks[section]
[52]:
# Insert ID(s)
error = ring.clone()
error.flatten()
error.insert(ID_RK, error.next(f'MLL_{section}').name, position=CENTER*1.0E-3)
error.splice()
error.describe
[52]:
{'BPM': 168,
'Drift': 745,
'Dipole': 156,
'Quadrupole': 360,
'Corrector': 24,
'Marker': 24,
'Matrix': 1}
[53]:
# Compute tunes (fractional part)
nux_id, nuy_id = tune(error, [], matched=True, limit=1)
[54]:
# Compute dispersion
orbit = torch.tensor(4*[0.0], dtype=dtype)
etaqx_id, etapx_id, etaqy_id, etapy_id = dispersion(error, orbit, [], limit=1)
[55]:
# Compute twiss parameters
ax_id, bx_id, ay_id, by_id = twiss(error, [], matched=True, advance=True, full=False).T
[56]:
# Compute phase advances
mux_id, muy_id = advance(error, [], alignment=False, matched=True).T
[57]:
# Compute coupling
c_id = coupling(error, [])
[58]:
# Compute hromaticity
psi_id = chromaticity(error, [])
[59]:
# Tune shifts
print((nux - nux_id))
print((nuy - nuy_id))
tensor(0.0260, dtype=torch.float64)
tensor(-0.0114, dtype=torch.float64)
[60]:
# Coupling (minimal tune distance)
print(c)
print(c_id)
tensor(0., dtype=torch.float64)
tensor(0.0004, dtype=torch.float64)
[61]:
# Chromaticity
print(psi)
print(psi_id)
tensor([-71.2093, -66.6787], dtype=torch.float64)
tensor([-72.2873, -66.6489], dtype=torch.float64)
[62]:
# Define parametric observable vector
def global_observable(knobs):
kf, kd = knobs
kn = torch.stack(len(nqf)*[kf] + len(nqd)*[kd])
return tune(error, [kn], ('kn', None, nqf + nqd, None), matched=True, limit=1)
def observable_twiss(kn, ks, nkn=table_nkn[section], nks=table_nks[section]):
return twiss(error, [kn, ks], ('kn', None, nkn, None), ('ks', None, nks, None), matched=True, advance=True, full=False, convert=False)
def observable_dispersion(kn, ks, nkn=table_nkn[section], nks=table_nks[section]):
orbit = torch.tensor(4*[0.0], dtype=dtype)
etax, _, etay, _ = dispersion(error, orbit, [kn, ks], ('kn', None, nkn, None), ('ks', None, nks, None))
return torch.stack([etax, etay]).T
def observable(knobs):
kn, ks = torch.split(knobs, [6, 4])
betas = observable_twiss(kn, ks)
etas = observable_dispersion(kn, ks)
return torch.cat([betas.flatten(), etas.flatten()])
[63]:
# Check the residual norm
global_knobs = torch.tensor(2*[0.0], dtype=dtype)
knobs = torch.tensor((6 + 4)*[0.0], dtype=dtype)
print(((global_observable(global_knobs) - global_target)**2).sum())
print(((observable(knobs) - target)**2).sum())
tensor(0.0008, dtype=torch.float64)
tensor(212.9181, dtype=torch.float64)
[64]:
# Optimization loop (local)
# Responce matrix (jacobian)
M = matrix.clone()
# Weighting covariance (sensitivity) matrix
epsilon = 1.0E-9
C = M @ M.T
C = C + epsilon*torch.eye(len(C), dtype=dtype)
# Cholesky decomposition
L = torch.linalg.cholesky(C)
# Whiten response
M = torch.linalg.solve_triangular(L, M, upper=False)
# Additional weights
# Can be used to extra weight selected observables, e.g. tunes
weights = torch.ones(len(M), dtype=dtype)
weights = weights.sqrt()
# Whiten response with additional weights
M = M*weights.unsqueeze(1)
# Iterative correction
lr = 0.75
# Initial value
knobs = torch.tensor((6 + 4)*[0.0], dtype=dtype)
# Correction loop
for _ in range(8):
value = observable(knobs)
residual = target - value
residual = torch.linalg.solve_triangular(L, residual.unsqueeze(-1), upper=False).squeeze(-1)
residual = residual*weights
delta = torch.linalg.lstsq(M, residual, driver="gels").solution
knobs += lr*delta
print(((value - target)**2).sum())
print()
tensor(212.9181, dtype=torch.float64)
tensor(12.3812, dtype=torch.float64)
tensor(1.0971, dtype=torch.float64)
tensor(0.3043, dtype=torch.float64)
tensor(0.2540, dtype=torch.float64)
tensor(0.2509, dtype=torch.float64)
tensor(0.2507, dtype=torch.float64)
tensor(0.2507, dtype=torch.float64)
[65]:

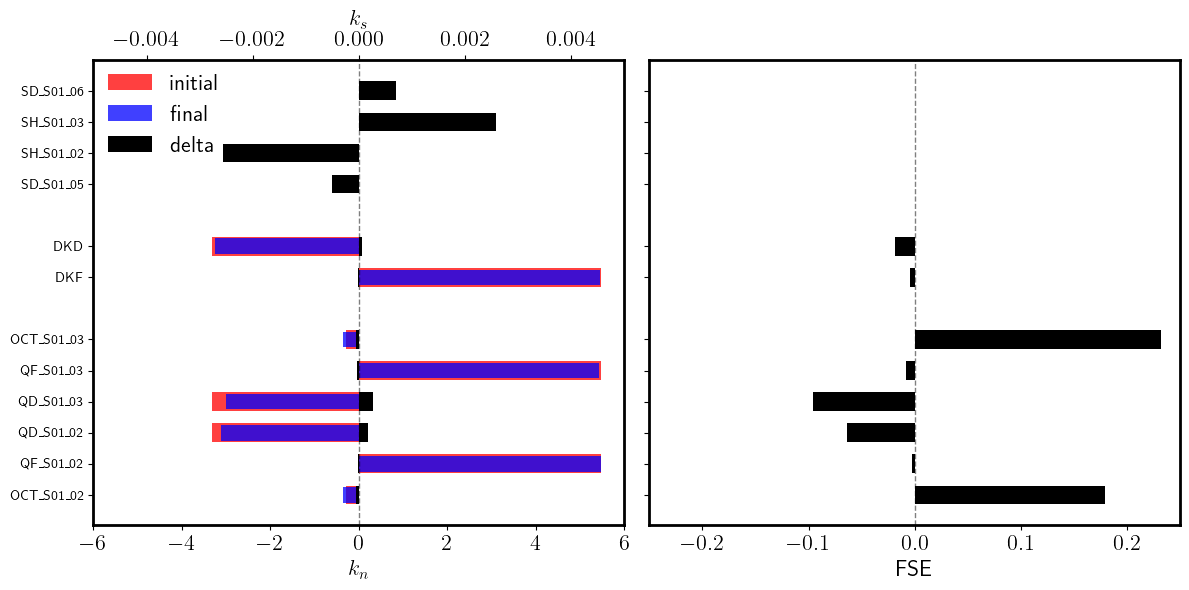

# Knob values
kn, ks = torch.split(knobs, [6, 4])
print(kn.numpy())
print(ks.numpy())
[-0.05267976 0.01083084 0.1489824 0.25584477 -0.02073347 -0.06817617]
[-0.00050177 -0.00256234 0.00257823 0.00069695]
[66]:
# Apply local corrections
error.flatten()
for name, knob in zip(nkn, kn):
error[name].kn = (error[name].kn + knob).item()
for name, knob in zip(nks, ks):
error[name].ks = (error[name].ks + knob).item()
error.splice()
[67]:
# Optimization loop (global)
# Responce matrix (jacobian)
M = global_matrix.clone()
# Weighting covariance (sensitivity) matrix
epsilon = 1.0E-9
C = M @ M.T
C = C + epsilon*torch.eye(len(C), dtype=dtype)
# Cholesky decomposition
L = torch.linalg.cholesky(C)
# Whiten response
M = torch.linalg.solve_triangular(L, M, upper=False)
# Additional weights
# Can be used to extra weight selected observables, e.g. tunes
weights = torch.ones(len(M), dtype=dtype)
weights = weights.sqrt()
# Whiten response with additional weights
M = M*weights.unsqueeze(1)
# Iterative correction
lr = 0.75
# Initial value
global_knobs = torch.tensor(2*[0.0], dtype=dtype)
# Correction loop
for _ in range(8):
value = global_observable(global_knobs)
residual = global_target - value
if torch.all(residual.abs() < 1.0E-3):
break
residual = torch.linalg.solve_triangular(L, residual.unsqueeze(-1), upper=False).squeeze(-1)
residual = residual*weights
delta = torch.linalg.lstsq(M, residual, driver="gels").solution
global_knobs += lr*delta
print(((value - global_target)**2).sum())
print()
tensor(0.0001, dtype=torch.float64)
tensor(9.1701e-06, dtype=torch.float64)
[68]:
# Knob values
kf, kd = global_knobs
print(kd.numpy())
print(kf.numpy())
0.06194265210737164
-0.02270845314359461
[69]:
# Apply final corrections
error.flatten()
for name in nqd:
error[name].kn = (error[name].kn + kd).item()
for name in nqf:
error[name].kn = (error[name].kn + kf).item()
error.splice()
[70]:
# Check
print(((global_observable(0.0*global_knobs) - global_target)**2).sum())
print(((observable(0.0*knobs) - target)**2).sum())
tensor(7.9237e-07, dtype=torch.float64)
tensor(0.3848, dtype=torch.float64)
[71]:
# Compute tunes (fractional part)
nux_result, nuy_result = tune(error, [], matched=True, limit=1)
[72]:
# Compute dispersion
orbit = torch.tensor(4*[0.0], dtype=dtype)
etaqx_result, etapx_result, etaqy_result, etapy_result = dispersion(error, orbit, [], limit=1)
[73]:
# Compute twiss parameters
ax_result, bx_result, ay_result, by_result = twiss(error, [], matched=True, advance=True, full=False).T
[74]:
# Compute phase advances
mux_result, muy_result = advance(error, [], alignment=False, matched=True).T
[75]:
# Compute coupling
c_result = coupling(error, [])
[76]:
# Compute chromaticity
psi_result = chromaticity(error, [])
[77]:
# Tune shifts
print((nux - nux_result))
print((nuy - nuy_result))
print()
print((nux - nux_result))
print((nuy - nuy_result))
print()
tensor(-0.0004, dtype=torch.float64)
tensor(-0.0008, dtype=torch.float64)
tensor(-0.0004, dtype=torch.float64)
tensor(-0.0008, dtype=torch.float64)
[78]:
# Coupling (minimal tune distance)
print(c)
print(c_id)
print(c_result)
tensor(0., dtype=torch.float64)
tensor(0.0004, dtype=torch.float64)
tensor(4.4992e-06, dtype=torch.float64)
[79]:
# Chromaticity
print(psi)
print(psi_id)
print(psi_result)
tensor([-71.2093, -66.6787], dtype=torch.float64)
tensor([-72.2873, -66.6489], dtype=torch.float64)
tensor([-71.1748, -66.7275], dtype=torch.float64)
[80]:

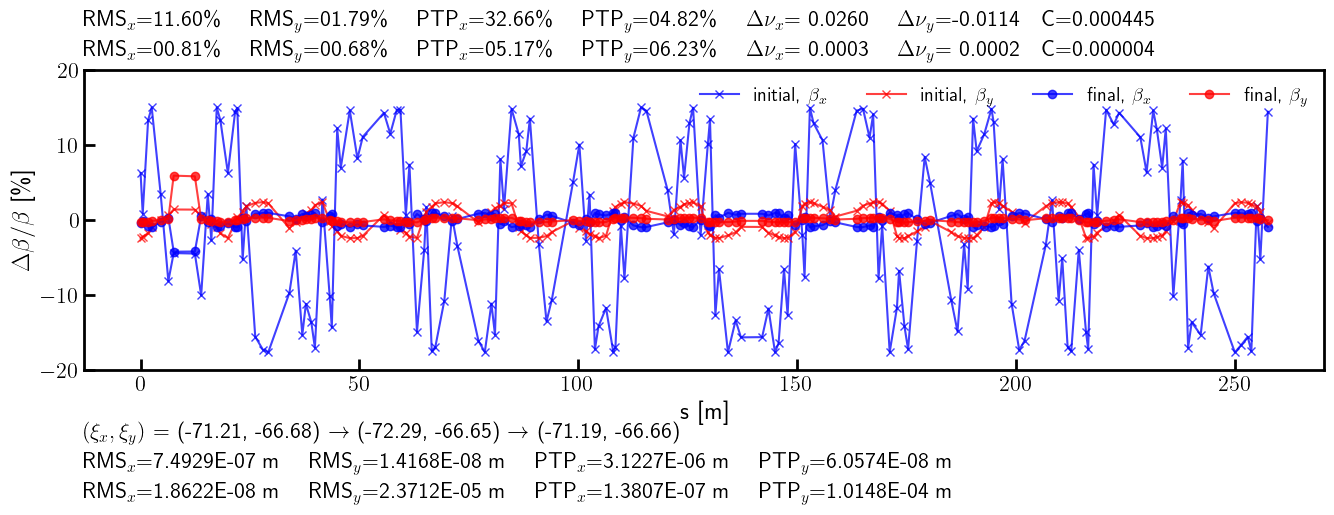

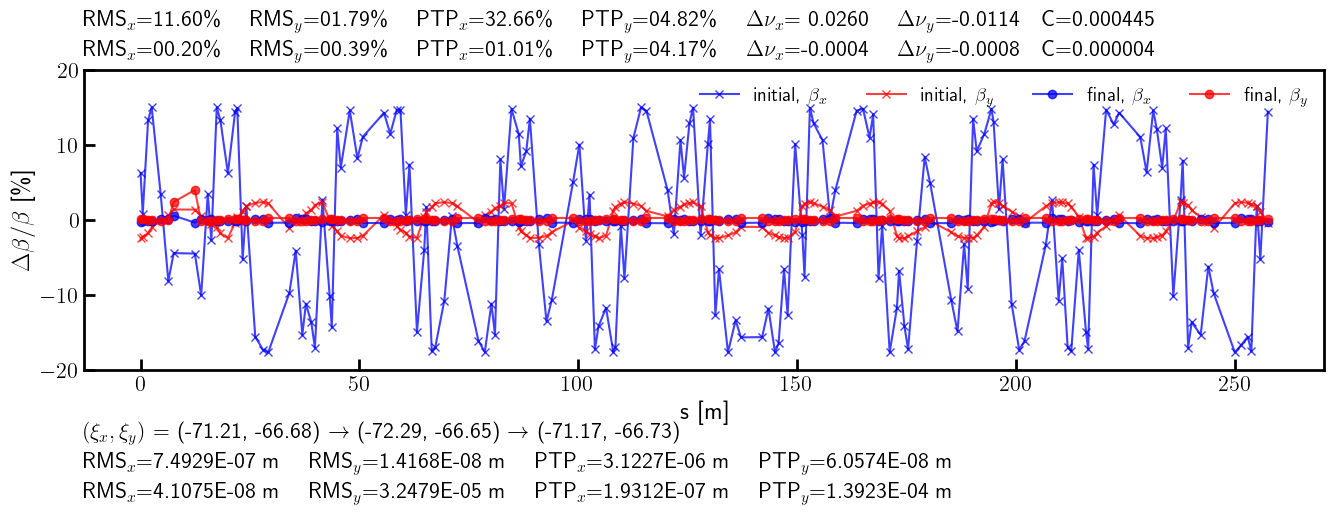

# Beta-beating
(psi_x, psi_y) = psi
(psi_id_x, psi_id_y) = psi_id
(psi_result_x, psi_result_y) =psi_result
bx_ref_bb = 100.0*(bx - bx_id) / bx
by_ref_bb = 100.0*(by - by_id) / by
bx_res_bb = 100.0*(bx - bx_result)/ bx
by_res_bb = 100.0*(by - by_result)/ by
def rms(x):
return (x**2).mean().sqrt()
rms_x_ref = rms(bx_ref_bb).item()
ptp_x_ref = (bx_ref_bb.max() - bx_ref_bb.min()).item()
rms_y_ref = rms(by_ref_bb).item()
ptp_y_ref = (by_ref_bb.max() - by_ref_bb.min()).item()
rms_x_res = rms(bx_res_bb).item()
ptp_x_res = (bx_res_bb.max() - bx_res_bb.min()).item()
rms_y_res = rms(by_res_bb).item()
ptp_y_res = (by_res_bb.max() - by_res_bb.min()).item()
s = ring.locations().cpu().numpy()
bx_ref_np = bx_ref_bb.cpu().numpy()
by_ref_np = by_ref_bb.cpu().numpy()
bx_res_np = bx_res_bb.cpu().numpy()
by_res_np = by_res_bb.cpu().numpy()
etax_ref = etaqx - etaqx_id
etay_ref = etaqy - etaqy_id
etax_res = etaqx - etaqx_result
etay_res = etaqy - etaqy_result
rms_etax_ref = rms(etax_ref).item()
ptp_etax_ref = (etax_ref.max() - etax_ref.min()).item()
rms_etay_ref = rms(etay_ref).item()
ptp_etay_ref = (etay_ref.max() - etay_ref.min()).item()
rms_etax_res = rms(etax_res).item()
ptp_etax_res = (etax_res.max() - etax_res.min()).item()
rms_etay_res = rms(etay_res).item()
ptp_etay_res = (etay_res.max() - etay_res.min()).item()
etax_ref_np = etax_ref.cpu().numpy()
etay_ref_np = etay_ref.cpu().numpy()
etax_res_np = etax_res.cpu().numpy()
etay_res_np = etay_res.cpu().numpy()
fig, ax = plt.subplots(
1, 1, figsize=(16, 6),
sharex=True,
gridspec_kw={'hspace': 0.3}
)
fig.subplots_adjust(top=0.85, bottom=0.35)
ax.errorbar(s, bx_ref_np, fmt='-', marker='x', color='blue', alpha=0.75, lw=1.5, label=r'initial, $\beta_x$')
ax.errorbar(s, by_ref_np, fmt='-', marker='x', color='red', alpha=0.75, lw=1.5, label=r'initial, $\beta_y$')
ax.errorbar(s, bx_res_np, fmt='-', marker='o', color='blue', alpha=0.75, lw=1.5, label=r'final, $\beta_x$')
ax.errorbar(s, by_res_np, fmt='-', marker='o', color='red', alpha=0.75, lw=1.5, label=r'final, $\beta_y$')
ax.set_xlabel('s [m]', fontsize=18)
ax.set_ylabel(r'$\Delta \beta / \beta$ [\%]', fontsize=18)
ax.tick_params(width=2, labelsize=16)
ax.tick_params(axis='x', length=8, direction='in')
ax.tick_params(axis='y', length=8, direction='in')
title = (
rf'RMS$_x$={rms_x_ref:05.2f}\% \quad RMS$_y$={rms_y_ref:05.2f}\% \quad '
rf'PTP$_x$={ptp_x_ref:05.2f}\% \quad PTP$_y$={ptp_y_ref:05.2f}\% \quad '
rf'$\Delta \nu_x$={(lambda x: '-' if x < 0 else '~')(nux - nux_id)}{(nux - nux_id).abs().item():.4f} \quad $\Delta \nu_y$={(lambda x: '-' if x < 0 else '~')(nuy - nuy_id)}{(nuy - nuy_id).abs().item():.4f}'
rf'\quad C={c_id.item():.6f}'
)
ax.text(0.0, 1.125, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_x_res:05.2f}\% \quad RMS$_y$={rms_y_res:05.2f}\% \quad '
rf'PTP$_x$={ptp_x_res:05.2f}\% \quad PTP$_y$={ptp_y_res:05.2f}\% \quad '
rf'$\Delta \nu_x$={(lambda x: '-' if x < 0 else '~')(nux - nux_result)}{(nux - nux_result).abs().item():.4f} \quad $\Delta \nu_y$={(lambda x: '-' if x < 0 else '~')(nuy - nuy_result)}{(nuy - nuy_result).abs().item():.4f}'
rf'\quad C={c_result.item():.6f}'
)
ax.text(0.0, 1.025, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'$(\xi_x, \xi_y)$ = ({psi_x.item():.2f}, {psi_y.item():.2f}) $\to$ ({psi_id_x.item():.2f}, {psi_id_y.item():.2f}) $\to$ ({psi_result_x.item():.2f}, {psi_result_y.item():.2f})'
)
ax.text(0.0, -0.25 - 0*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_etax_ref:.4E} m \quad RMS$_y$={rms_etay_ref:.4E} m \quad '
rf'PTP$_x$={ptp_etax_ref:.4E} m \quad PTP$_y$={ptp_etay_ref:.4E} m \quad '
)
ax.text(0.0, -0.25 - 1*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_etax_res:.4E} m \quad RMS$_y$={rms_etay_res:.4E} m \quad '
rf'PTP$_x$={ptp_etax_res:.4E} m \quad PTP$_y$={ptp_etay_res:.4E} m \quad '
)
ax.text(0.0, -0.25 - 2*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
ax.legend(loc='upper right', frameon=False, fontsize=14, ncol=4)
ax.set_ylim(-20, 20)
plt.setp(ax.spines.values(), linewidth=2.0)
plt.show()
[81]:
# Initial and final values
ring.flatten()
kni = {name: ring[name].kn.item() for name in nkn}
ksi = {name: ring[name].ks.item() for name in nks}
kfi = {name: ring[name].kn.item() for name in nqf}
kdi = {name: ring[name].kn.item() for name in nqd}
ring.splice()
error.flatten()
knf = {name: error[name].kn.item() for name in nkn}
ksf = {name: error[name].ks.item() for name in nks}
kff = {name: error[name].kn.item() for name in nqf}
kdf = {name: error[name].kn.item() for name in nqd}
error.splice()
[82]:
# Global
gkfi = [kfi[name] for name in kfi if name not in nkn]
gkdi = [kdi[name] for name in kdi if name not in nkn]
gkfi, *_ = gkfi
gkdi, *_ = gkdi
gkff = [kff[name] for name in kff if name not in nkn]
gkdf = [kdf[name] for name in kdf if name not in nkn]
gkff, *_ = gkff
gkdf, *_ = gkdf
dkf = [(kff[name] - kfi[name]) for name in kfi if name not in nkn]
dkd = [(kdf[name] - kdi[name]) for name in kdi if name not in nkn]
dkf_abs, *_ = dkf
dkd_abs, *_ = dkd
gk_abs = {'DKF': dkf_abs, 'DKD': dkd_abs}
dkf = [(kff[name]/kfi[name] - 1) for name in kfi if name not in nkn]
dkd = [(kdf[name]/kdi[name] - 1) for name in kdi if name not in nkn]
dkf_fse, *_ = dkf
dkd_fse, *_ = dkd
gk_fse = {'DKF': dkf_fse, 'DKD': dkd_fse}
[83]:
# Local
dkn_fse = {name: knf[name]/kni[name] - 1 for name in kni}
dkn_abs = {name: knf[name] - kni[name]for name in kni}
dks_fse = {name: 0 for name in ksi}
dks_abs = {name: ksf[name] - ksi[name] for name in ksi}
[84]:

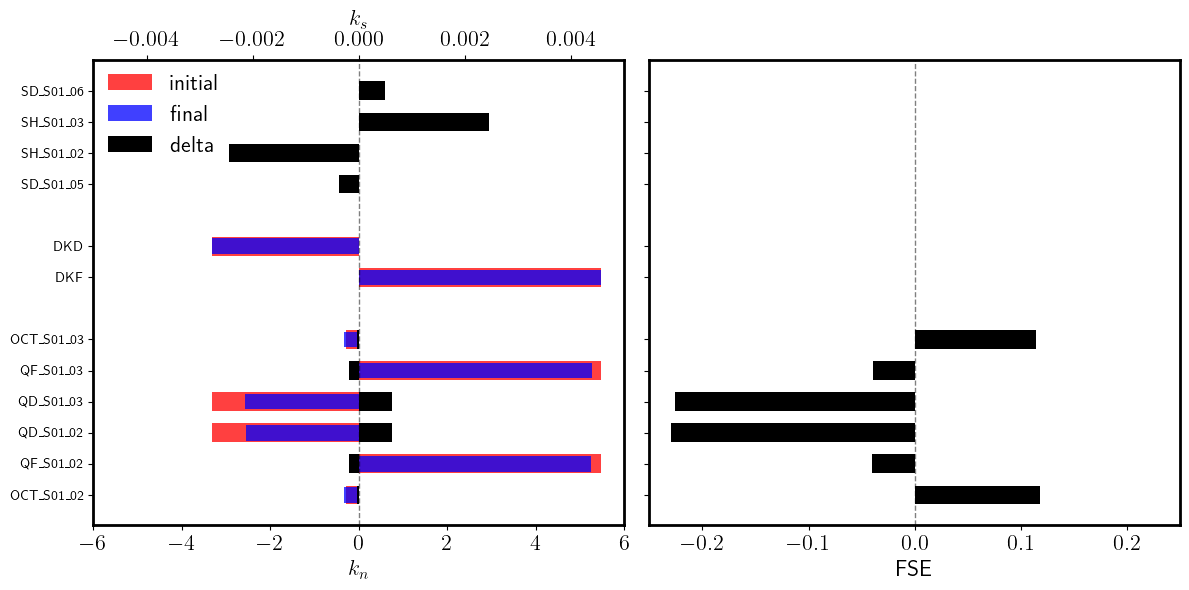

import numpy as np
import matplotlib.pyplot as plt
gap = 1
n_kn = len(dkn_abs)
n_dk = len(gk_abs)
n_ks = len(dks_abs)
y_kn = np.arange(n_kn)
y_dk = np.arange(n_dk) + n_kn + gap
y_ks = np.arange(n_ks) + n_kn + n_dk + 2*gap
yticks = np.concatenate([y_kn, y_dk, y_ks])
yticklabels = [*kni.keys()] + [*gk_abs.keys()] + [*ksi.keys()]
fig, (ax_abs, ax_fse) = plt.subplots(1, 2, figsize=(12, 6), sharey=True)
ax_abs.barh(y_dk, [gkfi, gkdi], height=0.6, color='red', alpha=0.75, label='initial')
ax_abs.barh(y_dk, [gkff, gkdf], height=0.5, color='blue', alpha=0.75, label='final')
ax_abs.barh(y_dk, [gk_abs['DKF'], gk_abs['DKD']], height=0.6, color='black', alpha=1, label='delta')
ax_abs.barh(y_kn, kni.values(), height=0.6, color='red', alpha=0.75)
ax_abs.barh(y_kn, knf.values(), height=0.5, color='blue', alpha=0.75)
ax_abs.barh(y_kn, list(dkn_abs.values()), height=0.6, color='black', alpha=1)
ax_abs.legend(loc=(0.01, 0.775), frameon=False, fontsize=16, ncol=1)
ax_abs.set_xlim(-6, 6)
ax_abs.set_xlabel(r'$k_n$', fontsize=16)
ax_abs.tick_params(axis='x', labelsize=16)
ax_abs = ax_abs.twiny()
ax_abs.barh(y_ks, ksi.values(), height=0.6, color='red', alpha=0.75)
ax_abs.barh(y_ks, ksf.values(), height=0.5, color='blue', alpha=0.75)
ax_abs.barh(y_ks, list(dks_abs.values()), height=0.6, color='black', alpha=1)
ax_abs.set_xlim(-0.005, 0.005)
ax_abs.set_yticks(yticks)
ax_abs.set_yticklabels(yticklabels, fontsize=16)
ax_abs.axvline(0.0, color='black', linewidth=1.0, linestyle='--', alpha=0.5)
ax_abs.set_xlabel(r'$k_s$', fontsize=16)
ax_abs.tick_params(axis='x', labelsize=16)
ax_abs.tick_params(axis='y', labelsize=16)
ax_fse.barh(y_dk, gk_fse.values(), height=0.6, color='black', alpha=1)
ax_fse.barh(y_kn, dkn_fse.values(), height=0.6, color='black', alpha=1)
ax_fse.set_xlim(-25/100, 25/100)
ax_fse.axvline(0.0, color='black', linewidth=1.0, linestyle='--', alpha=0.5)
ax_fse.set_xlabel(r'FSE', fontsize=16)
ax_fse.tick_params(axis='x', labelsize=16)
ax_fse.tick_params(axis='y', labelsize=16)
plt.setp(ax_abs.spines.values(), linewidth=2.0)
plt.setp(ax_fse.spines.values(), linewidth=2.0)
plt.tight_layout()
plt.show()
Correction (local)
[85]:
# Set section and corresponding objective jacobian, target values and knob names
section = 'S01'
target = ts_orbit[section]
matrix = ms_orbit[section]
nkn = table_nkn[section]
nks = table_nks[section]
[86]:
# Insert ID(s)
error = ring.clone()
error.flatten()
error.insert(ID_RK, error.next(f'MLL_{section}').name, position=CENTER*1.0E-3)
error.splice()
error.describe
[86]:
{'BPM': 168,
'Drift': 745,
'Dipole': 156,
'Quadrupole': 360,
'Corrector': 24,
'Marker': 24,
'Matrix': 1}
[87]:
# Compute tunes (fractional part)
nux_id, nuy_id = tune(error, [], matched=True, limit=1)
[88]:
# Compute dispersion
orbit = torch.tensor(4*[0.0], dtype=dtype)
etaqx_id, etapx_id, etaqy_id, etapy_id = dispersion(error, orbit, [], limit=1)
[89]:
# Compute twiss parameters
ax_id, bx_id, ay_id, by_id = twiss(error, [], matched=True, advance=True, full=False).T
[90]:
# Compute phase advances
mux_id, muy_id = advance(error, [], alignment=False, matched=True).T
[91]:
# Compute coupling
c_id = coupling(error, [])
[92]:
# Compute hromaticity
psi_id = chromaticity(error, [])
[93]:
# Tune shifts
print((nux - nux_id))
print((nuy - nuy_id))
tensor(0.0260, dtype=torch.float64)
tensor(-0.0114, dtype=torch.float64)
[94]:
# Coupling (minimal tune distance)
print(c)
print(c_id)
tensor(0., dtype=torch.float64)
tensor(0.0004, dtype=torch.float64)
[95]:
# Chromaticity
print(psi)
print(psi_id)
tensor([-71.2093, -66.6787], dtype=torch.float64)
tensor([-72.2873, -66.6489], dtype=torch.float64)
[96]:
# Define parametric observable vector
def global_observable(knobs):
kf, kd = knobs
kn = torch.stack(len(nqf)*[kf] + len(nqd)*[kd])
return tune(error, [kn], ('kn', None, nqf + nqd, None), matched=True, limit=1)
def observable_orm(kn, ks, nkn, nks):
orm = ORM(error, orbit, [kn, ks], ('kn', None, nkn, None), ('ks', None, nks, None), limit=1)
return orm
def observable(knobs):
kn, ks = torch.split(knobs, [6, 4])
orm = observable_orm(kn, ks, nkn, nks)
return orm.flatten()
[97]:
# Check the residual norm
global_knobs = torch.tensor(2*[0.0], dtype=dtype)
knobs = torch.tensor((6 + 4)*[0.0], dtype=dtype)
print(((global_observable(global_knobs) - global_target)**2).sum())
print(((observable(knobs) - target)**2).sum())
tensor(0.0008, dtype=torch.float64)
tensor(1498.9240, dtype=torch.float64)
[98]:
# Optimization loop (local)
# Responce matrix (jacobian)
M = matrix.clone()
# Weighting covariance (sensitivity) matrix
epsilon = 1.0E-9
C = M @ M.T
C = C + epsilon*torch.eye(len(C), dtype=dtype)
# Cholesky decomposition
L = torch.linalg.cholesky(C)
# Whiten response
M = torch.linalg.solve_triangular(L, M, upper=False)
# Additional weights
# Can be used to extra weight selected observables, e.g. tunes
weights = torch.ones(len(M), dtype=dtype)
weights = weights.sqrt()
# Whiten response with additional weights
M = M*weights.unsqueeze(1)
# Iterative correction
lr = 0.75
# Initial value
knobs = torch.tensor((6 + 4)*[0.0], dtype=dtype)
# Correction loop
for _ in range(8):
value = observable(knobs)
residual = target - value
residual = torch.linalg.solve_triangular(L, residual.unsqueeze(-1), upper=False).squeeze(-1)
residual = residual*weights
delta = torch.linalg.lstsq(M, residual, driver="gels").solution
knobs += lr*delta
print(((value - target)**2).sum())
print()
tensor(1498.9240, dtype=torch.float64)
tensor(94.4720, dtype=torch.float64)
tensor(27.3701, dtype=torch.float64)
tensor(14.5888, dtype=torch.float64)
tensor(11.7572, dtype=torch.float64)
tensor(11.2675, dtype=torch.float64)
tensor(11.2024, dtype=torch.float64)
tensor(11.1966, dtype=torch.float64)
[99]:
# Knob values
kn, ks = torch.split(knobs, [6, 4])
print(kn.numpy())
print(ks.numpy())
[-0.03471056 -0.22054716 0.76101755 0.74900005 -0.21673683 -0.03342773]
[-0.00037728 -0.0024463 0.00244978 0.00049938]
[100]:
# Apply local corrections
error.flatten()
for name, knob in zip(nkn, kn):
error[name].kn = (error[name].kn + knob).item()
for name, knob in zip(nks, ks):
error[name].ks = (error[name].ks + knob).item()
error.splice()
[101]:
# Optimization loop (global)
# Responce matrix (jacobian)
M = global_matrix.clone()
# Weighting covariance (sensitivity) matrix
epsilon = 1.0E-9
C = M @ M.T
C = C + epsilon*torch.eye(len(C), dtype=dtype)
# Cholesky decomposition
L = torch.linalg.cholesky(C)
# Whiten response
M = torch.linalg.solve_triangular(L, M, upper=False)
# Additional weights
# Can be used to extra weight selected observables, e.g. tunes
weights = torch.ones(len(M), dtype=dtype)
weights = weights.sqrt()
# Whiten response with additional weights
M = M*weights.unsqueeze(1)
# Iterative correction
lr = 0.75
# Initial value
global_knobs = torch.tensor(2*[0.0], dtype=dtype)
# Correction loop
for _ in range(8):
value = global_observable(global_knobs)
residual = global_target - value
if torch.all(residual.abs() < 1.0E-3):
break
residual = torch.linalg.solve_triangular(L, residual.unsqueeze(-1), upper=False).squeeze(-1)
residual = residual*weights
delta = torch.linalg.lstsq(M, residual, driver="gels").solution
global_knobs += lr*delta
print(((value - global_target)**2).sum())
print()
[102]:
# Knob values
kf, kd = global_knobs
print(kd.numpy())
print(kf.numpy())
0.0
0.0
[103]:
# Apply final corrections
error.flatten()
for name in nqd:
error[name].kn = (error[name].kn + kd).item()
for name in nqf:
error[name].kn = (error[name].kn + kf).item()
error.splice()
[104]:
# Check
print(((global_observable(0.0*global_knobs) - global_target)**2).sum())
print(((observable(0.0*knobs) - target)**2).sum())
tensor(1.1095e-07, dtype=torch.float64)
tensor(11.1968, dtype=torch.float64)
[105]:
# Compute tunes (fractional part)
nux_result, nuy_result = tune(error, [], matched=True, limit=1)
[106]:
# Compute dispersion
orbit = torch.tensor(4*[0.0], dtype=dtype)
etaqx_result, etapx_result, etaqy_result, etapy_result = dispersion(error, orbit, [], limit=1)
[107]:
# Compute twiss parameters
ax_result, bx_result, ay_result, by_result = twiss(error, [], matched=True, advance=True, full=False).T
[108]:
# Compute phase advances
mux_result, muy_result = advance(error, [], alignment=False, matched=True).T
[109]:
# Compute coupling
c_result = coupling(error, [])
[110]:
# Compute chromaticity
psi_result = chromaticity(error, [])
[111]:
# Tune shifts
print((nux - nux_result))
print((nuy - nuy_result))
print()
print((nux - nux_result))
print((nuy - nuy_result))
print()
tensor(0.0003, dtype=torch.float64)
tensor(0.0002, dtype=torch.float64)
tensor(0.0003, dtype=torch.float64)
tensor(0.0002, dtype=torch.float64)
[112]:
# Coupling (minimal tune distance)
print(c)
print(c_id)
print(c_result)
tensor(0., dtype=torch.float64)
tensor(0.0004, dtype=torch.float64)
tensor(4.1525e-06, dtype=torch.float64)
[113]:
# Chromaticity
print(psi)
print(psi_id)
print(psi_result)
tensor([-71.2093, -66.6787], dtype=torch.float64)
tensor([-72.2873, -66.6489], dtype=torch.float64)
tensor([-71.1939, -66.6599], dtype=torch.float64)
[114]:
# Beta-beating
(psi_x, psi_y) = psi
(psi_id_x, psi_id_y) = psi_id
(psi_result_x, psi_result_y) =psi_result
bx_ref_bb = 100.0*(bx - bx_id) / bx
by_ref_bb = 100.0*(by - by_id) / by
bx_res_bb = 100.0*(bx - bx_result)/ bx
by_res_bb = 100.0*(by - by_result)/ by
def rms(x):
return (x**2).mean().sqrt()
rms_x_ref = rms(bx_ref_bb).item()
ptp_x_ref = (bx_ref_bb.max() - bx_ref_bb.min()).item()
rms_y_ref = rms(by_ref_bb).item()
ptp_y_ref = (by_ref_bb.max() - by_ref_bb.min()).item()
rms_x_res = rms(bx_res_bb).item()
ptp_x_res = (bx_res_bb.max() - bx_res_bb.min()).item()
rms_y_res = rms(by_res_bb).item()
ptp_y_res = (by_res_bb.max() - by_res_bb.min()).item()
s = ring.locations().cpu().numpy()
bx_ref_np = bx_ref_bb.cpu().numpy()
by_ref_np = by_ref_bb.cpu().numpy()
bx_res_np = bx_res_bb.cpu().numpy()
by_res_np = by_res_bb.cpu().numpy()
etax_ref = etaqx - etaqx_id
etay_ref = etaqy - etaqy_id
etax_res = etaqx - etaqx_result
etay_res = etaqy - etaqy_result
rms_etax_ref = rms(etax_ref).item()
ptp_etax_ref = (etax_ref.max() - etax_ref.min()).item()
rms_etay_ref = rms(etay_ref).item()
ptp_etay_ref = (etay_ref.max() - etay_ref.min()).item()
rms_etax_res = rms(etax_res).item()
ptp_etax_res = (etax_res.max() - etax_res.min()).item()
rms_etay_res = rms(etay_res).item()
ptp_etay_res = (etay_res.max() - etay_res.min()).item()
etax_ref_np = etax_ref.cpu().numpy()
etay_ref_np = etay_ref.cpu().numpy()
etax_res_np = etax_res.cpu().numpy()
etay_res_np = etay_res.cpu().numpy()
fig, ax = plt.subplots(
1, 1, figsize=(16, 6),
sharex=True,
gridspec_kw={'hspace': 0.3}
)
fig.subplots_adjust(top=0.85, bottom=0.35)
ax.errorbar(s, bx_ref_np, fmt='-', marker='x', color='blue', alpha=0.75, lw=1.5, label=r'initial, $\beta_x$')
ax.errorbar(s, by_ref_np, fmt='-', marker='x', color='red', alpha=0.75, lw=1.5, label=r'initial, $\beta_y$')
ax.errorbar(s, bx_res_np, fmt='-', marker='o', color='blue', alpha=0.75, lw=1.5, label=r'final, $\beta_x$')
ax.errorbar(s, by_res_np, fmt='-', marker='o', color='red', alpha=0.75, lw=1.5, label=r'final, $\beta_y$')
ax.set_xlabel('s [m]', fontsize=18)
ax.set_ylabel(r'$\Delta \beta / \beta$ [\%]', fontsize=18)
ax.tick_params(width=2, labelsize=16)
ax.tick_params(axis='x', length=8, direction='in')
ax.tick_params(axis='y', length=8, direction='in')
title = (
rf'RMS$_x$={rms_x_ref:05.2f}\% \quad RMS$_y$={rms_y_ref:05.2f}\% \quad '
rf'PTP$_x$={ptp_x_ref:05.2f}\% \quad PTP$_y$={ptp_y_ref:05.2f}\% \quad '
rf'$\Delta \nu_x$={(lambda x: '-' if x < 0 else '~')(nux - nux_id)}{(nux - nux_id).abs().item():.4f} \quad $\Delta \nu_y$={(lambda x: '-' if x < 0 else '~')(nuy - nuy_id)}{(nuy - nuy_id).abs().item():.4f}'
rf'\quad C={c_id.item():.6f}'
)
ax.text(0.0, 1.125, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_x_res:05.2f}\% \quad RMS$_y$={rms_y_res:05.2f}\% \quad '
rf'PTP$_x$={ptp_x_res:05.2f}\% \quad PTP$_y$={ptp_y_res:05.2f}\% \quad '
rf'$\Delta \nu_x$={(lambda x: '-' if x < 0 else '~')(nux - nux_result)}{(nux - nux_result).abs().item():.4f} \quad $\Delta \nu_y$={(lambda x: '-' if x < 0 else '~')(nuy - nuy_result)}{(nuy - nuy_result).abs().item():.4f}'
rf'\quad C={c_result.item():.6f}'
)
ax.text(0.0, 1.025, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'$(\xi_x, \xi_y)$ = ({psi_x.item():.2f}, {psi_y.item():.2f}) $\to$ ({psi_id_x.item():.2f}, {psi_id_y.item():.2f}) $\to$ ({psi_result_x.item():.2f}, {psi_result_y.item():.2f})'
)
ax.text(0.0, -0.25 - 0*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_etax_ref:.4E} m \quad RMS$_y$={rms_etay_ref:.4E} m \quad '
rf'PTP$_x$={ptp_etax_ref:.4E} m \quad PTP$_y$={ptp_etay_ref:.4E} m \quad '
)
ax.text(0.0, -0.25 - 1*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
title = (
rf'RMS$_x$={rms_etax_res:.4E} m \quad RMS$_y$={rms_etay_res:.4E} m \quad '
rf'PTP$_x$={ptp_etax_res:.4E} m \quad PTP$_y$={ptp_etay_res:.4E} m \quad '
)
ax.text(0.0, -0.25 - 2*0.1, title, transform=ax.transAxes, ha='left', va='bottom', fontsize=16, fontfamily='monospace')
ax.legend(loc='upper right', frameon=False, fontsize=14, ncol=4)
ax.set_ylim(-20, 20)
plt.setp(ax.spines.values(), linewidth=2.0)
plt.show()
[115]:
# Initial and final values
ring.flatten()
kni = {name: ring[name].kn.item() for name in nkn}
ksi = {name: ring[name].ks.item() for name in nks}
kfi = {name: ring[name].kn.item() for name in nqf}
kdi = {name: ring[name].kn.item() for name in nqd}
ring.splice()
error.flatten()
knf = {name: error[name].kn.item() for name in nkn}
ksf = {name: error[name].ks.item() for name in nks}
kff = {name: error[name].kn.item() for name in nqf}
kdf = {name: error[name].kn.item() for name in nqd}
error.splice()
[116]:
# Global
gkfi = [kfi[name] for name in kfi if name not in nkn]
gkdi = [kdi[name] for name in kdi if name not in nkn]
gkfi, *_ = gkfi
gkdi, *_ = gkdi
gkff = [kff[name] for name in kff if name not in nkn]
gkdf = [kdf[name] for name in kdf if name not in nkn]
gkff, *_ = gkff
gkdf, *_ = gkdf
dkf = [(kff[name] - kfi[name]) for name in kfi if name not in nkn]
dkd = [(kdf[name] - kdi[name]) for name in kdi if name not in nkn]
dkf_abs, *_ = dkf
dkd_abs, *_ = dkd
gk_abs = {'DKF': dkf_abs, 'DKD': dkd_abs}
dkf = [(kff[name]/kfi[name] - 1) for name in kfi if name not in nkn]
dkd = [(kdf[name]/kdi[name] - 1) for name in kdi if name not in nkn]
dkf_fse, *_ = dkf
dkd_fse, *_ = dkd
gk_fse = {'DKF': dkf_fse, 'DKD': dkd_fse}
[117]:
# Local
dkn_fse = {name: knf[name]/kni[name] - 1 for name in kni}
dkn_abs = {name: knf[name] - kni[name]for name in kni}
dks_fse = {name: 0 for name in ksi}
dks_abs = {name: ksf[name] - ksi[name] for name in ksi}
[118]:
import numpy as np
import matplotlib.pyplot as plt
gap = 1
n_kn = len(dkn_abs)
n_dk = len(gk_abs)
n_ks = len(dks_abs)
y_kn = np.arange(n_kn)
y_dk = np.arange(n_dk) + n_kn + gap
y_ks = np.arange(n_ks) + n_kn + n_dk + 2*gap
yticks = np.concatenate([y_kn, y_dk, y_ks])
yticklabels = [*kni.keys()] + [*gk_abs.keys()] + [*ksi.keys()]
fig, (ax_abs, ax_fse) = plt.subplots(1, 2, figsize=(12, 6), sharey=True)
ax_abs.barh(y_dk, [gkfi, gkdi], height=0.6, color='red', alpha=0.75, label='initial')
ax_abs.barh(y_dk, [gkff, gkdf], height=0.5, color='blue', alpha=0.75, label='final')
ax_abs.barh(y_dk, [gk_abs['DKF'], gk_abs['DKD']], height=0.6, color='black', alpha=1, label='delta')
ax_abs.barh(y_kn, kni.values(), height=0.6, color='red', alpha=0.75)
ax_abs.barh(y_kn, knf.values(), height=0.5, color='blue', alpha=0.75)
ax_abs.barh(y_kn, list(dkn_abs.values()), height=0.6, color='black', alpha=1)
ax_abs.legend(loc=(0.01, 0.775), frameon=False, fontsize=16, ncol=1)
ax_abs.set_xlim(-6, 6)
ax_abs.set_xlabel(r'$k_n$', fontsize=16)
ax_abs.tick_params(axis='x', labelsize=16)
ax_abs = ax_abs.twiny()
ax_abs.barh(y_ks, ksi.values(), height=0.6, color='red', alpha=0.75)
ax_abs.barh(y_ks, ksf.values(), height=0.5, color='blue', alpha=0.75)
ax_abs.barh(y_ks, list(dks_abs.values()), height=0.6, color='black', alpha=1)
ax_abs.set_xlim(-0.005, 0.005)
ax_abs.set_yticks(yticks)
ax_abs.set_yticklabels(yticklabels, fontsize=16)
ax_abs.axvline(0.0, color='black', linewidth=1.0, linestyle='--', alpha=0.5)
ax_abs.set_xlabel(r'$k_s$', fontsize=16)
ax_abs.tick_params(axis='x', labelsize=16)
ax_abs.tick_params(axis='y', labelsize=16)
ax_fse.barh(y_dk, gk_fse.values(), height=0.6, color='black', alpha=1)
ax_fse.barh(y_kn, dkn_fse.values(), height=0.6, color='black', alpha=1)
ax_fse.set_xlim(-25/100, 25/100)
ax_fse.axvline(0.0, color='black', linewidth=1.0, linestyle='--', alpha=0.5)
ax_fse.set_xlabel(r'FSE', fontsize=16)
ax_fse.tick_params(axis='x', labelsize=16)
ax_fse.tick_params(axis='y', labelsize=16)
plt.setp(ax_abs.spines.values(), linewidth=2.0)
plt.setp(ax_fse.spines.values(), linewidth=2.0)
plt.tight_layout()
plt.show()
